Delta AESFill AF4 ā 12 Machine Manual 23/58 Setup
6. Setup for Machine with Conveyor and Gate Indexing System
**NOTE: The image contain up to 12 nuzzle and pump, but the setup steps are the same if the machine contains 1 or 12 pumps.
Neck Clamps (Optional) 6.1
The AESFill machine is equipped with neck clamps that allow
each bottle to be perfectly placed and held in place during
the filling. It assures that each bottle is directly underneath
the nozzle every time.
The neck clamps are attached to the same placement bar
which provides the height position and the IN/OUT position.

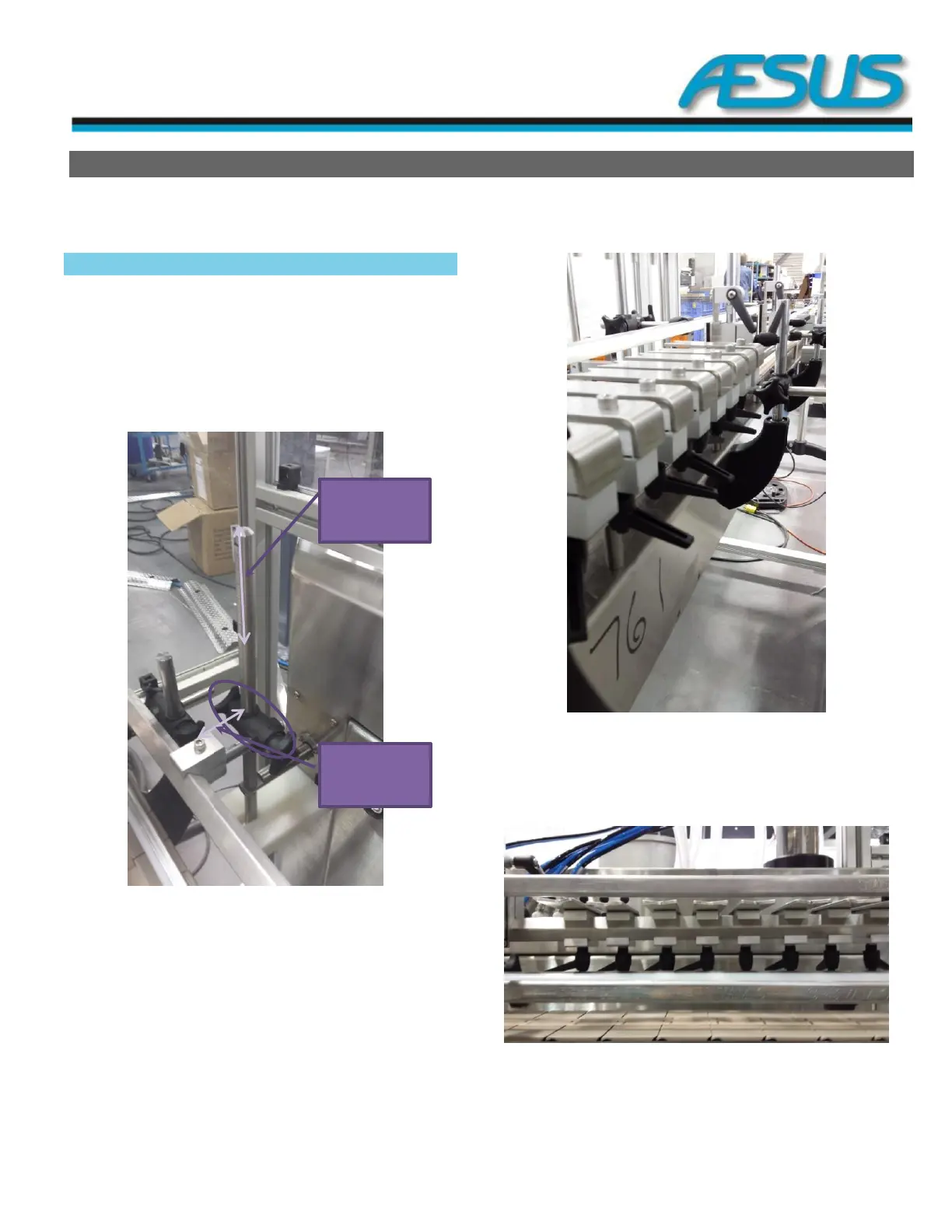

Figure 6-1: Placement bar Adjustment
Each neck clamp needs to be positioned individually
depending on the size of bottles used on the machine.
Follow the next step to adjust everything correctly:
Figure 6-2: Neck clamps Sideway adjustment 1
a. Using the containers as a guide, lower the nozzle bar so
that the neck clamps are aligned with the neck of the
container.
Figure 6-3: Neck clamps Sideway adjustment 2
b. If the neck clamp is not already activated, activate the
Neck Clamp. Adjust the bar all the way back to ensure that
upon activation, the neck clamp will not hit the containers
that are being set up.
