AESFill AF1C Machine Manual 20/58 Installation
Air Supply & Lubrication 4.5
On the back of the machine there is a filter regulator. The filter cleans the air, the regulator controls the outlet pressure.
The air valve solenoid inside the cabinet controls the air going to the air cylinder. At the appropriate time, when the nozzle needs
to be opened or closed, the air is directed out of one connection or the other.
The Black tagged connector on the rear of the machine connects with the black hose to the top of the nozzle. The blue tagged
connector connects with the blue hose to the side of the nozzle. (Reverse for O.B.S.O. type nozzles.)
The connector installed on the machine is for 6 mm hose. This connector is screwed into the filter/regulator. The filter/regulator
will accept any 1/8 NPT fitting. So from the compressor, either uses a ¼ in or 3/8 inch hose so a BARB adaptor from 1/8 inch NPT to
barb (whatever size the hose ID is) will work correctly.
Periodically you must drain any water or debris that collects in the filter.
**WARNING—DISCONNECT AIR SUPPLY BEFORE SERVICING FILTER**

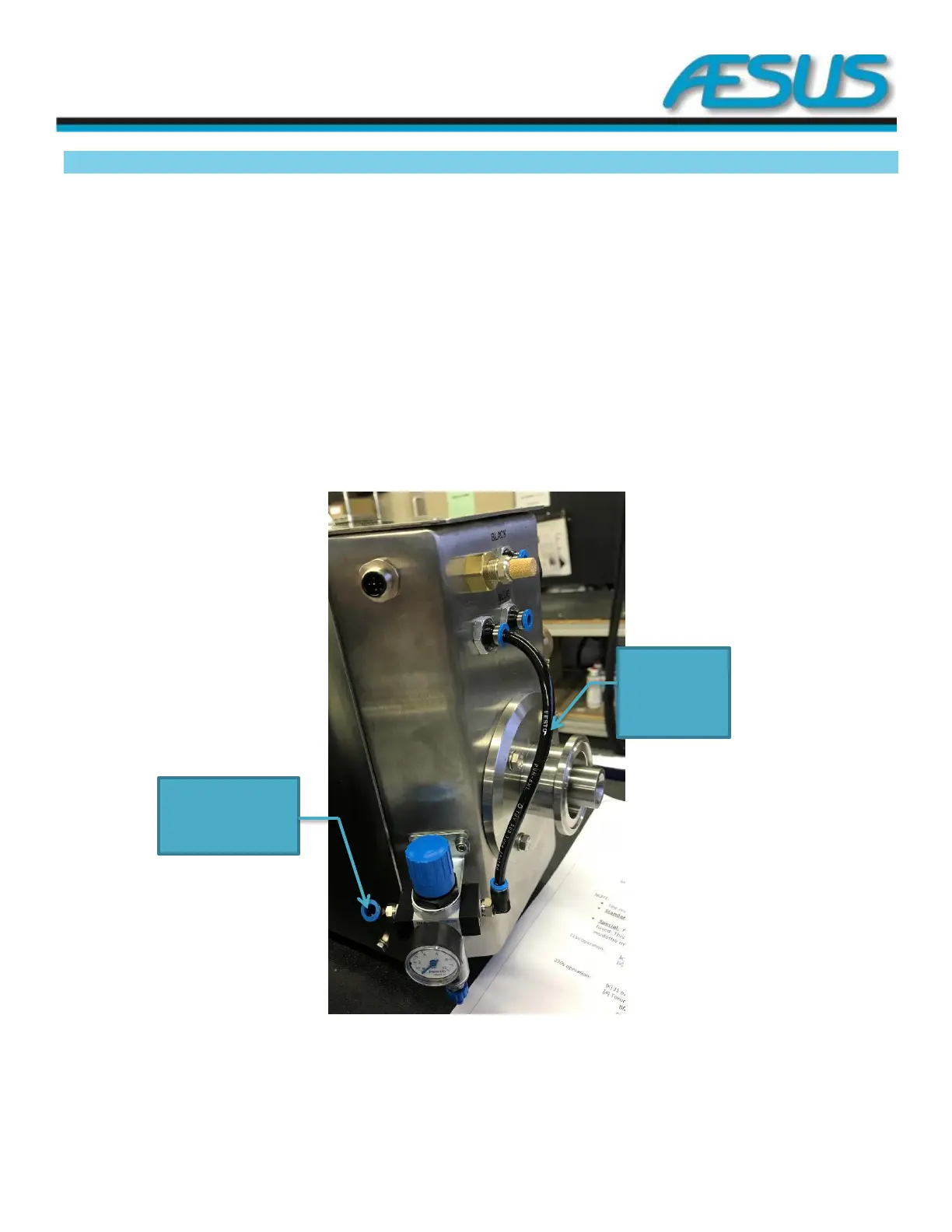

Figure 4-15: Air filter connection
Connector for the
hose coming from
the compressor
Hose that
connect the
air filter to
the machine.
