AESFill AF1C Machine Manual 31/58 Screens
Repeat Fill 7.4

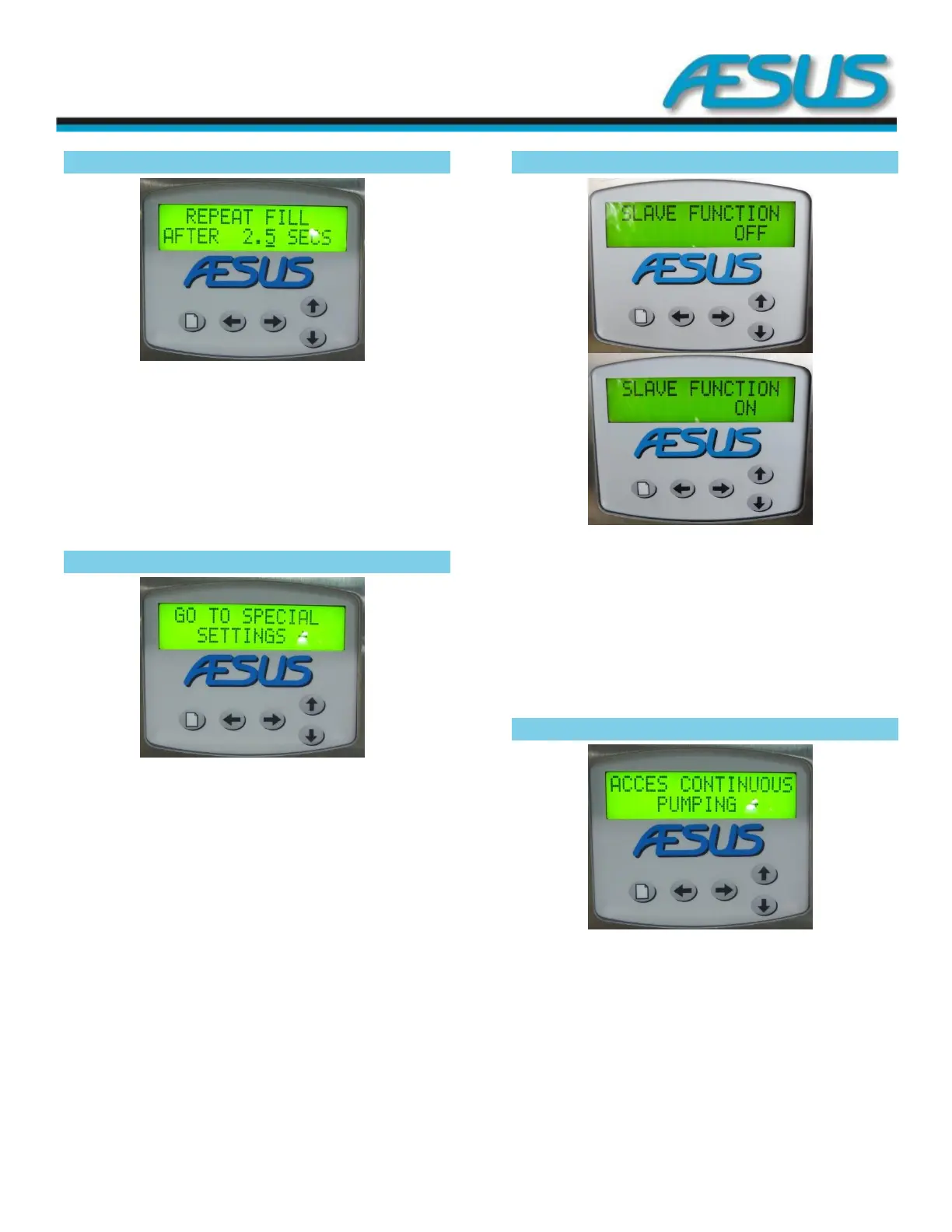

Figure 7-6: Repeat Fill Screen
Use up and down arrows to adjust the time delay between
fills in semi-automatic mode. Setting to “0” turns off semi-
automatic mode. Keep fingers pressed for rapid action.
Change will affect the next delay.
Press the Menu key to access more Settings
Go to Special Settings 7.5
Figure 7-7: Special Screen
Press the menu key to go back to RUN SCREEN. Use the arrow
to the right key to access Special Settings.
Slave 7.6
Figure 7-8: Slave Screen
Use the up and down arrow keys to switch the function from
Off to ON in sequence.
In Slave mode the filler will start filling as soon as it gets a
signal from the Master and then will stop and do nothing else
until it gets a new signal from the Master.
Access continuous pumping 7.7
Figure 7-9: Pumping
Use the arrow to the right key to access priming and
continuous pumping functions.
Press the Menu key to access more Settings
