AESFill AF1C Machine Manual 19/58 Installation
Connections 4.4
The AESFill AF1 has 6 connections:
Main Power
The main power inlet is located at the back of the machine. Depending on your requirements, the machine has been configured to
handle either 110 V or 220 V, 50/60 Hz. Check the rating plate to see if it matches your supply. If it does not, call Aesus.
Compressed Air
The air supply should at least be 60 psi. The air inlet is located on the back of the machine to the left side of the air regulator.
Black and blue air connectors while supply air to the nozzle. For IBSO Nozzles, the black hose goes to the top of the nozzle air
cylinder and the blue hose goes to the side of the nozzle air cylinder.
Communication Ports
There are 2 communication ports located on the back of the machine. One is a 5 pin port and the other is a 19 pin port.
5 pin port is used to control a foot pedal as well as daisy chaining / networking multiple AF1 units together.
19 pin port is used to daisy chains / network multiple units together as well as controlling optional automation items such as
gating, diving, neck clamp and a drip tray.
When using an AESFill AF1 on its own, you can connect the foot switch into the 5 pin port.
When multiple AESFill AF1 units are used,
they are connected together via a communication
cable from the 5 pin port to the 19 pin port.
In this case, the foot switch
Would be connected to the unoccupied 5 pin port.

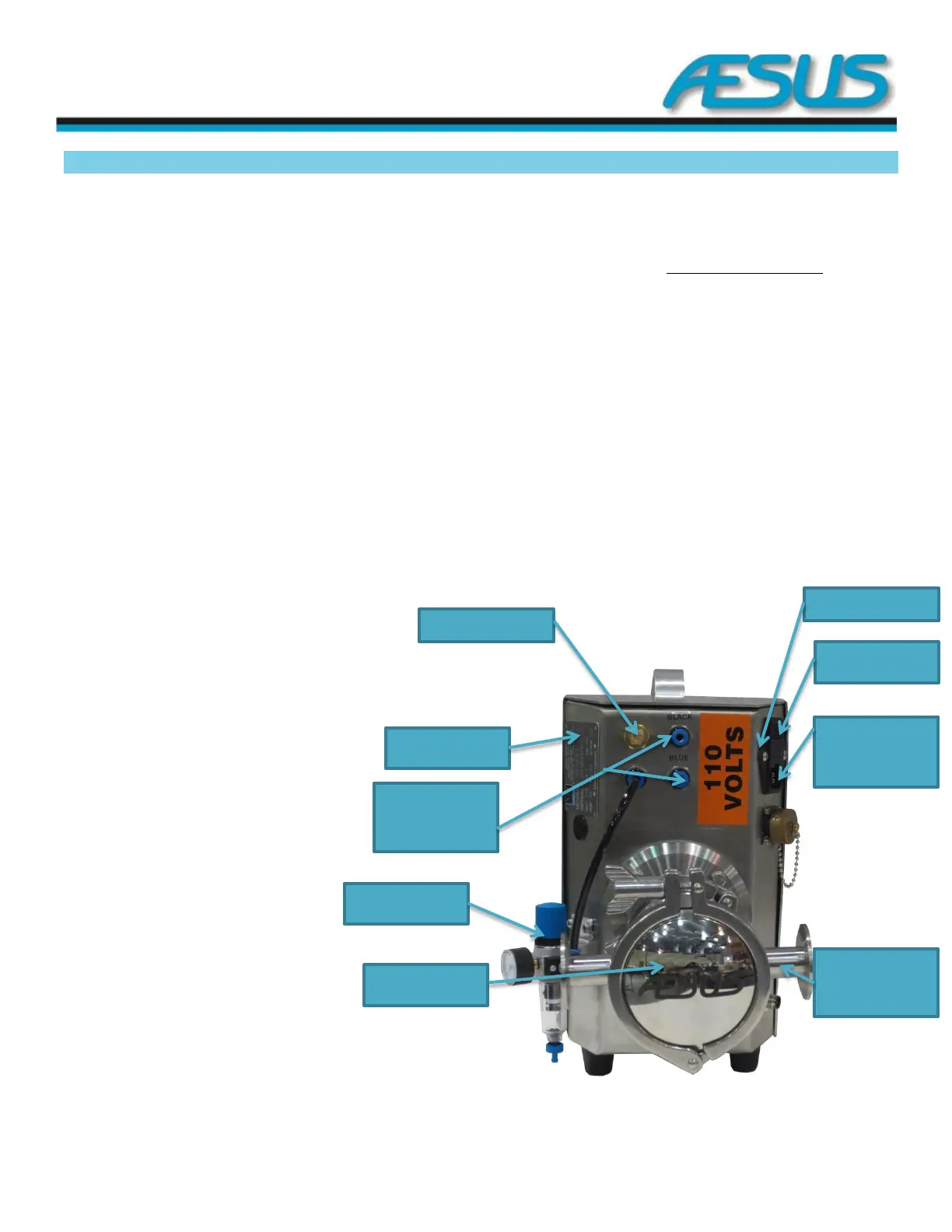

Black & Blue
Nozzle air
connections
19 Pin
Communication
Cable Port
5 Pin
Communication
Cable Port
To Next Page
