Gap Sensor 6.7

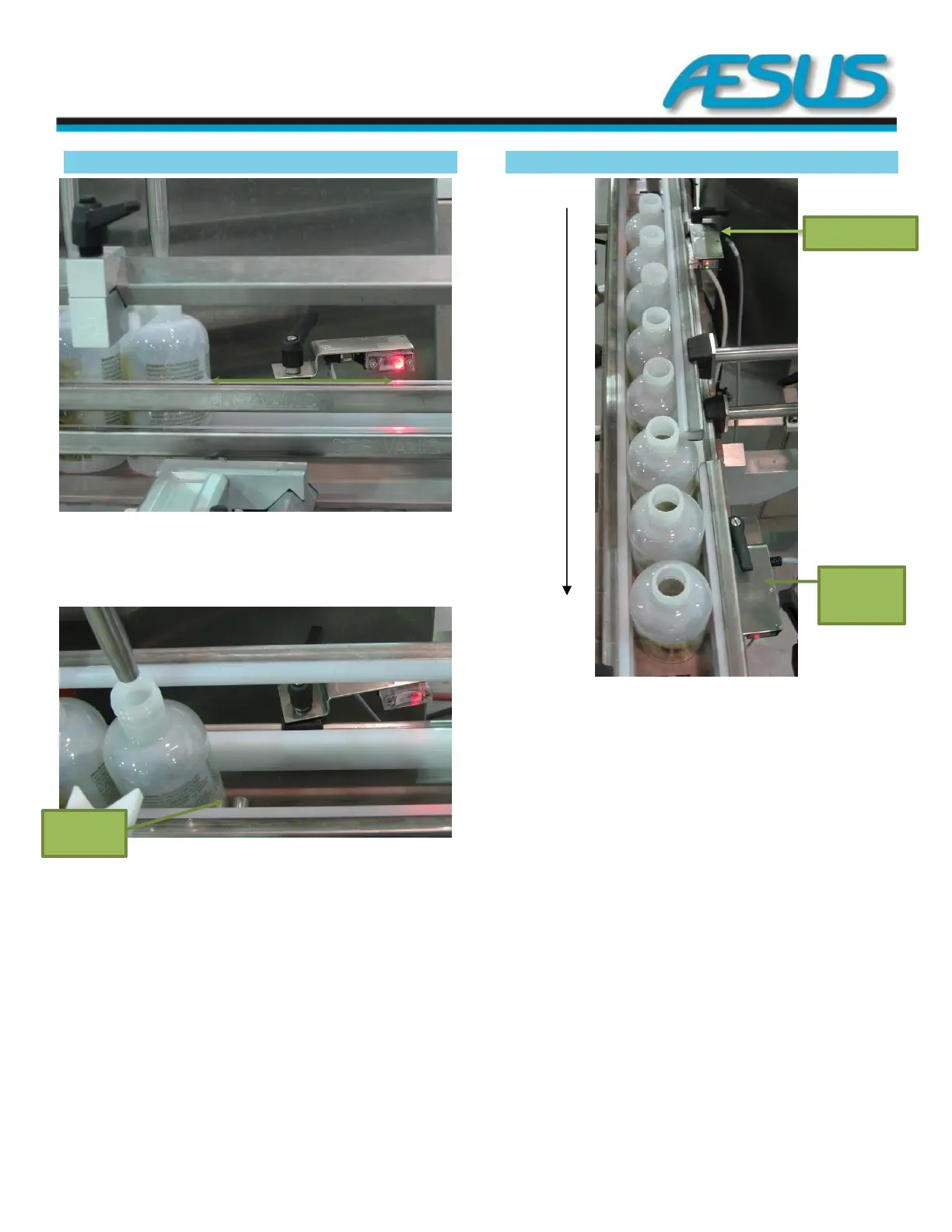

Figure 6-17: Outfeed gate adjustment
vi. The gap sensor should be located 1 to 2 container
diameters downstream from the outfeed gate.
Figure 6-18: Outfeed gate adjustment
vii. Teach the sensor as needed.
viii. Place a container in front of the gap sensor, and
confirm that the sensor light turns on when it detects
the container.
Backup Sensor 6.8
Figure 6-19: Outfeed gate adjustment
ix. Open the outfeed gate from the Setup Screen by
pressing the Activate Outfeed Gate button.
x. If for example 4 containers are being filled, the
backup sensor needs to be placed at least 4 container
widths downstream from the gap sensor.
xi. Teach the backup as needed
xii. It may be necessary to teach the backup sensor
multiple times such that the sensor stays activated
while the filled containers are moving past. This may
take some time and patience.
xiii. Close the outfeed gate.
xiv. Retract the neck clamp.
**NOTE: The pictures included in this section may not be exactly the
same as your machine depending on your configuration.
1 to 2 container
diameters apart
