AESFill AF1C Machine Manual 15/58 Installation

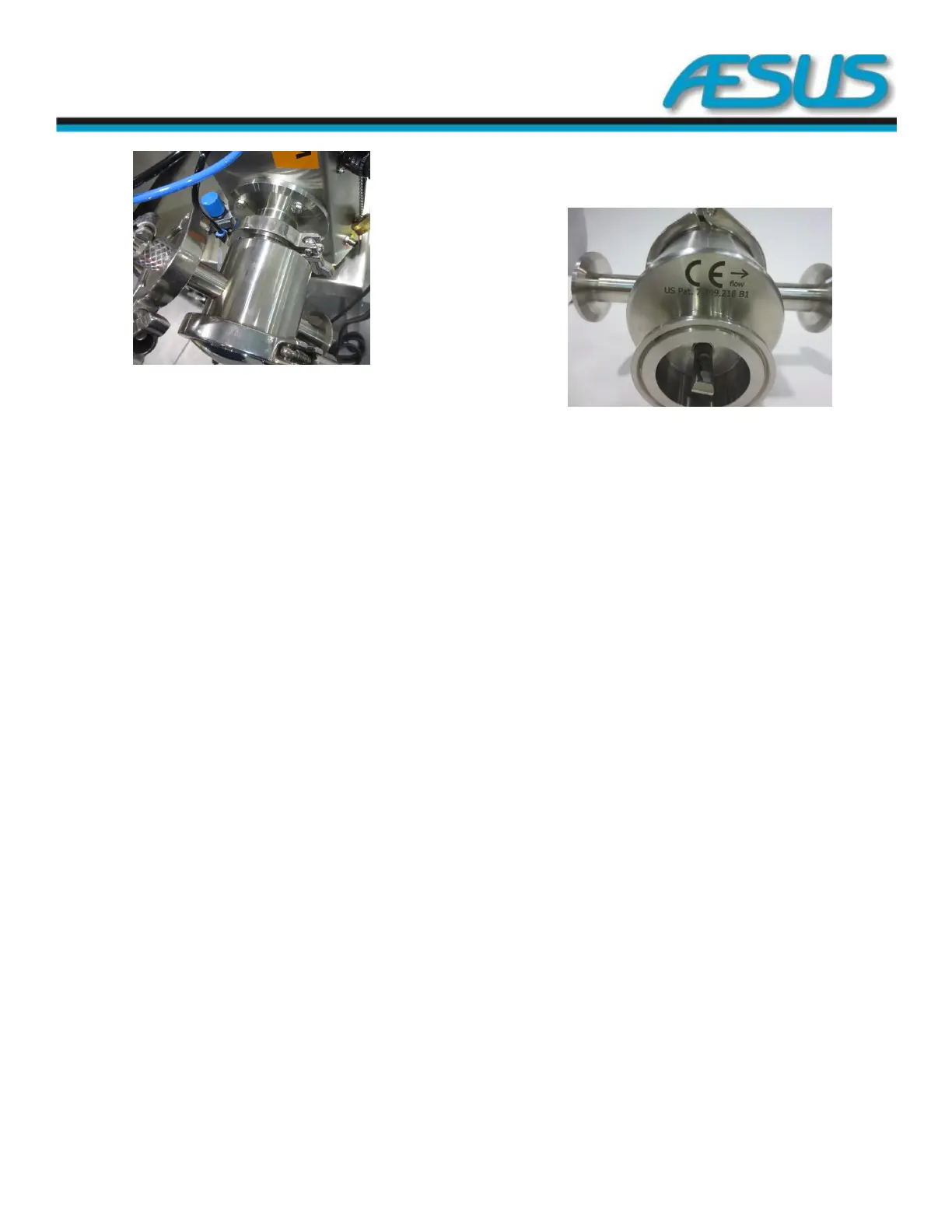

Figure 4-8: Pump Assembly 6
In order to attach the pump to the docking plate on the filler
you will need to use the smaller 2” (5 cm) sanitary clamp.
There is a circular groove in the bottom of the AESPump and
a matching ridge on the top of the docking plate on the
AESFill AF1.
Place the AESPump on top of the docking plate and use the
sanitary clamp to fasten the two pieces together. No sealing
ring is required for this connection. You can rotate the pump
to any orientation that you need.
Figure 4-9: Pump Assembly 7
Remember, the inlet and the outlets of the pump are
identified by the arrow on the bottom of the pump body.
