AESFill AF1C Machine Manual 17/58 Installation
4.2.3 Custom Nozzles
The 1 ½“nozzle is comprised of 14 parts.
1. Quick Connect air fitting (Part EDT-75630)
2. Adjustable Handle (Part EDT-88039)
3. Tri-clover Seal (Part EDT-91105B)
4. Tri-clover clamp (Part FIL333)
5. Flow Control (Part FIL66984)
6. Stem Top O ring (Part FIL85948)
7. Stem bottom O ring (Part FIL85949)
8. Spout O ring (Part FIL85955)
100. Air cylinder (Part FIL85951)
200. Nozzle clamp (Part FIL65953)
201. Nozzle stem (Part FIL85898)
500. Nozzle body (Part FIL85953)
501. Nozzle spouts (Part FIL85954)
700. Nozzle stem set screw (Part BOU9102)

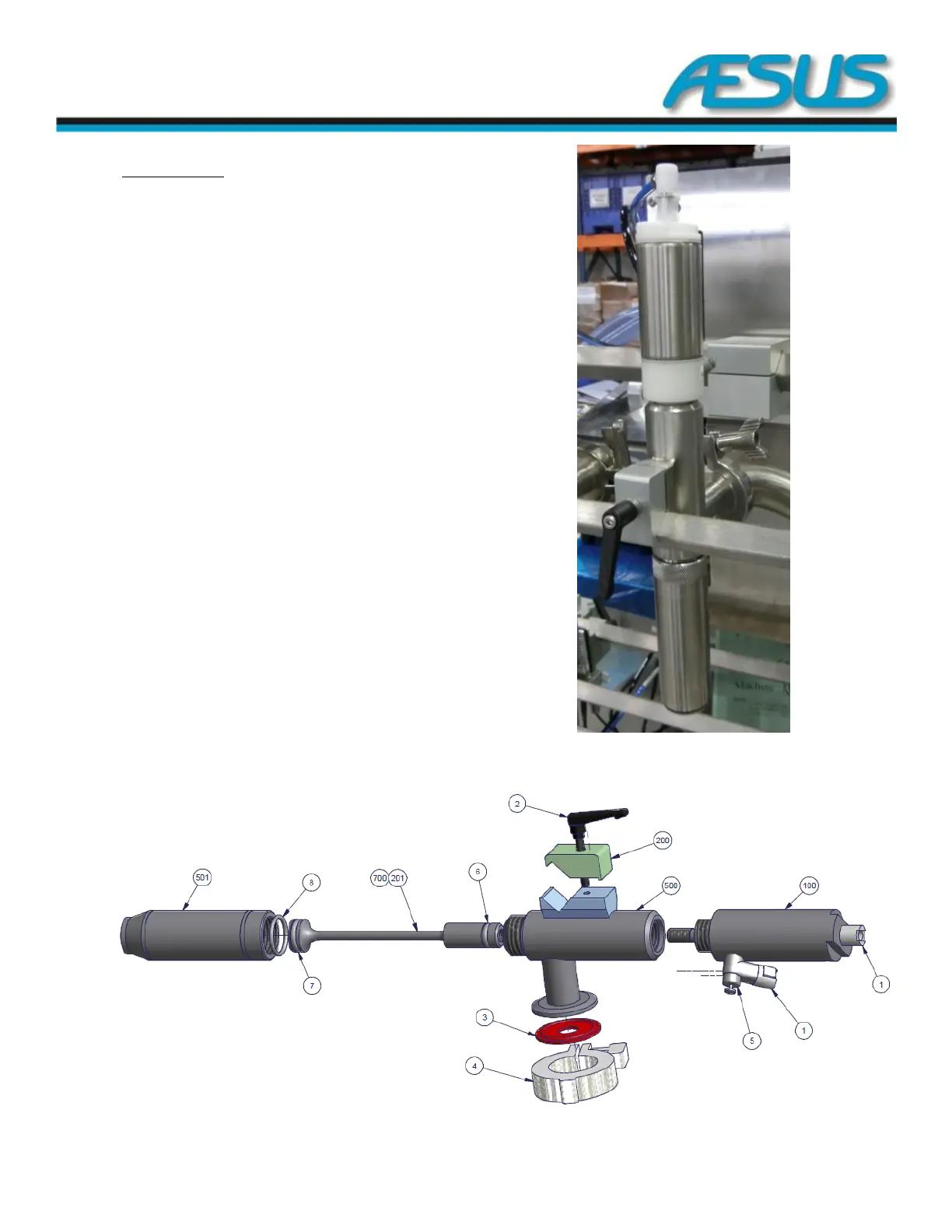

Figure 4-11: 1 ½“Nozzle
Figure 4-12: 1 ½“Custom Nozzle Assembly
