AESFill AF1C Machine Manual 13/58 Installation
4. AESPump
The AESPump consists of 17 pieces:
1. 1 Face Plate
2. 1 O-Ring BunaN (Other materials available)
3. 1 Pump Body
4. 2 Tri-Clover Sanitary Clamps (1–3” Dia. & 1–2” Dia.)
5. 2 Gears
6. 1 Stainless Steel Drive Shaft (4 1/8”, 10.5 cm)
7. 1 Stainless Steel Idler Shaft (2 ½”, 6.4 cm)
8. 1 U-Cup Drive Shaft Seal
9. 1 Stainless Steel Gear Chamber
10. 2 Stainless Steel Bushing Holders
11. 4 Bushings (3 short, 1 long)
1- Pump Face Plat
2- O-Ring
3- Pump Body
4- Tri-Clover Sanitary clamp
6- Drive Shaft
7- Idler Shaft
8- U-Cup Drive Shaft
Seal
9— Gear Chamber
5- Gears
10- Bushing Holders
11- Bushing (3 short/1 Long)

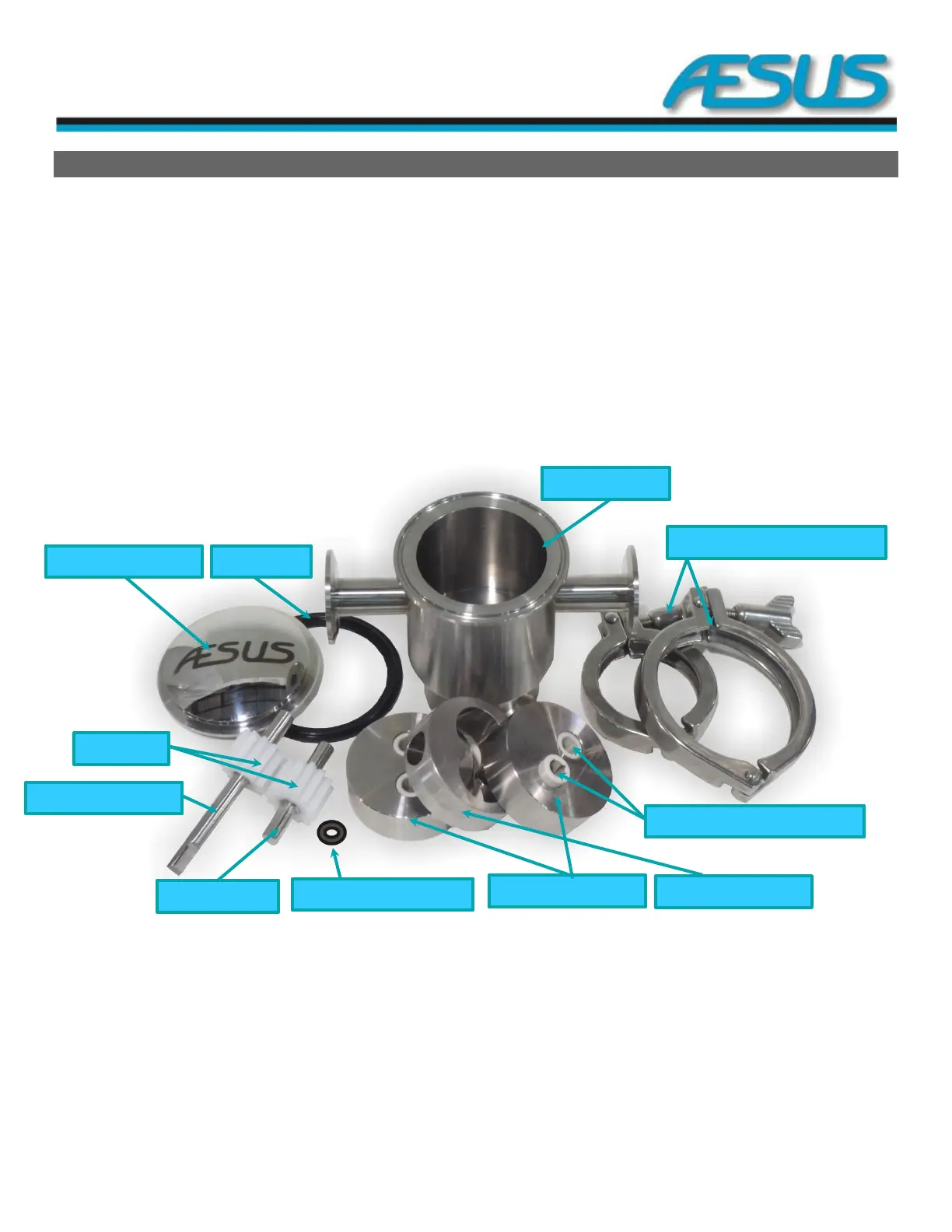

Figure 4-1: AESPump body
