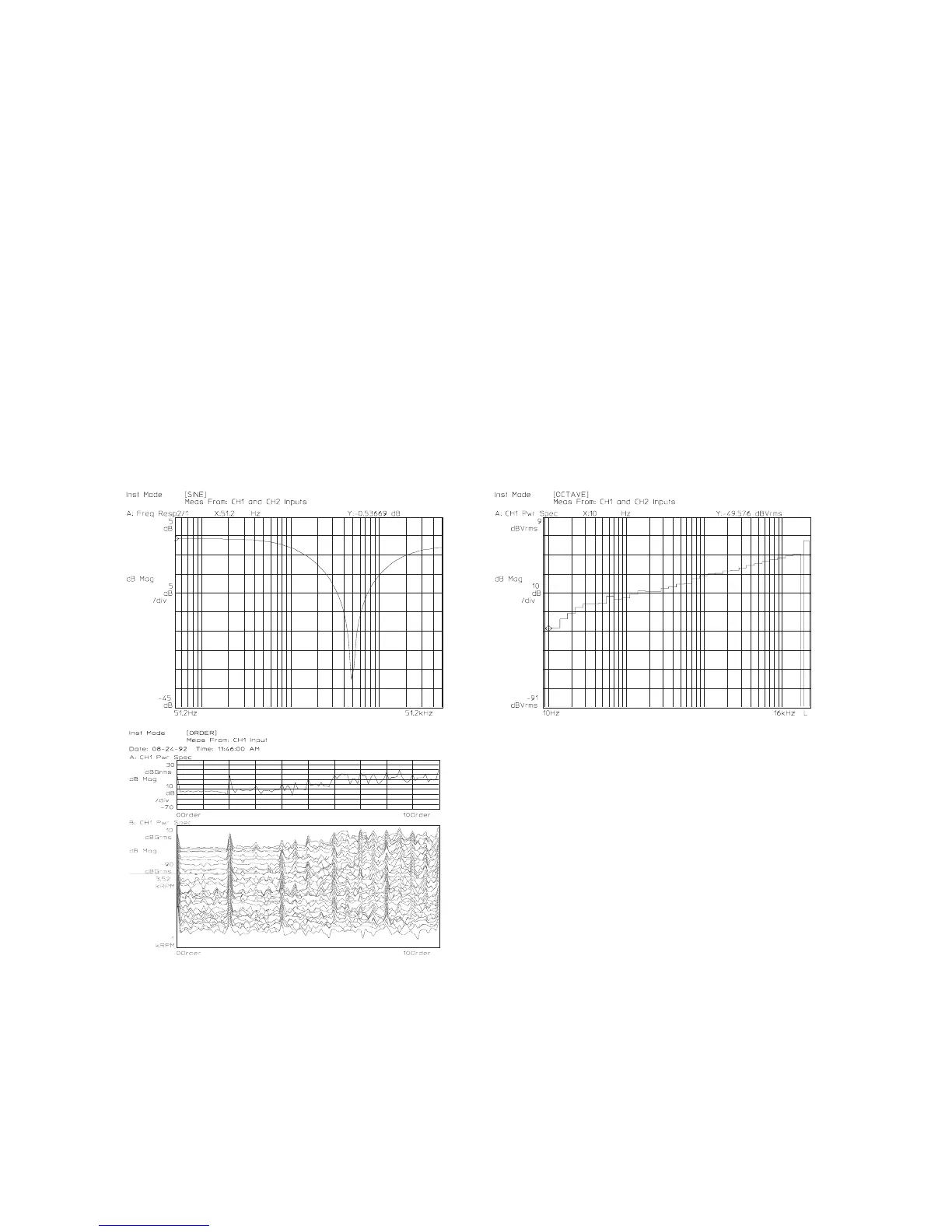

When the analyzer has two active input channels and multiple active traces, selecting
measurement data while the [
ALL CHANNELS
] softkey is highlighted, sets:
• Channel 1 measurement data to Trace A.
• Channel 2 measurement data to Trace B.
• Channel 1 measurement data to Trace C.
• Channel 2 measurement data to Trace D.
When the analyzer has four active input channels (Option AY6) and four active traces,
selecting measurement data while the [
ALL CHANNELS
] softkey is highlighted, sets:
• Channel 1 to Trace A.
• Channel 2 to Trace B.
• Channel 3 to Trace C.
• Channel 4 to Trace D.
Agilent 35670A Quick Start Guide Working with the Display
21
