Recommended Test Equipment (continued)
Instrument Critical Specifications Recommended Model
Cables BNC-to-Dual Banana
(6) BNC-to-BNC 30 cm
BNC-to-BNC 122 cm
HP 11001-60001
HP 8120-1838
HP 8120-1840
Adapters BNC(m)-to-Dual Banana Plug
BNC(f)-to-Dual Banana Plug
BNC(f)-to-BNC (f)
(4) BNC Tee (m)(f)(f)
HP 10110B
HP 1251-2277
HP 1250-0080
HP 1250-0781
Resistor (2)â€
Value: 1 kΩ
Accuracy: 1%
Power: 0.25W
HP 0757-0280
†See the following for suggested assembly.

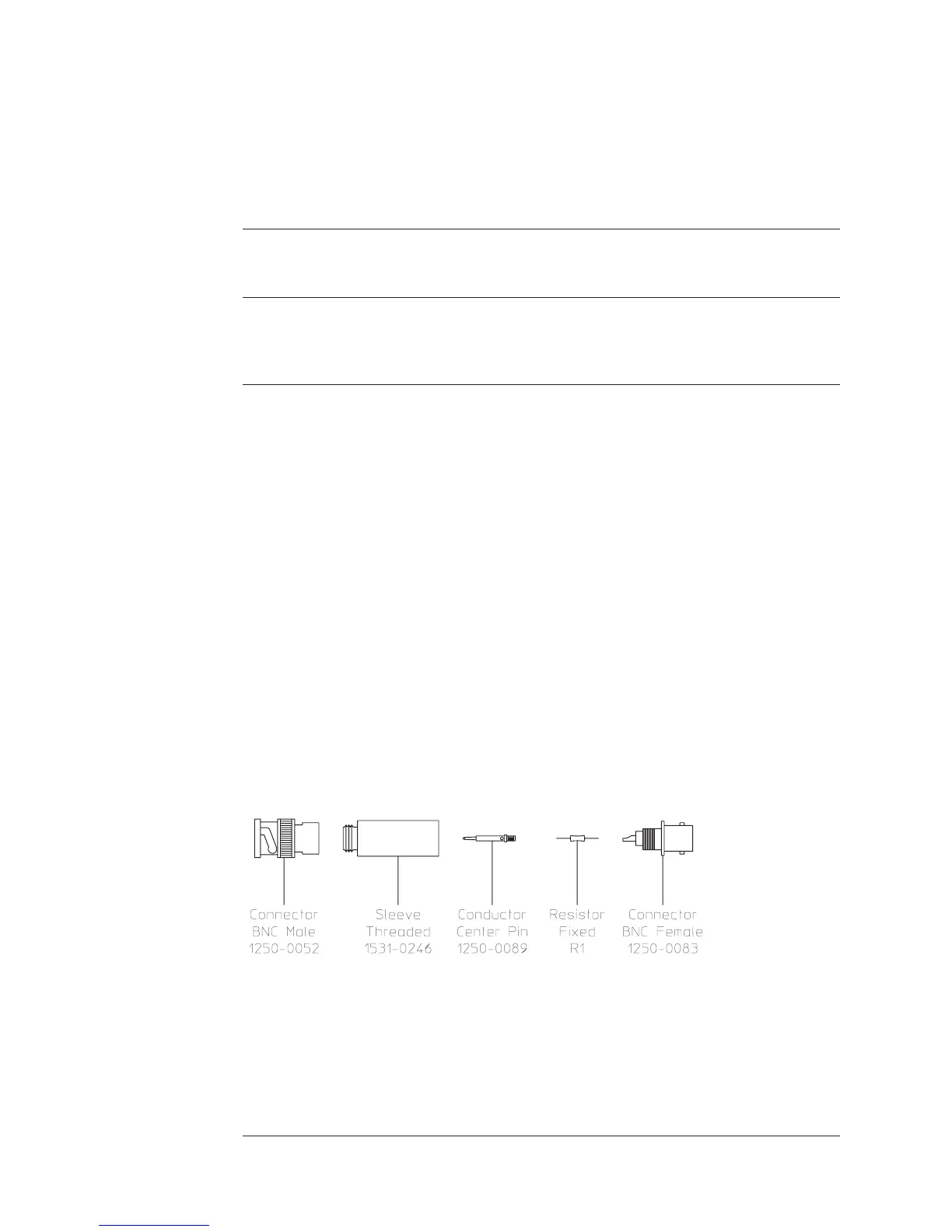

Suggested Assembly for Series Resistor
The following is a suggested assembly for the 1 kΩ series resistor. Two 1 kΩ
series resistors are required for the Intermodulation Distortion performance
test.
• Cut resistor leads to 12 mm on each end.
• Solder one resistor lead to the center conductor of the BNC female connector.
•
Solder the conductor center pin to the other lead of the resistor.
•
Screw the sleeve and the BNC male connector into place. Tighten securely.
Specifications Agilent 35670A
Recommended Test Equipment
1-18
