Agilent Technologies 35670A Service Guide

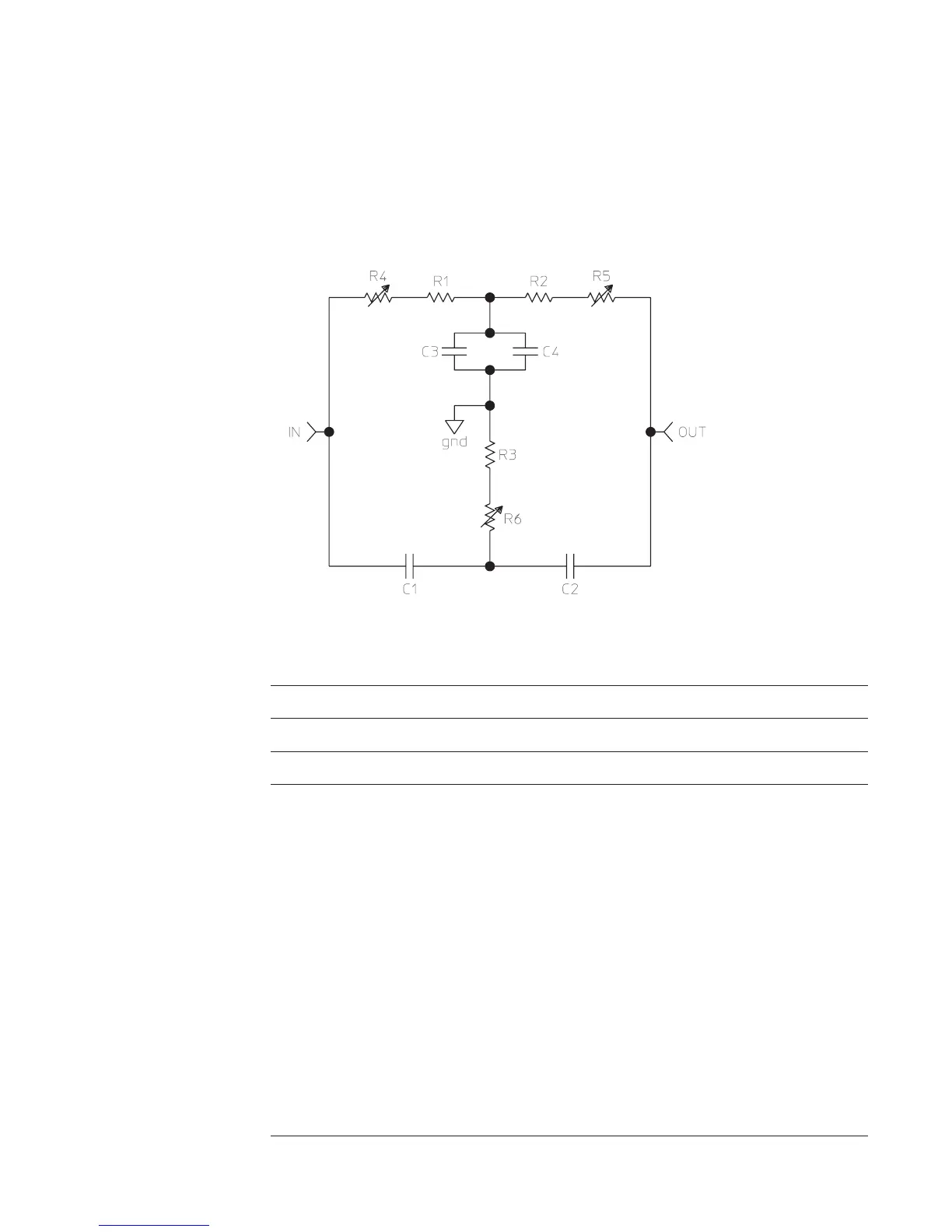

Schematic and Parts List for Notch Filter
The Harmonic Distortion performance test requires either an HP 339A or an
HP 3326A or HP 3325A/B with notch filter. The following shows the schematic and
parts list for the notch filter.
Reference Description Agilent Part
Number
C1-C4
0.025 µF ±2.5%, 100 V polypropelene-metalized
HP 0160-6809
R1-R2
249 Ω±1% metal film, 0.125 W
HP 0698-4421
R3
118 Ω±1% metal film, 0.125 W
HP 0698-4407
R4-R6
20 Ω trimmer, 1 turn
HP 2100-3409
Agilent 35670A Specifications
Recommended Test Equipment
1-19
