4Sample Gas Handling
G3588-68864
54 Agilent 990 Micro GC User Manual

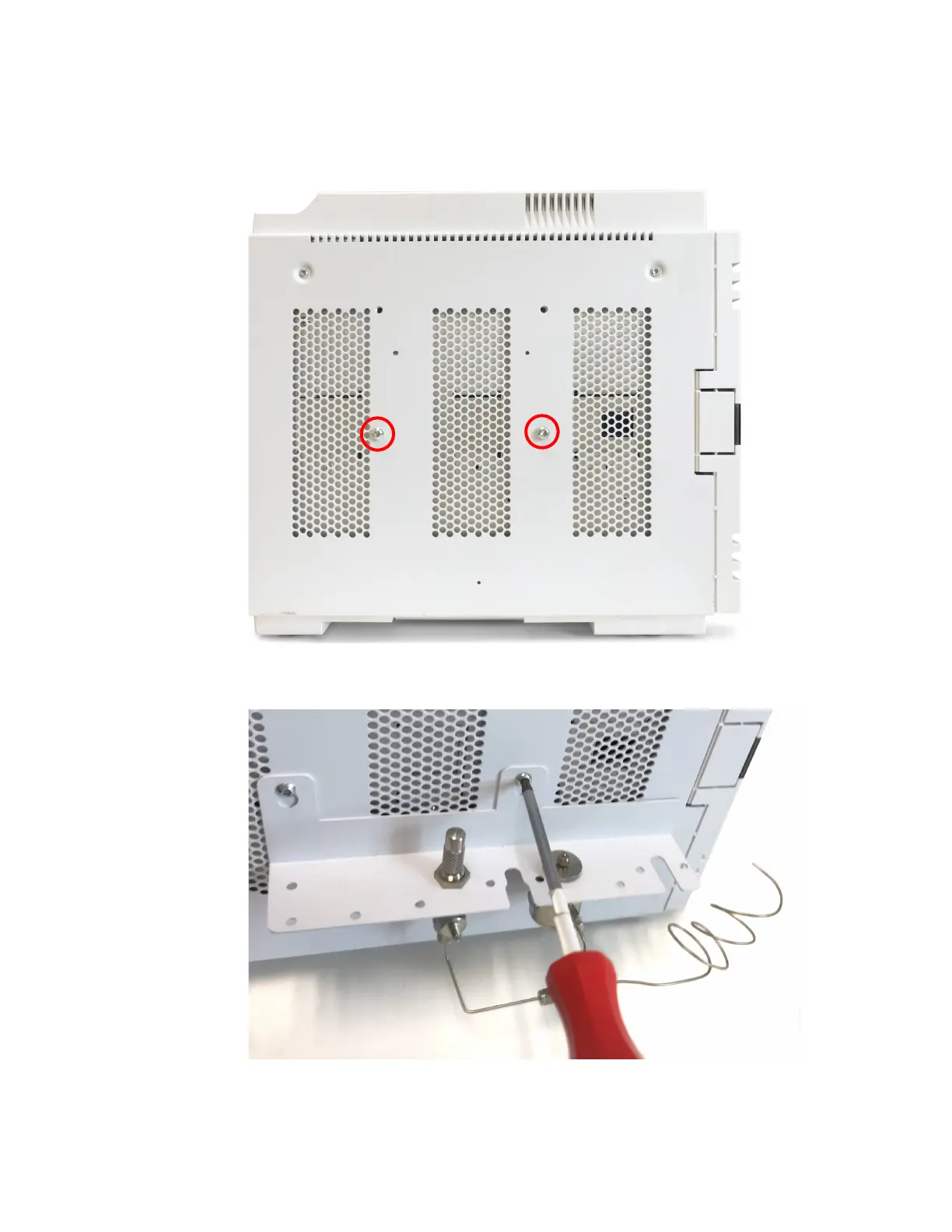

3 Attach two Torx T-20 screws to the left side of the GC. Leave them loose enough that there is
room to install the bracket between the screw heads and the GC.
4 Slide the bracket onto the GC.
5 Use a 5/16 inch wrench to connect the 1/16 inch tubing to the sample inlet manifold by the
1/16 inch Swagelock fitting.
