Agilent Cary 8454 UV-Visible Spectroscopy System Installation Guide 57
Installing Accessories 4
Cell Stirring Module
If you need a faster stirring speed than can be obtained by connecting the
manifold and cell stirring module in series, you can connect separate
supplies to the manifold and stirring module.

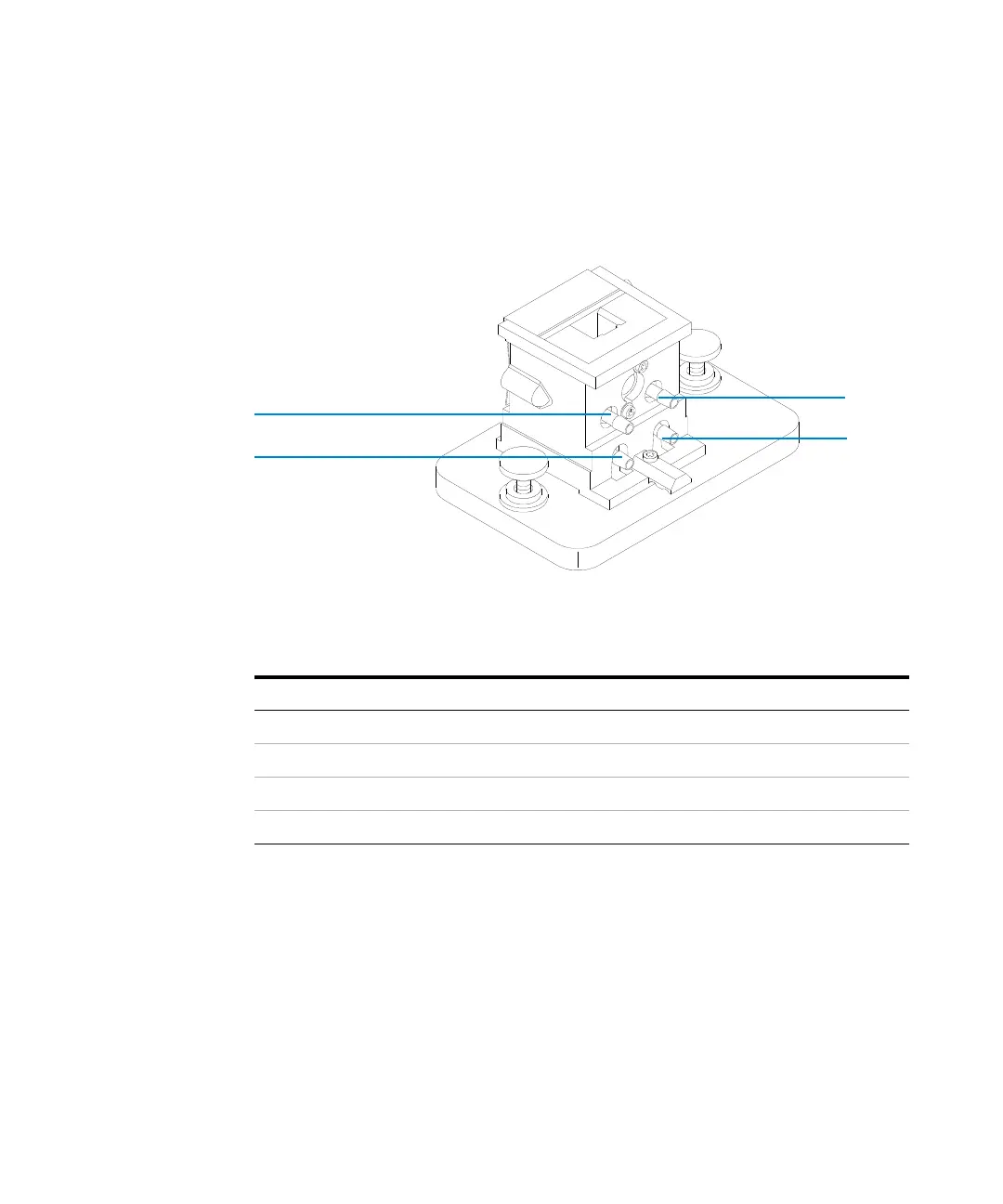

Figure 16 Tubing connections for a cell stirring module
Table 2 Tubing connections for a cell stirring module
Connection Comment
A (in), B (out) Without stirring
C (in), D (out) Without cell thermostatting
A (in), B to D, C (out) In series with cell thermostatting
A and C (in), B and D (out) In parallel with cell thermostatting
