Agilent Cary 8454 UV-Visible Spectroscopy System Installation Guide 117
LAN Communication, Installation, Connection and Configuration 7
Installing the LAN Interface in your UV-Visible Spectrophotometer
Installing the LAN Interface in your UV-Visible
Spectrophotometer
The JetDirect card (G1846A) and the TalkToLab card (G1369C) are the
LAN interfaces used to physically connect the spectrophotometer to the
PC via a LAN cable. To install the LAN interface card:
1 Switch off the spectrophotometer.
2 Remove the metal cover at the upper right of the rear panel.
3 If the system is on an isolated LAN, the following defaults can be used:
192.168.254.10 for the PC IP address, 255.255.255.0 for the subnet
mask, and 192.168.254.11 for the spectrophotometer. (note: to use these
defaults, DIP switches 5 and 6 on the LAN card must be "ON").

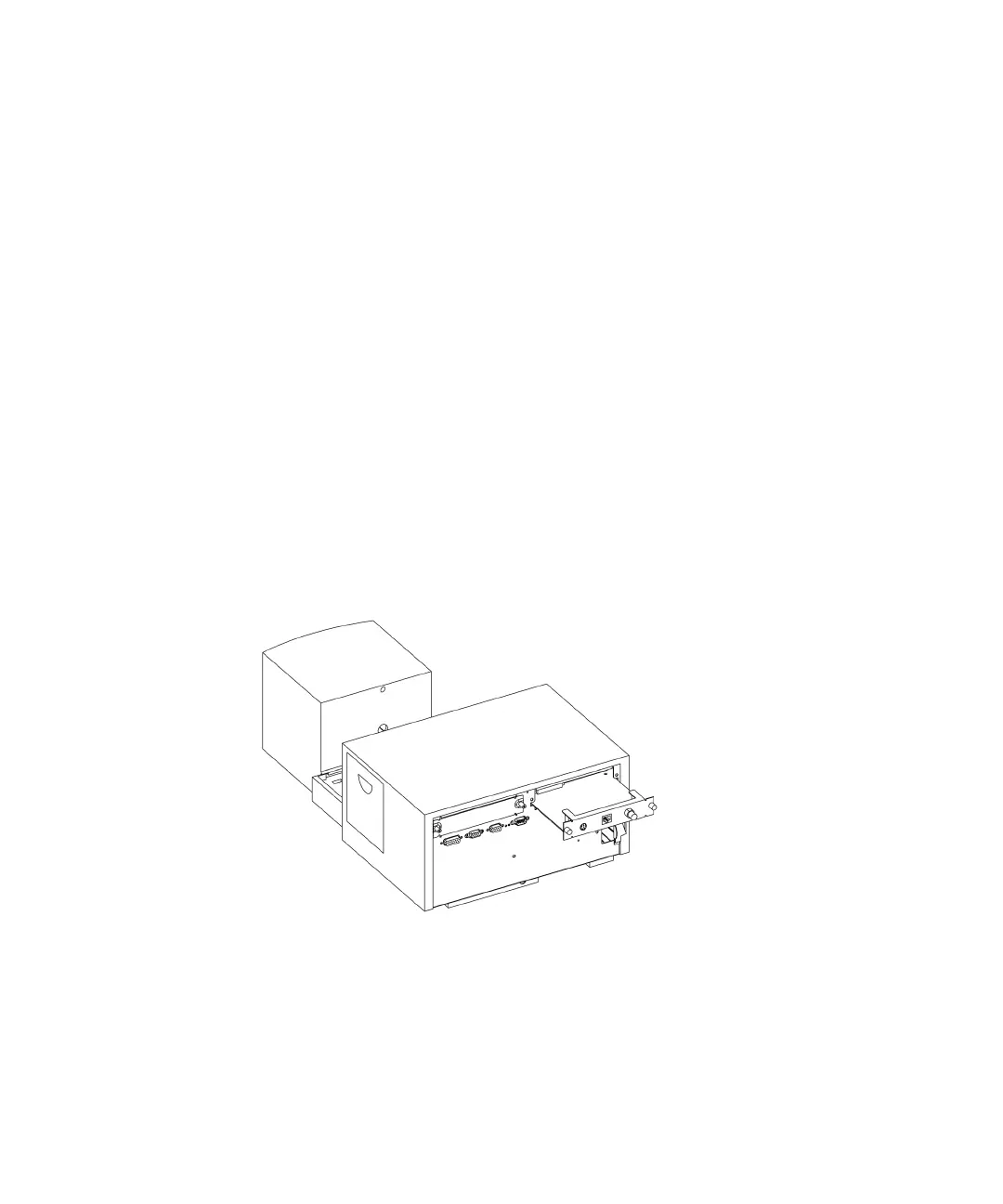

4 Plug the LAN interface card into the slot and screw down the two
mounting screws.
