Agilent Cary 8454 UV-Visible Spectroscopy System Installation Guide 55
Installing Accessories 4
Cell Stirring Module
Installing the Cell Stirring Module
1 Remove the thermostattable cell holder from the sample compartment.
2 Remove the three screws that hold the thermostattable cell holder to its
base. Remove the cell holder and turn it upside- down.
3 Insert the cell stirring module into the cavity in the base of the
thermostattable cell holder, see Figure 15.
4 Tighten the four screws (flathead, M3×6 mm) that hold the cell stirring
module in place.
5 Attach the thermostattable cell holder to its base.
6 Mount the thermostattable cell holder back in the sample compartment.

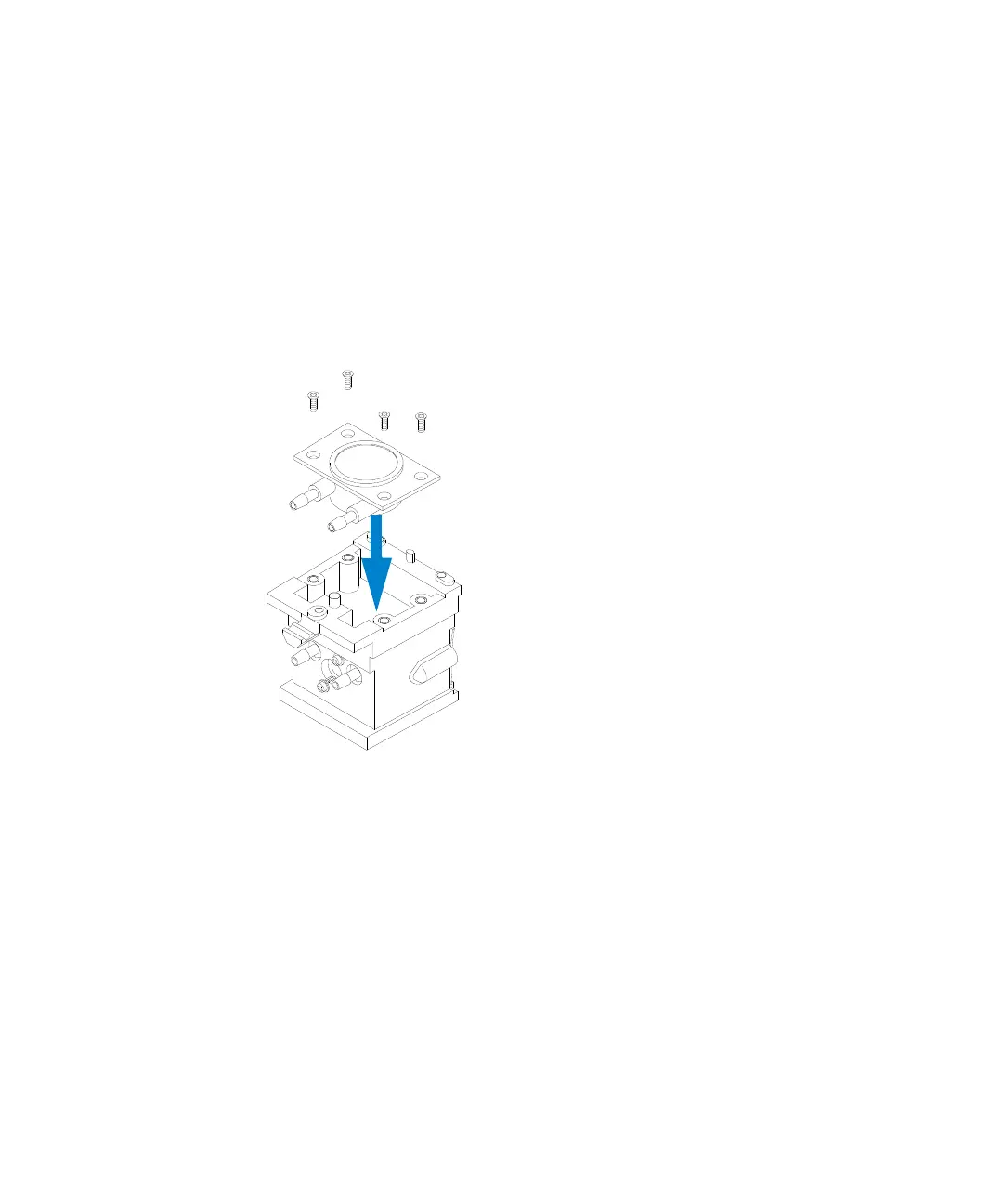

Figure 15 Installing the cell stirring module
