Agilent Cary 8454 UV-Visible Spectroscopy System Installation Guide 61
Installing Accessories 4
Optical Filter Wheel
Optical Filter Wheel
To achieve optimum measurement conditions, optical filters may be
necessary for spectral measurements of photosensitive samples. Agilent
Technologies offers an optical filter wheel assembly (08451-60302), see
Figure 20, which can be mounted on the standard cell holder, the
adjustable cell holder or the thermostattable cell holder. An optical filter
wheel with the same filters but with a different mounting can be used
with the multicell transport, see the multicell transport User’s Guide.
The filter wheel rotates to four different positions. Position zero is empty
and permits 100% transmittance at all light wavelengths. Positions one,
two and three have filters which absorb varying amounts of the UV
spectrum. Figure 21 shows the transmission characteristics of each filter.

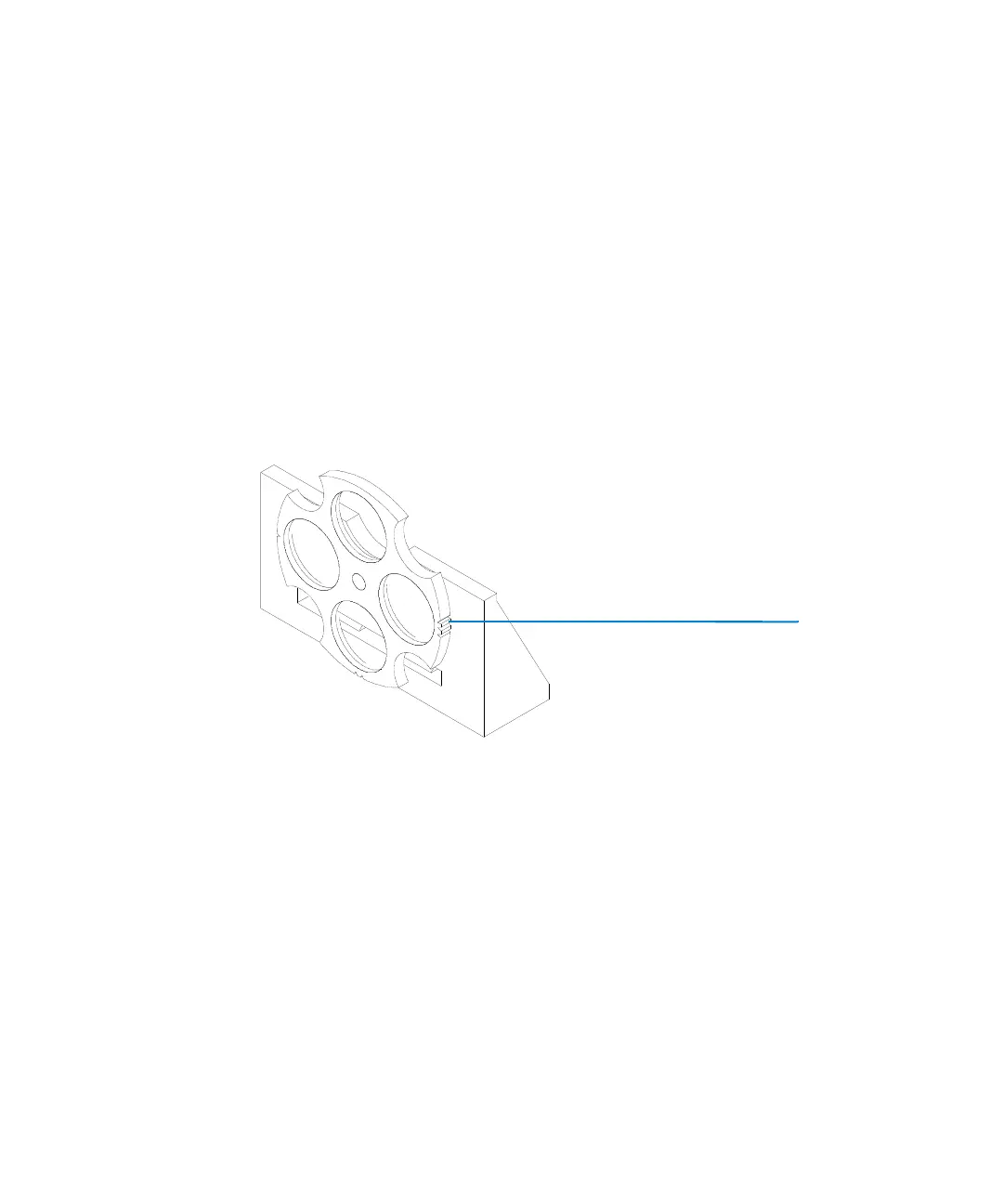

Figure 20 Optical filter wheel assembly
Notches indicate filter number
