Ainuo AN9640B - ACW Settings

Chapter 4 Settings and Test
33
4.5.3 ACW Settings

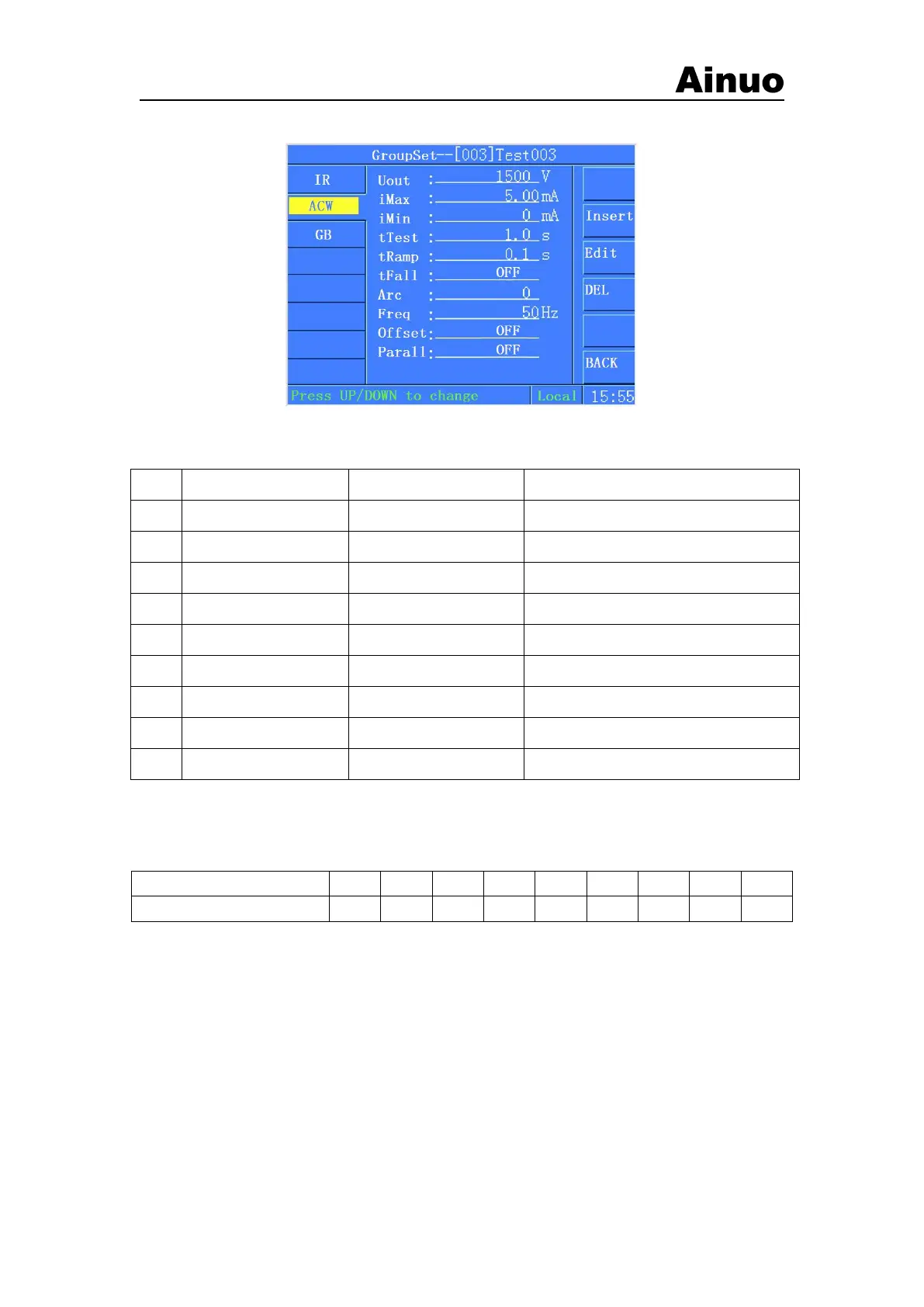

Figure 4-5-4 ACW Settings
ACW Parameters:
No.
Item
Range
Description
1
Output Voltage
(100~5000)V
ACW Output voltage
2
Current Upper Limit
(0~100.00) mA
Breakdown current alarm upper limit
3
Current Lower Limit
(0~9.999) mA
Breakdown current alarm lower limit
4
Test Time
(0.5~999.9)s/continuous
Test time of current step
5
Ramp Time
(0.1~999.9) s
Voltage ramp time
6
Descent Time
(1.0~999.9) s/OFF
Voltage descent time
7
Arc Level
0~9
Arc test alarm level
8
Output Frequency
50Hz/60Hz
ACW output frequency
9
Compensation Test
ON/OFF
Include the compensation value or not
The arc alarm level can be pre-set and judged in following levels: 0 and 1~9. Level-0: arc
detection is disenable. level-9: top level. The peak current at each alarm level is listed in the
following table.
Arc alarm level
9
8
7
6
5
4
3
2
1
Threshold peak current (mA)
2.8
5.5
7.7
10
12
14
16
18
20
