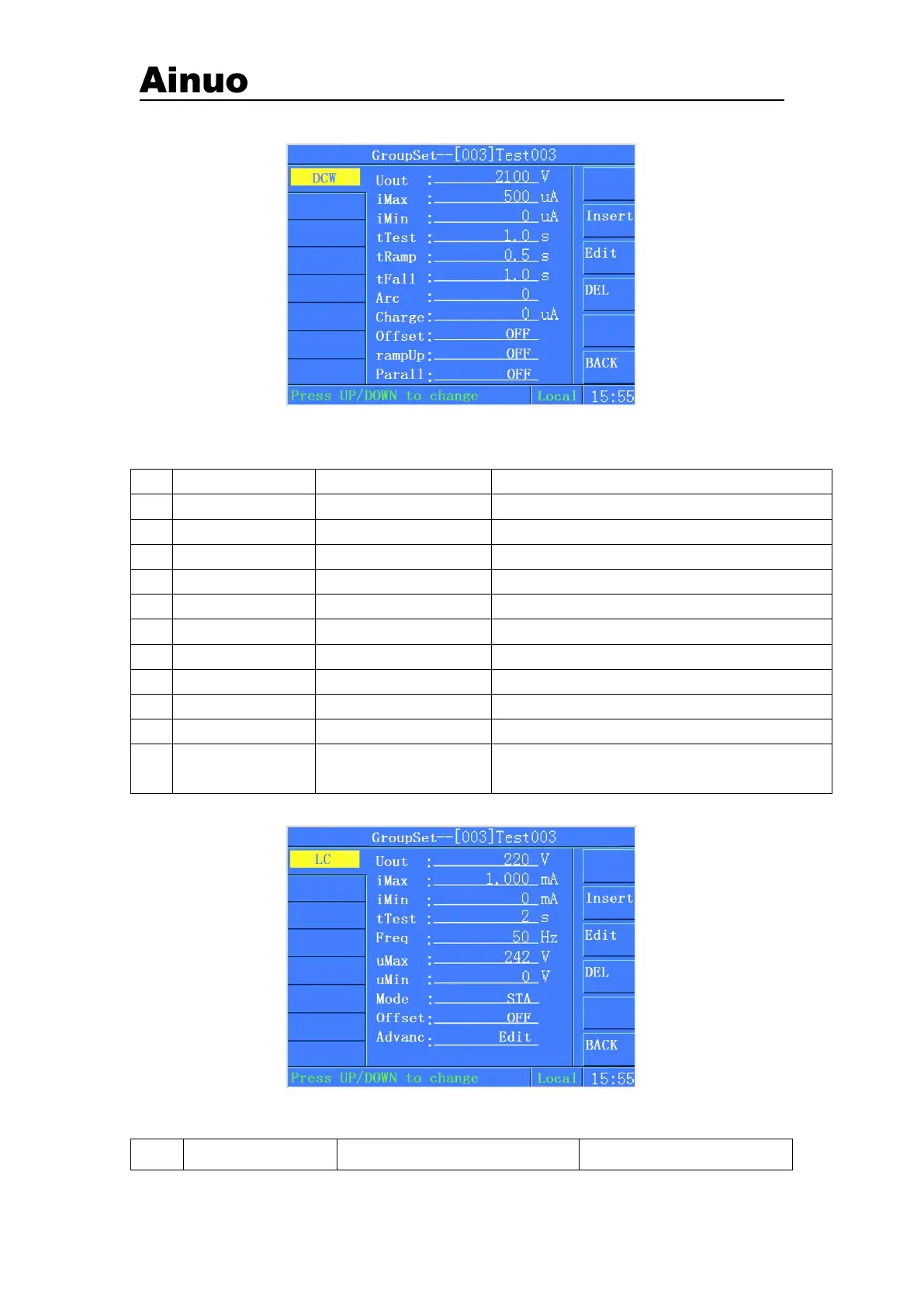

4.5.4 DCW Settings
Figure 4-5-5 DCW Settings
DCW Parameters:
No.
Item
Range
Description
1
Output voltage
(100~6000) V
DCW Output voltage
2
Current upper limit
(0~10000) uA
Breakdown current alarm upper limit
3
Current lower limit
(0~999.9)uA
Breakdown current alarm lower limit
4
Test time
(0.5~999.9)s/continuous
Test time of current step
5
Ramp time
(0.1~999.9) s
Voltage ramp time
6
Descent time
(1.0~999.9) s/OFF
Voltage descent time
7
Arc level
0~9
Arc test alarm level
8
Charge lower limit
(0~350) uA
Upper limit to judge peak current during charge
9
Compensation Test
ON/OFF
Include the compensation value or not
10
Ramp upper limit
ON/OFF
Whether to judge alarm upper limit during ramp
11
Parallel switch
ON/OFF
Whether it can be tested in parallel with the
ground test step of the previous step
4.5.5 LC Settings
Figure 4-5-6Settings of TC
Parameters for LC:
No.
Item
Range
Description
