Chapter 4 Settings and Test
35
1
Output Voltage
(80.0~300.0)V
Output voltage for LC
2
Current Upper Limit
Rms 0.0μA~12.00mA
Touch current upper limit
3
Current Lower Limit
As above
Touch current lower limit
4
Test Time
(0.5~999.9)s，0= continuous test
Test time of current step
5
Test Frequency
50Hz/60Hz
Output Frequency
6
Voltage Upper Limit
(80.0~300.0)V
Output voltage upper limit
7
Voltage Lower Limit
(80.0~300.0)V
Output voltage lower limit
8
Test Mode
Dynamic/Static
Test Mode of LC
9
Judge Mode
Max/Final value
Judge the result based on the
Max/final value
10
Advance
Setup the Power State
4.5.6PA Settings

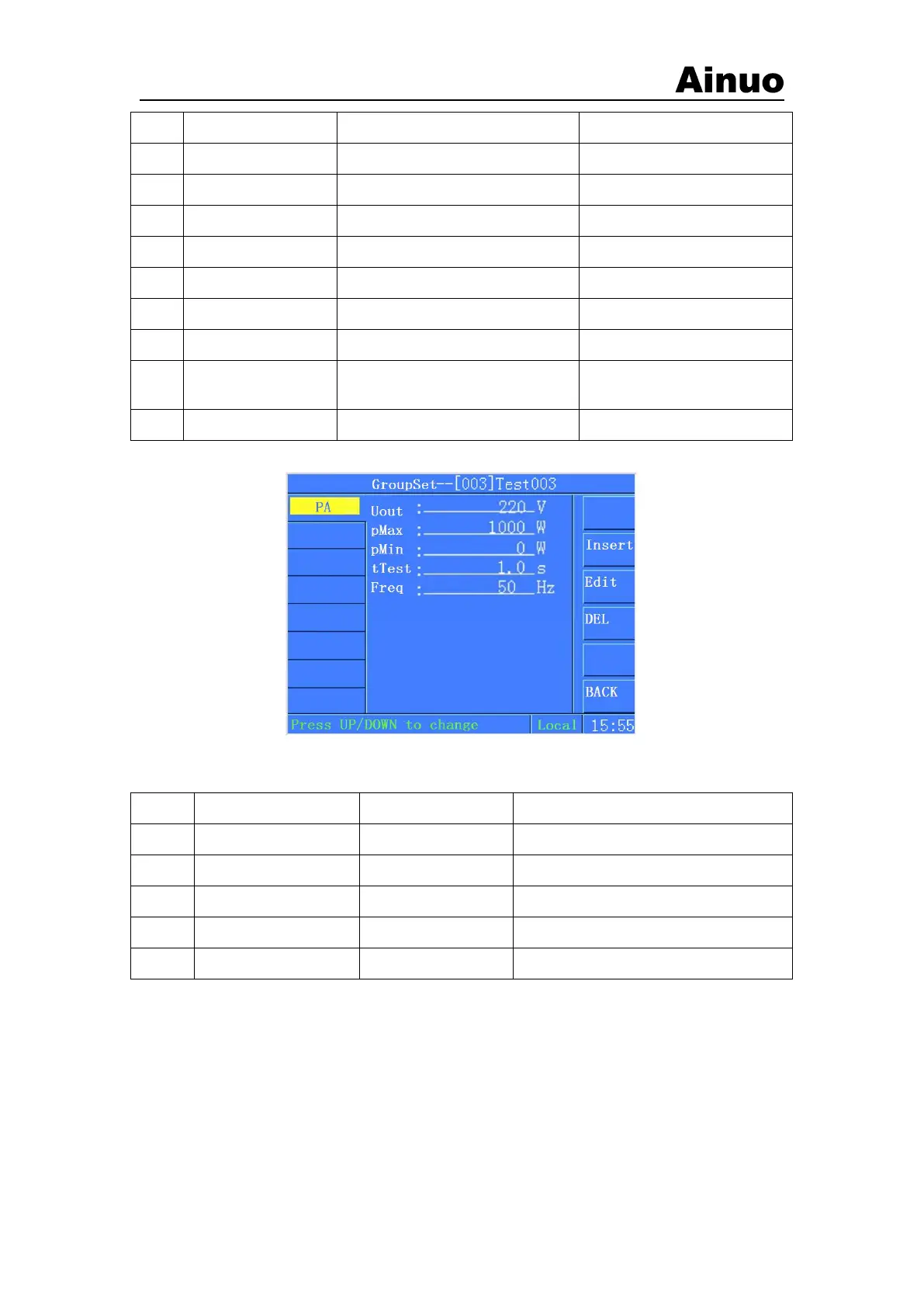

Figure 4-5-7 Settings of PA
Parameters for PA:
No.
Item
Range
Description
1
Output Voltage
(0.0~300.0)V
Output voltage of PA
2
Power Upper Limit
(0.00~6000)W
Power alarm upper limit
3
Power Lower Limit
(0.00~6000)W
Power alarm lower limit
4
Test Time
(0.00~999.9)s
Test time of current step
5
Test Frequency
50Hz/60Hz
Output Frequency
