Chapter 4 Settings and Test
38

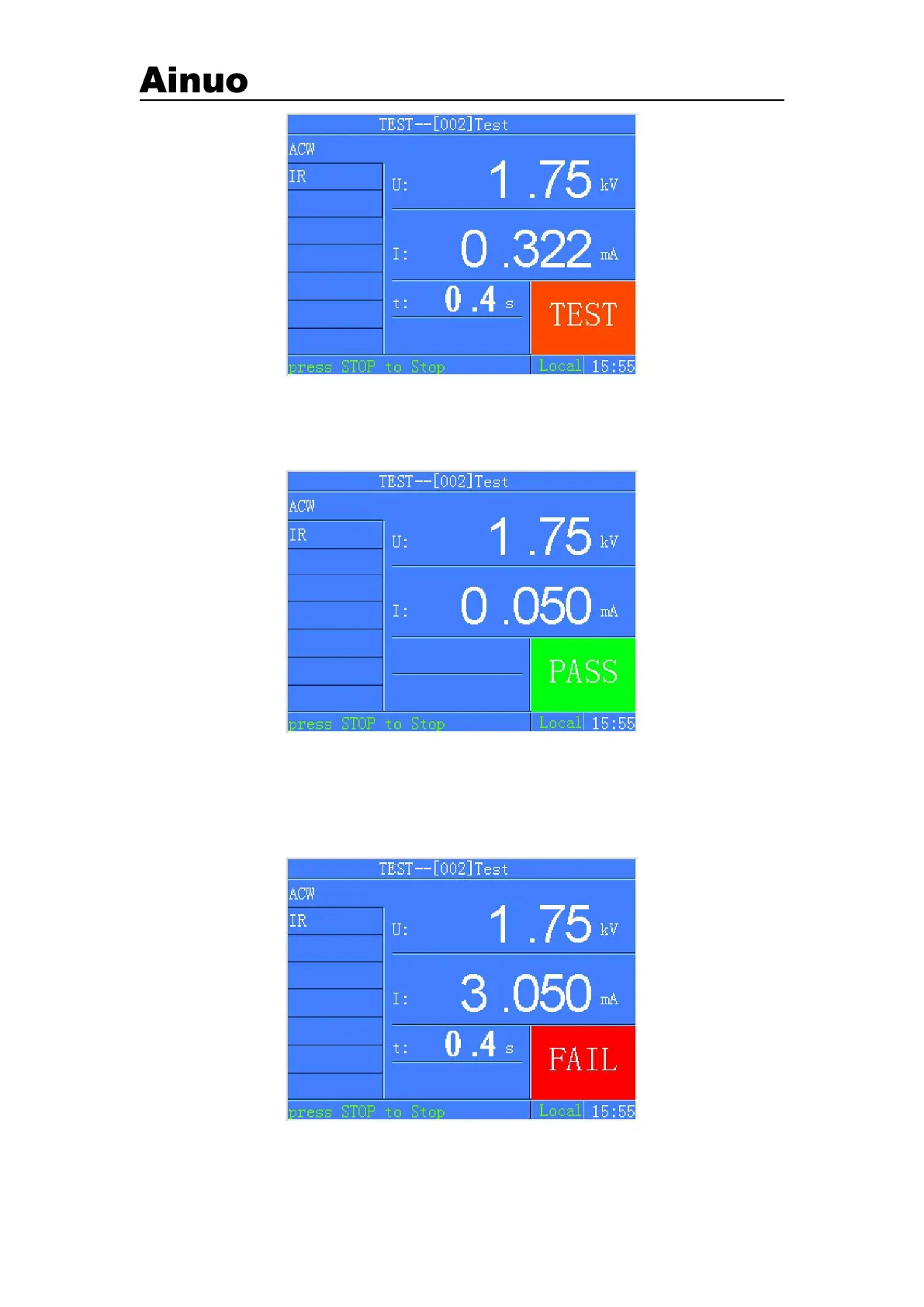

Figure 4-6-2 Testing process
Now, TEST lamp turn to yellow on the front panel, and ALARM light port gives TESTING signal.
2) Test Pass, as shown in Figure 4-6-3.
Figure 4-6-3 All test items pass
If all test items pass, PASS led turn to green on the front panel, and ALARM light port gives PASS
signal.
3) Test failed or is abnormal, as shown in Figure 4-6-4, 4-6-5.
Figure 4-6-4 Test failed
