96 Configure and Program the Controller
b. Choose Advanced.
4. Browse to the controller in the primary chassis.
5. Select the controller and choose Download.
The Download diaglog opens.
6. Choose Download.

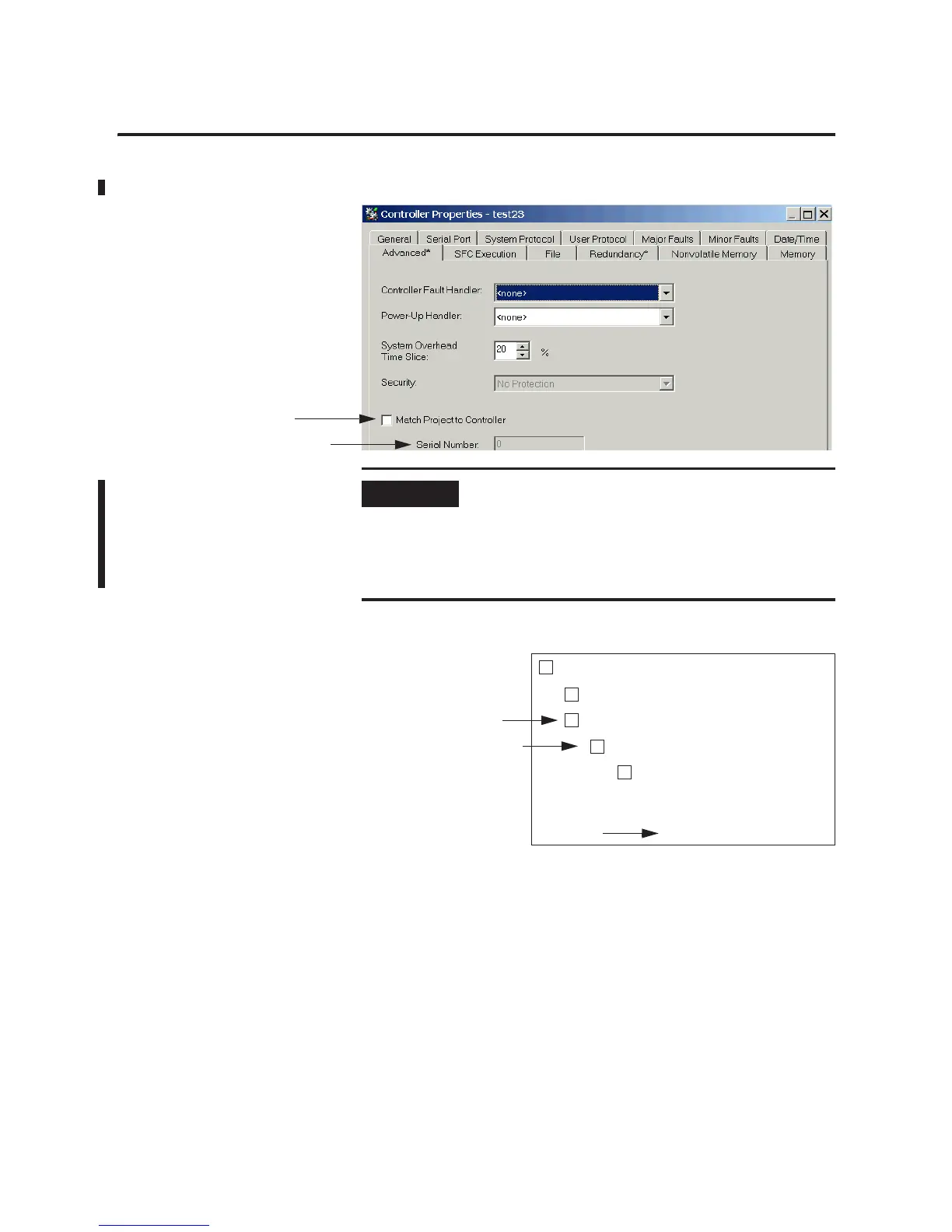

c. Leave unchecked Match
Project to Controller.
IMPORTANT
If you match your downloaded project to your controller, you tie
your project to your controller’s serial number. If you then
switch over to a controller in a different chassis, your project
will not match the new controller’s serial number, disabling the
controller functions originally specified under the Advanced tab
of Controller Properties
A. Open a branch in one of these ways:
• Double-click it.
• Click its + sign.
• Select it and press the
→ key.
B. Find the primary chassis. Its communication
module uses the address that you gave it.
Workstation
Linx Gateways, Ethernet
My_Network
n, 1756 communication module
Backplane, 1756-Ax
C. Find the controller.
xx, 1756 controller
−
+
−
−
−
