Publication 1756-UM523F-EN-P - December 2006
54 Configure the System Redundancy Module
Before You Begin
RSLinx software includes and automatically installs the 1757-SRM
System Redundancy Module configuration tool.
Actions

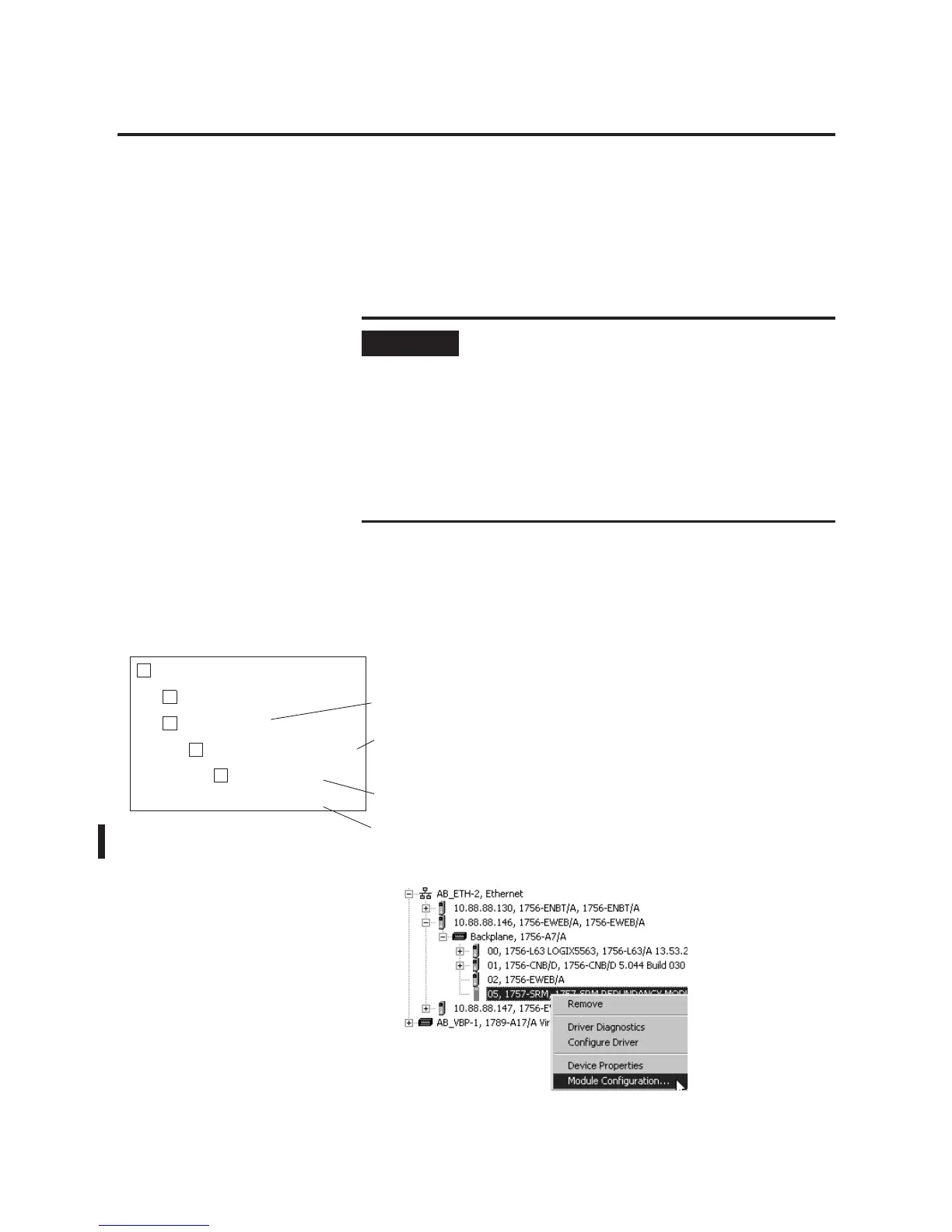

1. Start RSLinx software.
2. From the Communications menu, choose RSWho.
3. Double-click the network to open it.
4. Double-click the communication module in the primary chassis
to show the backplane.
5. Double-click the backplane to see its modules.
6. Right-click the 1757-SRM module and select Module
Configuration.
IMPORTANT
Check your revision of the SRM configuration tool when you
open it for the first time.
• The revision of tool that you get depends on your version of
RSLinx software.
• Some revisions of the SRM configuration tool are not
compatible with some revisions of a ControlLogix
Redundancy system.
The next section shows you how to see if your revision of the
SRM configuration tool is right for your redundancy system.
Workstation
Linx Gateways, Ethernet
My_Network
n, 1756 communication module
Backplane, 1756-Ax
xx, 1757-SRM
−
+
−
−
−
