Allen-Bradley MicroLogix 1200 User Manual

Publication 1762-UM001D-EN-P - March 2004
3-14 Wiring Your Controller

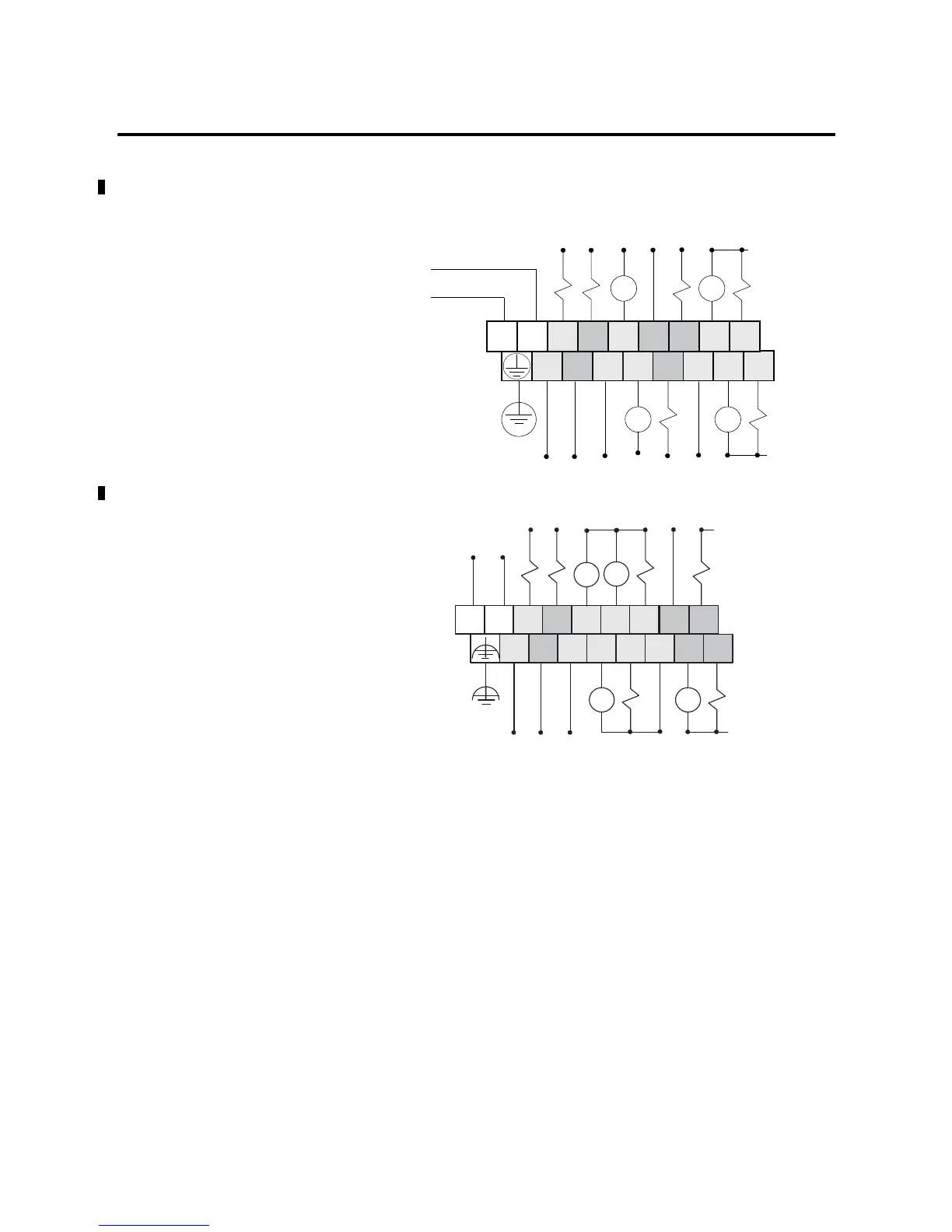

Figure 3.12 1762-L24AWA , 1762-L24BWA, 1762-L24AWAR, and 1762-L24BWAR
Output Wiring Diagram
Figure 3.13 1762-L24BXB and 1762-L24BXBR Output Wiring Diagram
CR CR
CRCR
L2
L1
-DCa
+DCa L1a L1b
L2d
L2c L1d
L2a L2b
L2b
L1c
L2d
L2c
VAC
L1
VAC
NEUT
VAC
DC 0
VAC
DC 1
VAC
DC 2
OUT 3 VAC
DC 4
OUT 4 OUT 7 OUT 9
OUT 0 OUT 1 OUT 2 VAC
DC 3
OUT 5 OUT 6 OUT 8
CR
CRCR
+DC
-DCa -DCb -DCc
+DCa +DCb +DCc
-DCc
L1d
L2d
L2d
-DC
+24
VDC
VDC
NEUT
VAC
DC 0
VAC
DC 1
VDC
2
OUT
3
COM
2
OUT
5
OUT
7
OUT
9
OUT
0
OUT
1
OUT
2
OUT
4
OUT
6
VAC
OUT
8
DC 3
CR

Allen-Bradley MicroLogix 1200 Specifications

General

Series	MicroLogix 1200
Type	Programmable Logic Controller (PLC)
Mounting	DIN rail or panel mount
Programming Language	Ladder Logic
Programming Software	RSLogix 500
I/O Points	Up to 40
Communication Ports	RS-232, RS-485
Memory	6 KB user memory
Power Supply	24V DC or 120/240V AC
Expansion	Supports expansion I/O modules
Operating Temperature	0°C to 55°C (32°F to 131°F)
Dimensions	90 mm x 110 mm
Weight	0.5 kg (1.1 lbs)
