134 Using the High-Speed Counter and Programmable Limit Switch
PLS Example
Setting up the PLS File

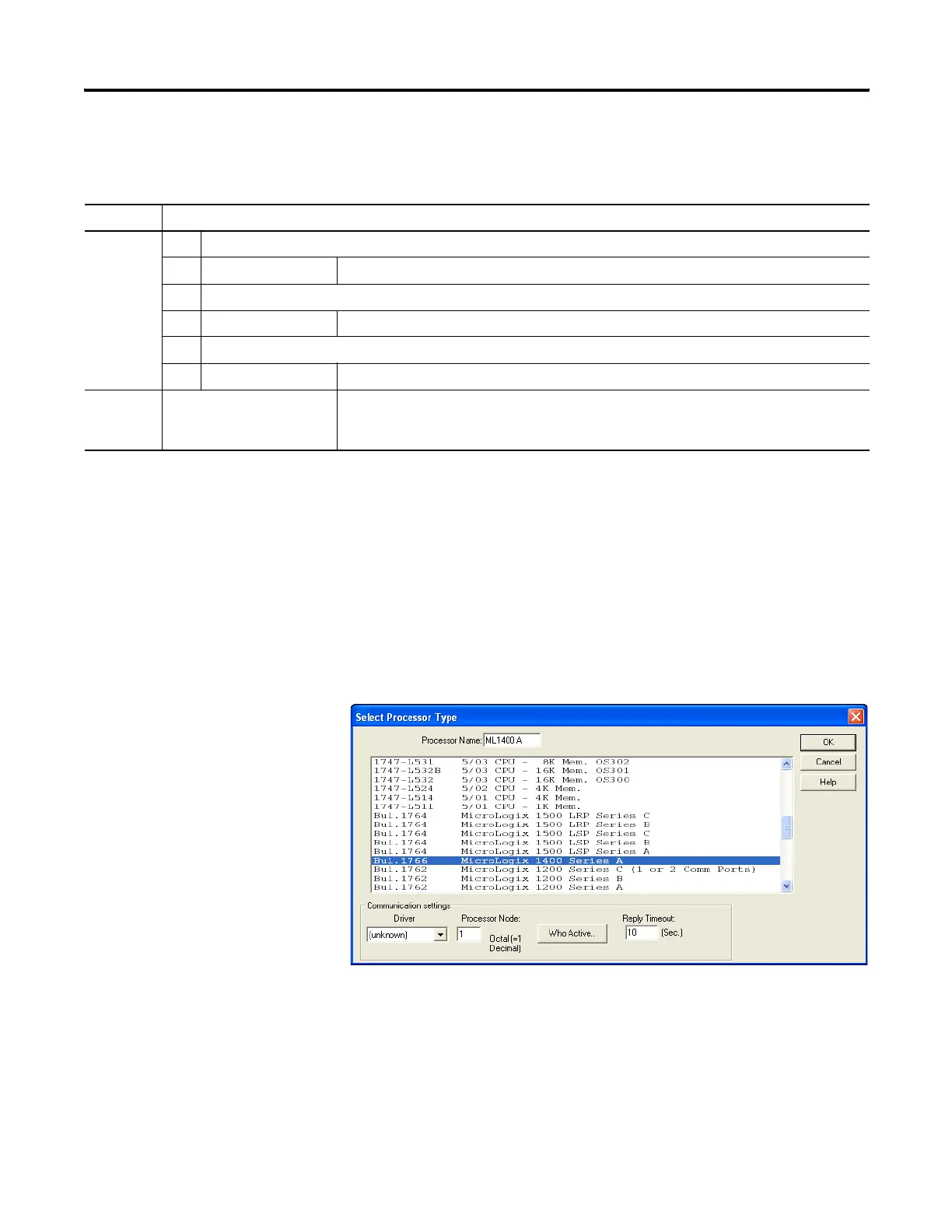

1. Using RSLogix 500/RSLogix Micro, create a new project, give it a
name and select the appropriate controller.
2. Right click on Data Files and select New.
Table 1:
Format Explanation
PLSf:e.s PLS Programmable Limit Switch file
f File number The valid file number range is from 9…255.
: Element delimiter
e Element number The valid element number range is from 0…255.
. Sub-Element delimiter
s Sub-Element number The valid sub-element number range is from 0…5
Examples: PLS10:2
PLS12:36.5
PLS File 10, Element 2
PLS File 12, Element 36, Sub-Element 5 (Output Low Source)
