54 Controller Memory and File Types

LCD Edit Disable

This allows selective protection of individual Data Files on the LCD. Using

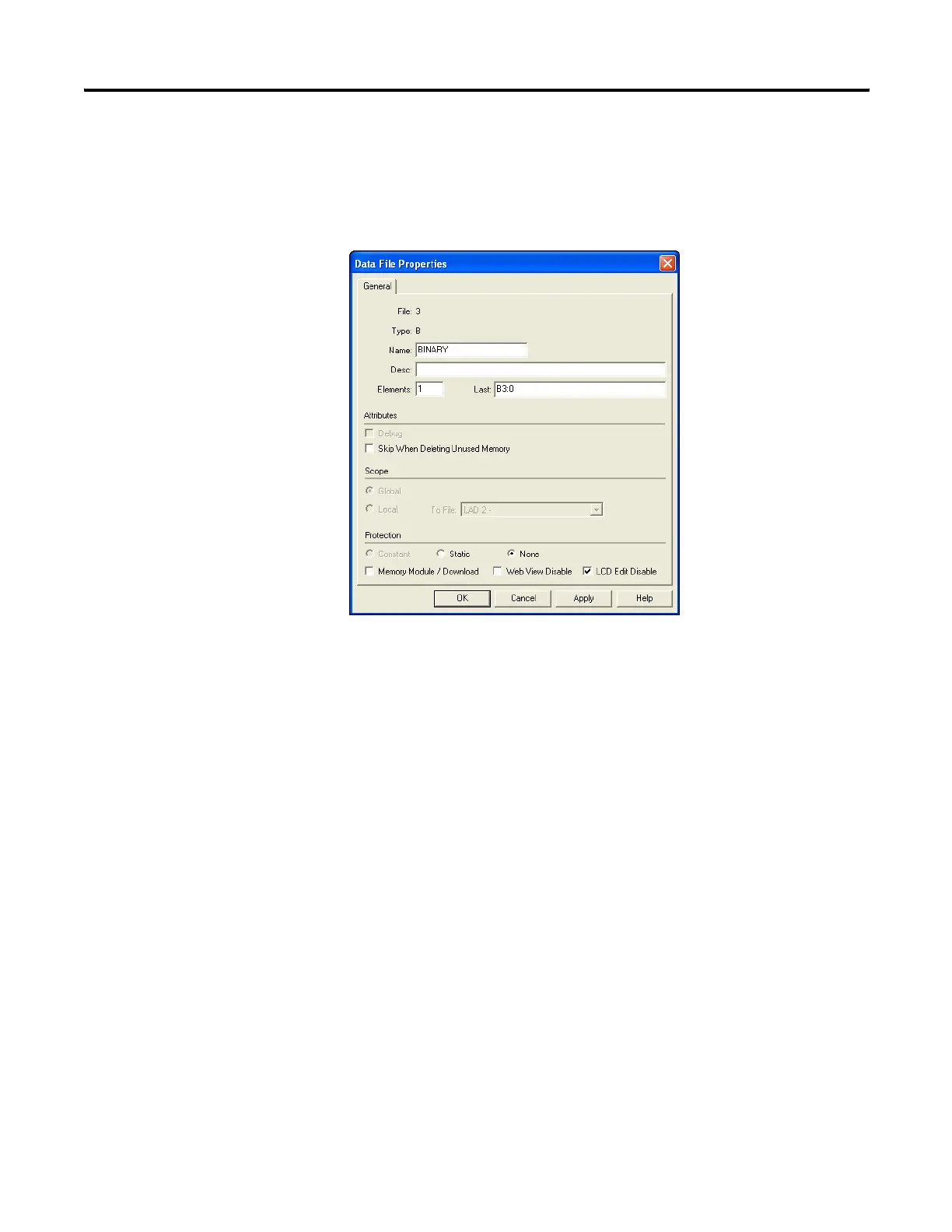

RSLogix 500/RSLogix Micro V8.10 and higher, select the data file’s

properties page and check the LCD Edit Disable check box as shown

below. Any data file property changes must be made offline and

downloaded to the processor.
