Allen-Bradley MicroLogix 1400 User Manual

Publication 1766-RM001A-EN-P - October 2008
Using High-Speed Outputs 143
The Done (DN) bit becomes true (1) when the PTO completes and
remains set until the PTO rung logic is false. The false rung logic
re-activates the PTO instruction. To detect when the PTO instruction
completes its output, monitor the done (DN) bit.
Pulse Train Outputs
(PTOX) Function File
Within the RSLogix 500/RSLogix Micro Function File Folder, you see a
PTOX Function File with three elements. These elements provide access
to PTO configuration data and also allow the control program access to all
information pertaining to each of the Pulse Train Outputs.

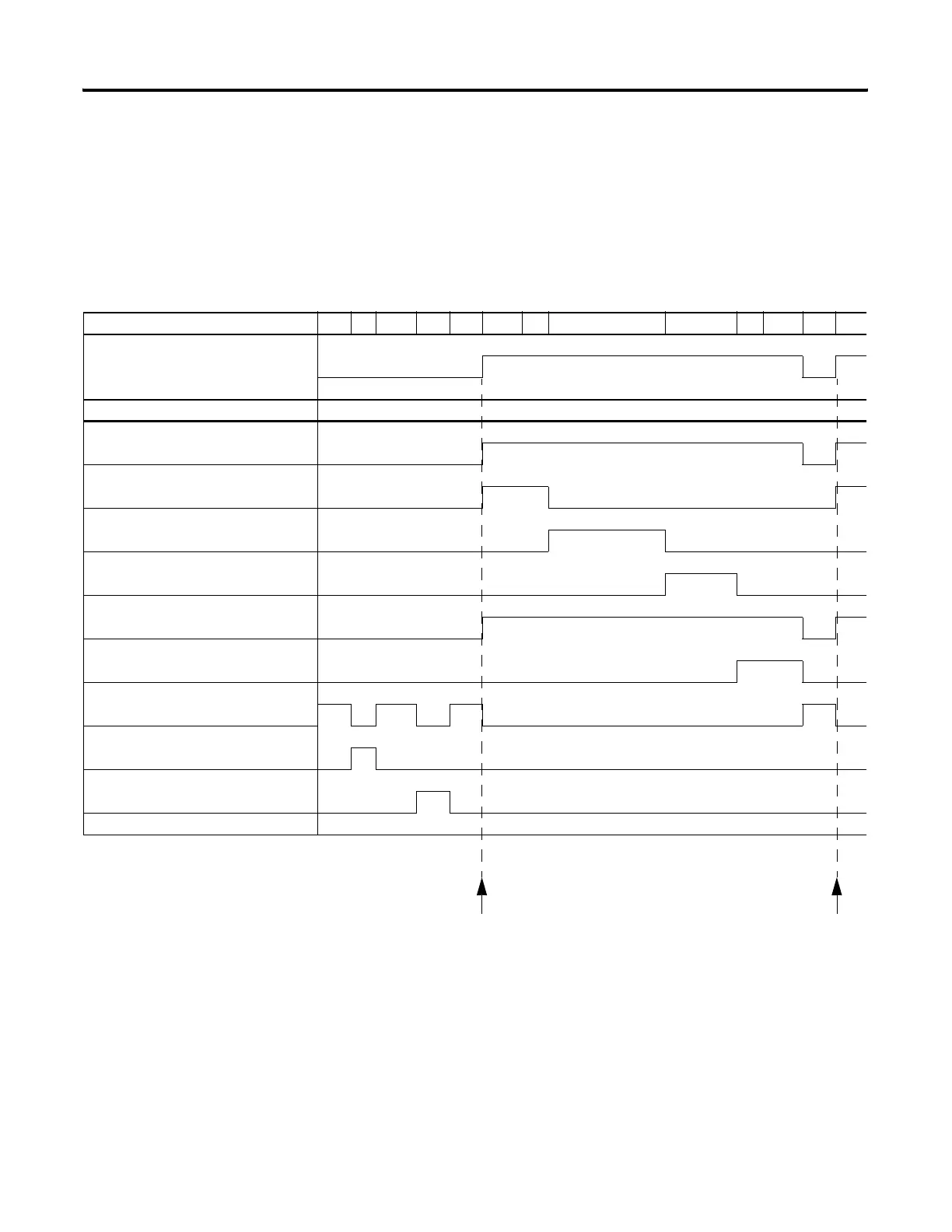

Stage 0 1 2 3 4 5 6 7 8 9 10 11 12
Rung State
Sub-Elements: Relative Timing
Normal Operation /NO
Accelerate Status /AS
Run Status /RS
Decelerate Status /DS
Enable /EN
Done /DN
Idle /ID
Jog Pulse /JP
Jog Continuous /JC
Start of PTO Start of PTO
efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive

Allen-Bradley MicroLogix 1400 Specifications

General

Processor	32-bit
Expansion Modules	Up to 7 expansion I/O modules
Power Supply	24V DC or 120/240V AC
Programming Software	RSLogix 500
Communication Ports	Ethernet, RS-232/RS-485 combo port
Controller Type	Programmable Logic Controller (PLC)
Series	MicroLogix
Digital Outputs	12
Analog Inputs	6 (embedded)
Analog Outputs	2 (embedded)
High-Speed Counter	6 high-speed counters
Pulse Output	2 (embedded)
Ethernet Port	Yes
