# 17446 “Quick Start”
Pulse Width Modulation
(PWMX)
NOTE: The PTO and PWM functions are only available when using the
BXB or BXBA models of the MicroLogix 1400.

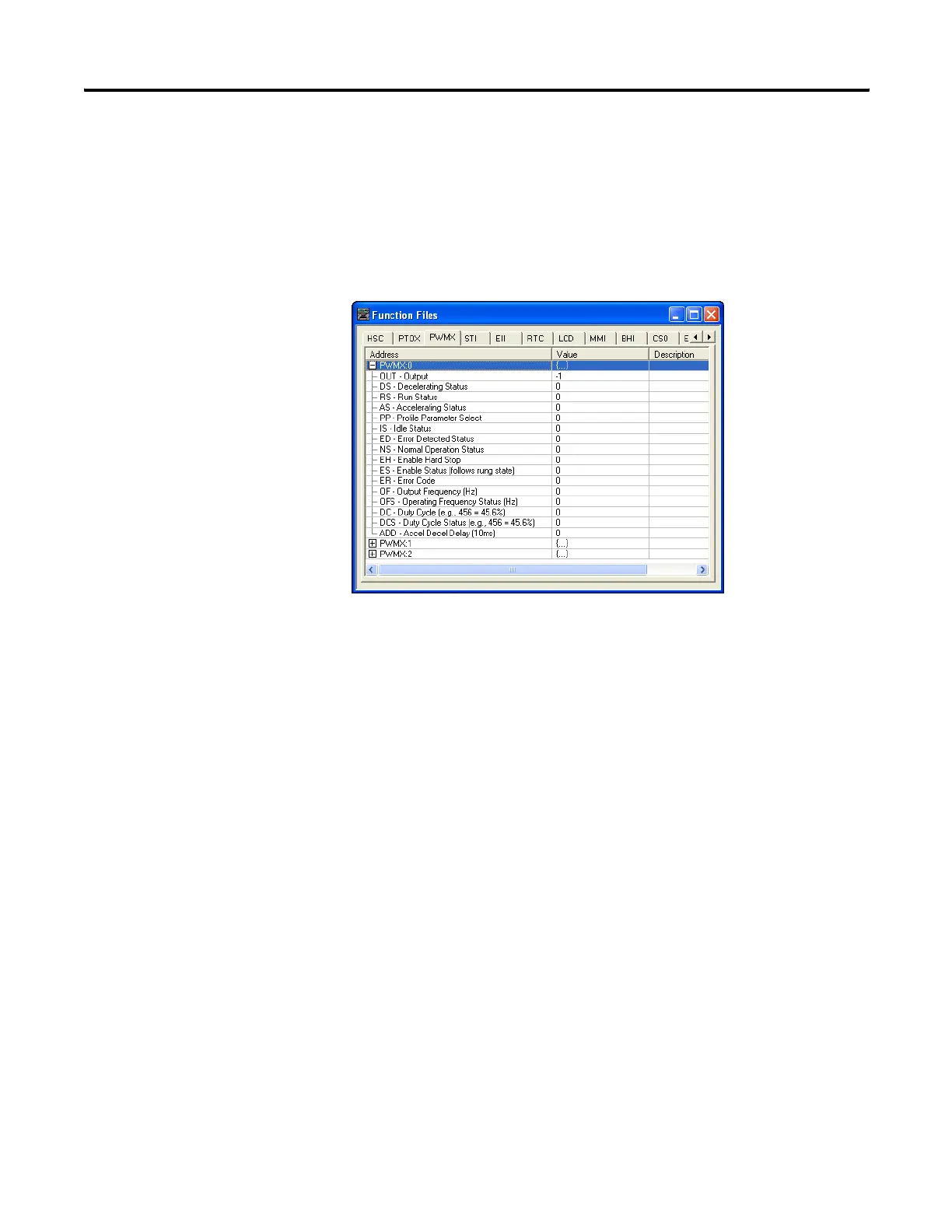

Locate the Function Files under Controller in RSLogix 500/RSLogix Micro
v8.10.00 or later and select the PWMX tab, then select the [+] next to
PWMX:0 (See Below).
Enter the following parameters as the “Minimum Configuration” required
for the PWM to generate a waveform at the specified frequency.
PWMX:0.OUT Select Destination Output for pulses: Output O:0/2, O:0/3 or O:0/4
PWMX:0.OFS Output Frequency - Frequency of the PWM: 0…40,000 Hz
PWMX:0.DC PWM Duty Cycle - Controls the output signal of the PWM: 1…1000
DC = 1000 100% Output ON (Constant no waveform)
DC = 0750 075% Output ON 025% Output OFF
DC = 0500 050% Output ON 050% Output OFF
DC = 0250 025% Output ON 075% Output OFF
DC = 0000 000% Output OFF (Constant no waveform)
