Allen-Bradley MicroLogix 1400 User Manual

Publication 1766-RM001A-EN-P - October 2008
642 Knowledgebase Quick Starts
Note:This example was written using a ML1400 communicating to a
ML1000, however any DF1 or DH485 device could have been substituted
for the ML1000. (i.e. MicroLogix 1200, MicroLogix1500, SLC 5/03, 5/04, 5/
05, PLC-5, Bar Code Scanners, etc.)
# 17501 “Quick Start”
Selectable Timed
Interrupt (STI)
What is an Interrupt?
An interrupt is an event that causes the processor to suspend the task it is
currently performing, perform a different task, and then return to the
suspend task at the point where it suspended.
STI Definition
The STI provides a mechanism to solve time critical control requirements.
The STI is a trigger mechanism that allows you to scan or solve control
program logic that is time sensitive.
Example: A Block of logic that needs to be scanned more often then the
rest of the ladder program.
Getting Started:

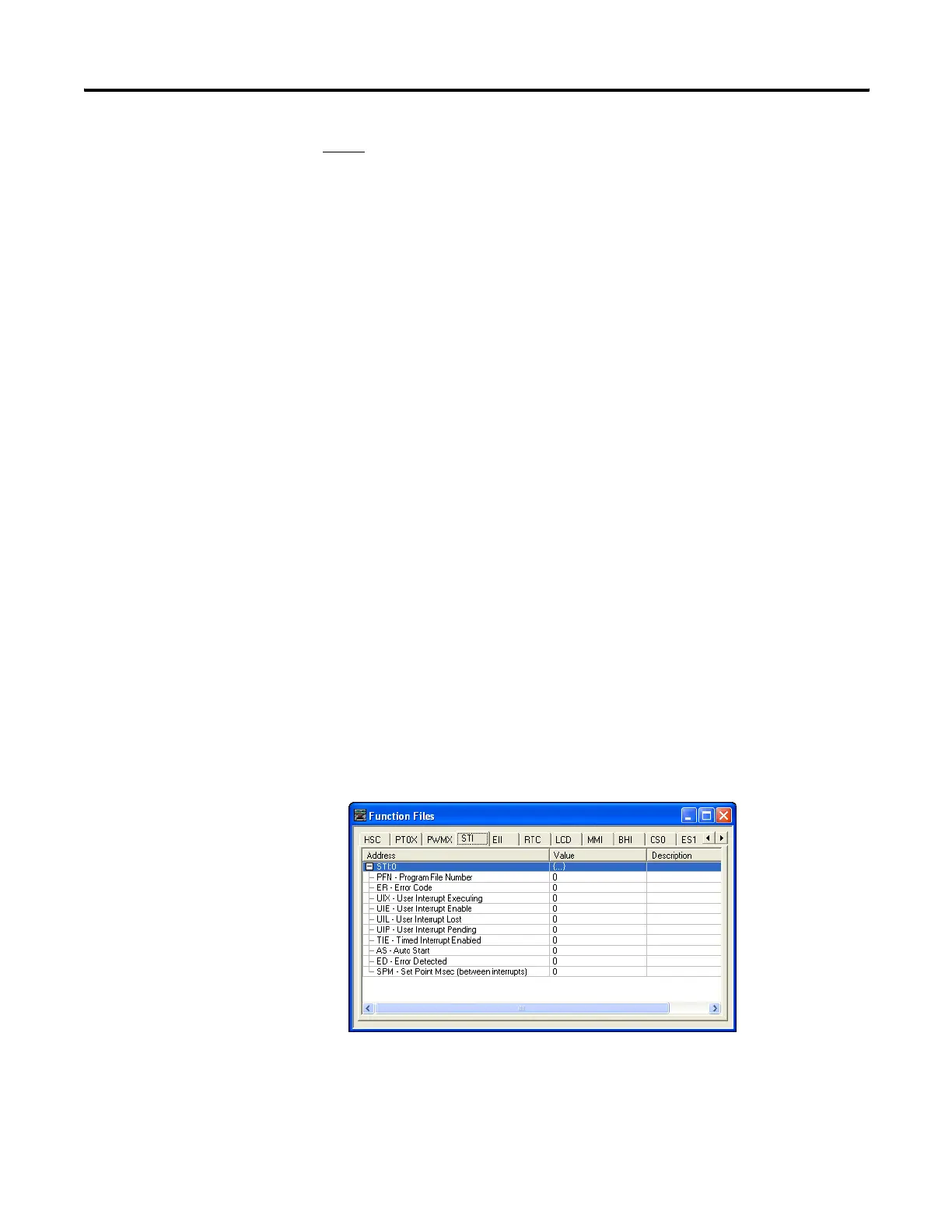

Locate the Function Files under Controller in RSLogix 500/RSLogix Micro
v8.10.00 or later and select the STI tab (See Below)
Enter the following parameters as the “Minimum Configuration” required
for the STI
efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive

Allen-Bradley MicroLogix 1400 Specifications

General

Processor	32-bit
Expansion Modules	Up to 7 expansion I/O modules
Power Supply	24V DC or 120/240V AC
Programming Software	RSLogix 500
Communication Ports	Ethernet, RS-232/RS-485 combo port
Controller Type	Programmable Logic Controller (PLC)
Series	MicroLogix
Digital Outputs	12
Analog Inputs	6 (embedded)
Analog Outputs	2 (embedded)
High-Speed Counter	6 high-speed counters
Pulse Output	2 (embedded)
Ethernet Port	Yes
