Publication 1766-RM001A-EN-P - October 2008
File Instructions 271
FLL - Fill File
Instruction Type: output

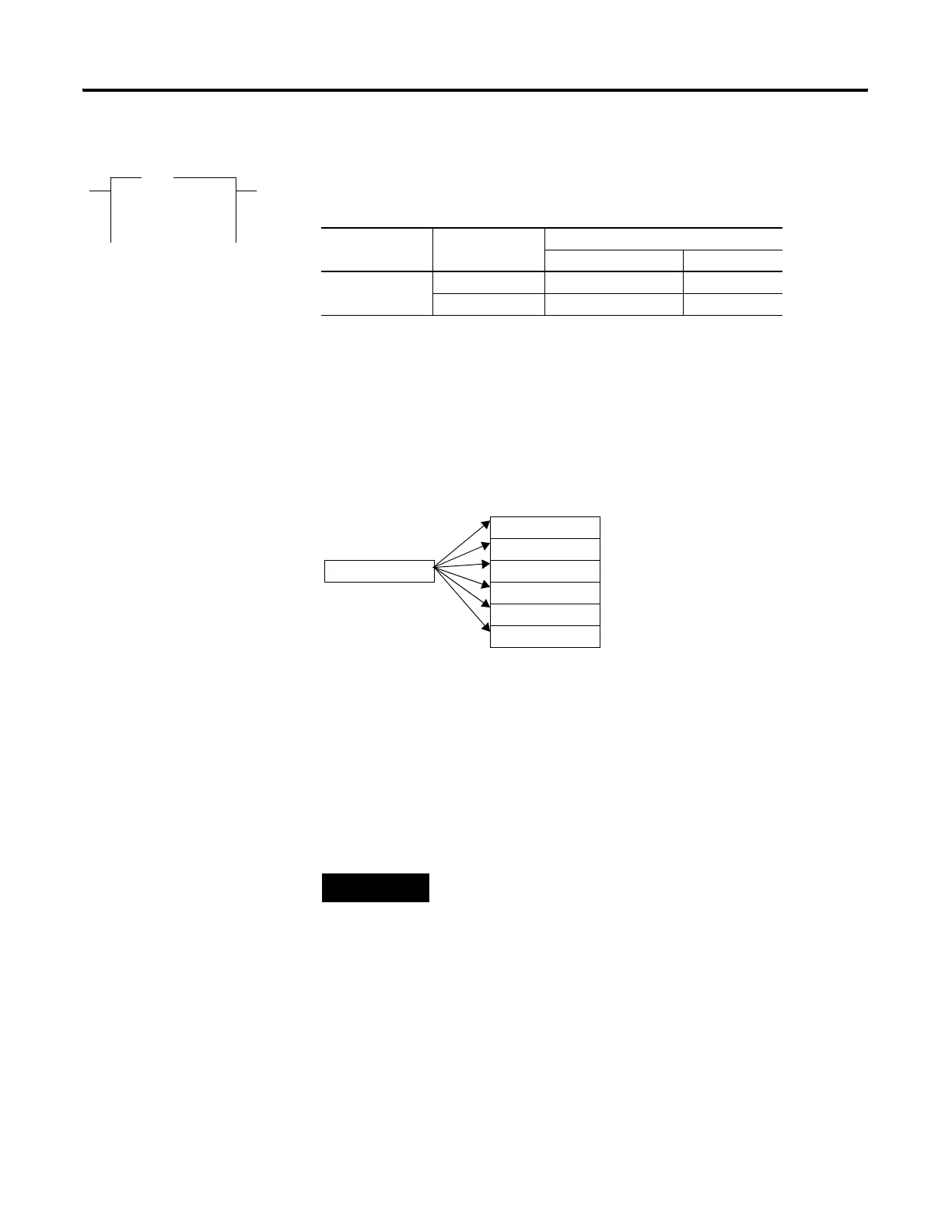

The FLL instruction loads elements of a file with either a constant or an
address data value for a given length. The following figure shows how file
instruction data is manipulated. The instruction fills the words of a file
with a source value. It uses no status bits. If you need an enable bit,
program a parallel output that uses a storage address.
This instruction uses the following operands:
• Source - The source operand is the address of the value or constant
used to fill the destination. The data range for the source is from
-32768…32767 (word) or -2,147,483,648…2,147,483,647 (long
word), or any IEEE-754 32-bit value.
• Destination - The starting destination address where the data is
written.
• Length - The length operand contains the number of elements. The
length can range from 1…128 (word), 1…64 (long word), or 1…42
(3 word element such as counter).
FLL
Fill File
Source N7:0
Dest #N7:1
Length 1
FLL
Execution Time for the FLL Instruction
Controller Data Size When Rung Is:
True False
MicroLogix 1400 word 3.1531 µs 0.5290 µs
long word 3.2470 µs 0.3918 µs
TIP
A constant cannot be used as the source in a timer (T), counter (C), or
control (R) file.
Destination
Source
Word to File
