Allen-Bradley MicroLogix 1400 User Manual

Publication 1766-RM001A-EN-P - October 2008
Using Interrupts 323
Each EII can be configured to monitor any one of the first eight inputs
(I1:0.0/0 to I1:0.0/7). Each EII can be configured to detect rising edge or
falling edge input signals. When the configured input signal is detected at
the input terminal, the controller immediately scans the configured
subroutine.

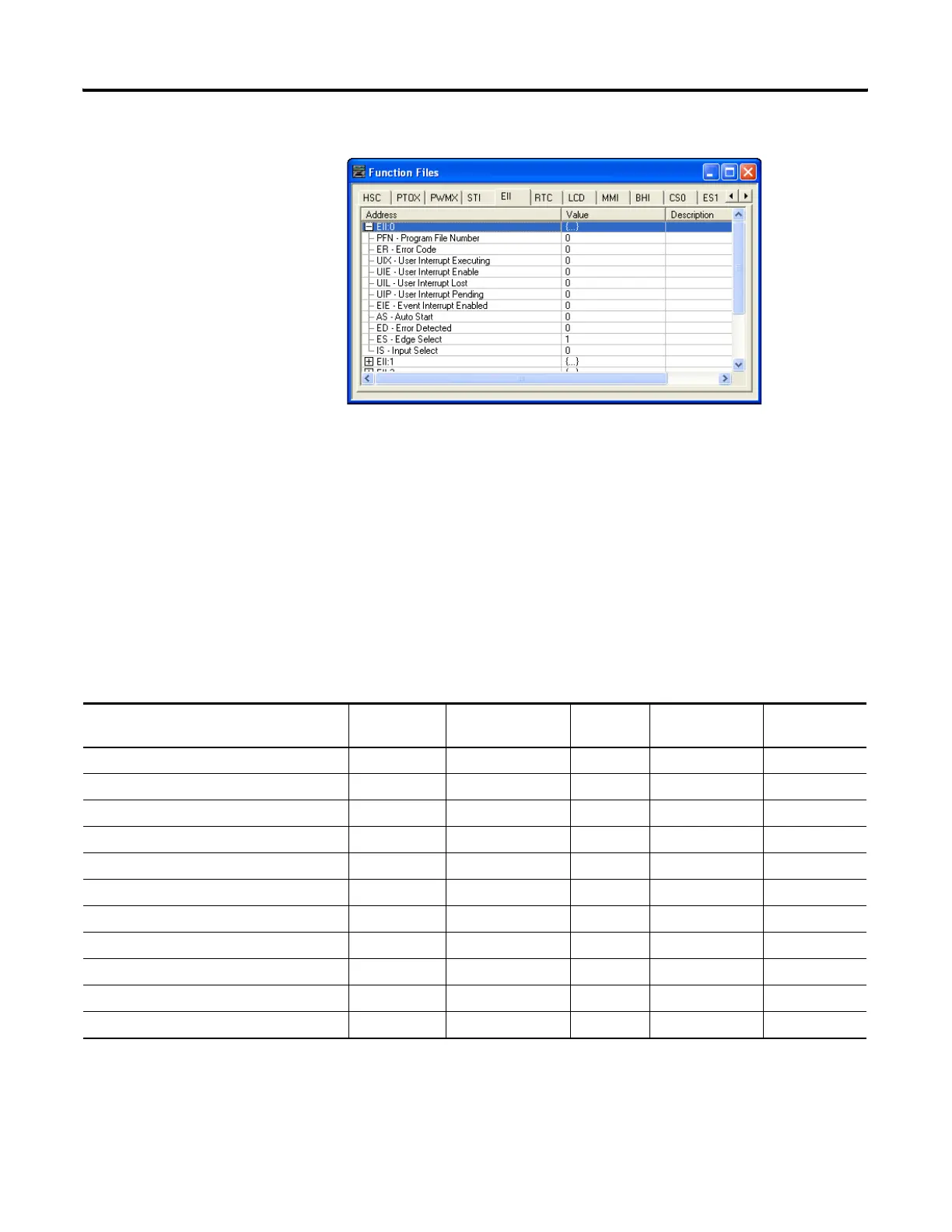

Event Input Interrupt (EII) Function File Sub-Elements Summary
Event Input Interrupt Function File (EII:0)
Sub-Element Description Address Data Format Type User Program
Access
For More
Information
PFN - Program File Number EII:0.PFN word (INT) control read only 324
ER - Error Code EII:0.ER word (INT) status read only 324
UIX - User Interrupt Executing EII:0/UIX binary (bit) status read only 325
UIE - User Interrupt Enable EII:0/UIE binary (bit) control read/write 325
UIL - User Interrupt Lost EII:0/UIL binary (bit) status read/write 325
UIP - User Interrupt Pending EII:0/UIP binary (bit) status read only 326
EIE - Event Interrupt Enabled EII:0/EIE binary (bit) control read/write 326
AS - Auto Start EII:0/AS binary (bit) control read only 326
ED - Error Detected EII:0/ED binary (bit) status read only 327
ES - Edge Select EII:0/ES binary (bit) control read only 327
IS - Input Select EII:0.IS word (INT) control read only 327
efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive

Allen-Bradley MicroLogix 1400 Specifications

General

Processor	32-bit
Expansion Modules	Up to 7 expansion I/O modules
Power Supply	24V DC or 120/240V AC
Programming Software	RSLogix 500
Communication Ports	Ethernet, RS-232/RS-485 combo port
Controller Type	Programmable Logic Controller (PLC)
Series	MicroLogix
Digital Outputs	12
Analog Inputs	6 (embedded)
Analog Outputs	2 (embedded)
High-Speed Counter	6 high-speed counters
Pulse Output	2 (embedded)
Ethernet Port	Yes
