Allen-Bradley MicroLogix 1400 User Manual

Publication 1766-RM001A-EN-P - October 2008
Socket Interface Using CIP Generic Messaging 493
CreateSocket
The CreateSocket service creates an instance of the Socket object. The
service returns an instance number that you use in the subsequent socket
operations.
Call the CreateSocket service with instance 0 (Socket object class).
MSG Configuration Parameters

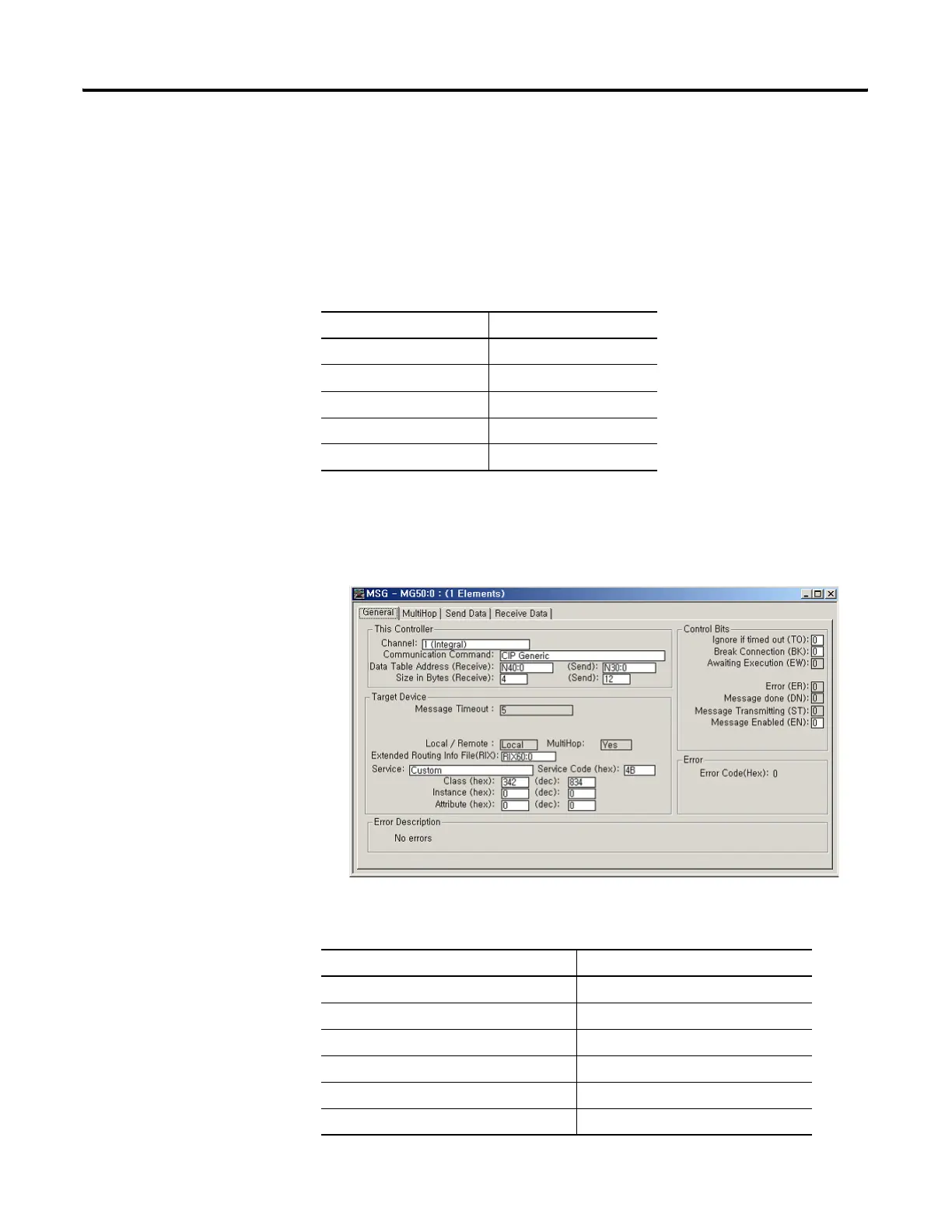

To call this service, click "Setup Screen" in the MSG instruction and enter
the values displayed below.
Configure the MSG with these values:
Parameter Value
Service Type CreateSocket
Service Code 4B (hexadecimal)
Class 342 (hexadecimal)
Instance 0
Attribute 0
CIP Generic Msg Parameter Description
Channel 1 (Integral)
Communication Command CIP Generic
Service Custom
Service Code 4B (hexadecimal)
Class 342 (hexadecimal)
Instance 0
