Allen-Bradley MicroLogix 1400 User Manual

Publication 1766-RM001A-EN-P - October 2008
Socket Interface Using CIP Generic Messaging 495
OpenConnection
The OpenConnection service does one of the following:
• For TCP, opens a TCP connection with the specified destination
address.
• For UDP, associates a destination IP address and port number with
the specified socket.
MSG Configuration Parameters

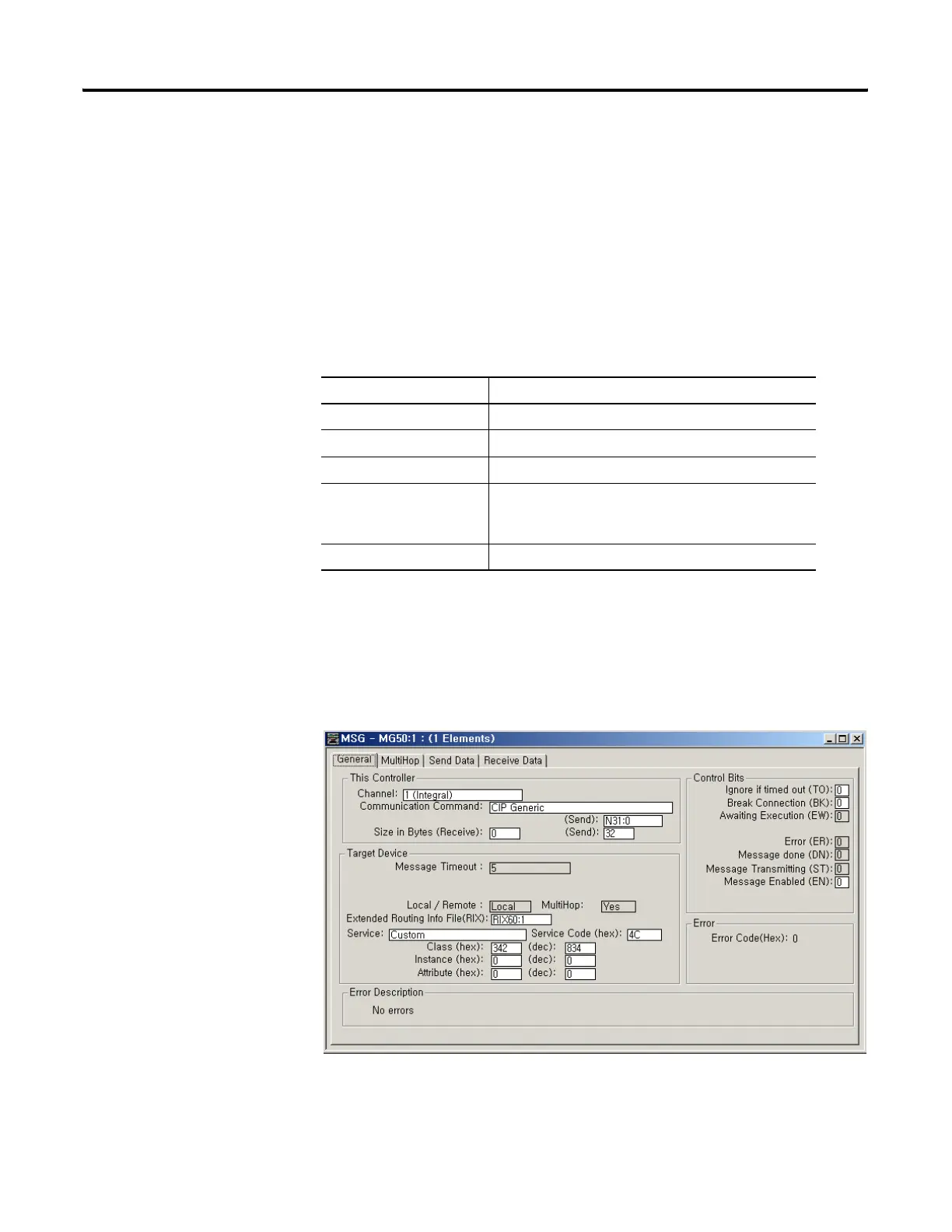

To call this service, click "Setup Screen" in the MSG instruction and enter
the values displayed below.
Parameter Value
Service Type OpenConnection
Service Code 4C (hexadecimal)
Class 342 (hexadecimal)
Instance 0. Use a relay ladder instruction to move the returned
instance number from a CreateSocket service into the
MGx:y.TFN element of a MSG instruction
Attribute 0
