Allen-Bradley MicroLogix 1400 User Manual

Publication 1766-RM001A-EN-P - October 2008
506 Socket Interface Using CIP Generic Messaging
MSG Configuration Parameters

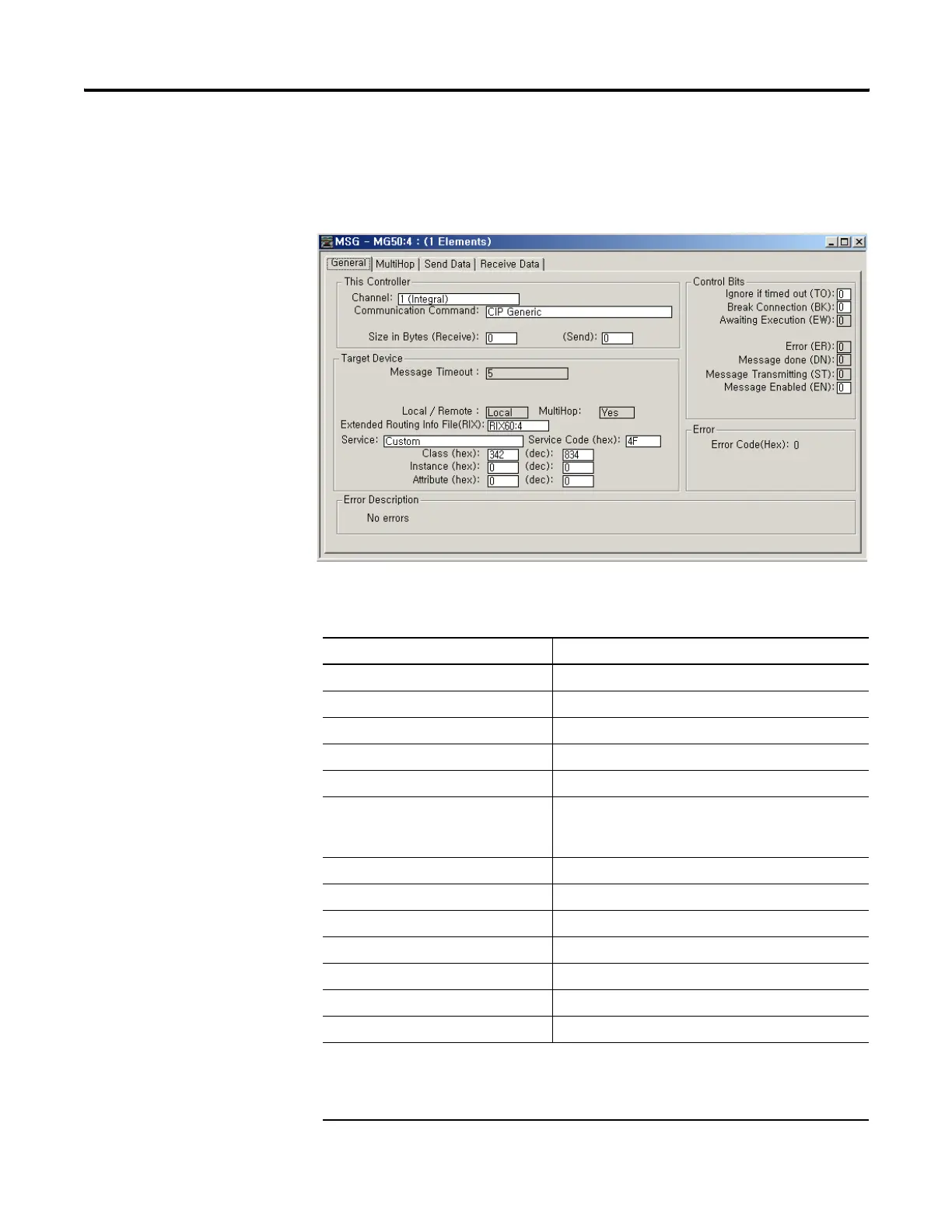

To call this service, click "Setup Screen" in the MSG instruction and enter
the values displayed below.
Configure the MSG with these values:
CIP Generic Msg Parameter Description
Channel 1 (Integral)
Communication Command CIP Generic
Service Custom
Service Code 4F (hexadecimal)
Class 342 (hexadecimal)
Instance 0 Use a relay ladder instruction to move the returned
instance number from a CreateSocket service into the
MGx:y.TFN element of a MSG instruction.
Attribute 0
Data Table Address (Send) Not used.
Size in Bytes (Send) 0 bytes
Data Table Address (Receive) Not used.
Size in Bytes (Receive) 0 bytes
Extended Routing Info File(RIX) Specify RIX file
To Address in MultiHop tab 127.0.0.1
Considerations :
Delete a socket instance if it is no longer needed. If unused instances are not deleted and you
continue to create additional instances, you can exceed the maximum number of instances.
