Allen-Bradley MicroLogix 1400 User Manual

Publication 1766-RM001A-EN-P - October 2008
630 Knowledgebase Quick Starts

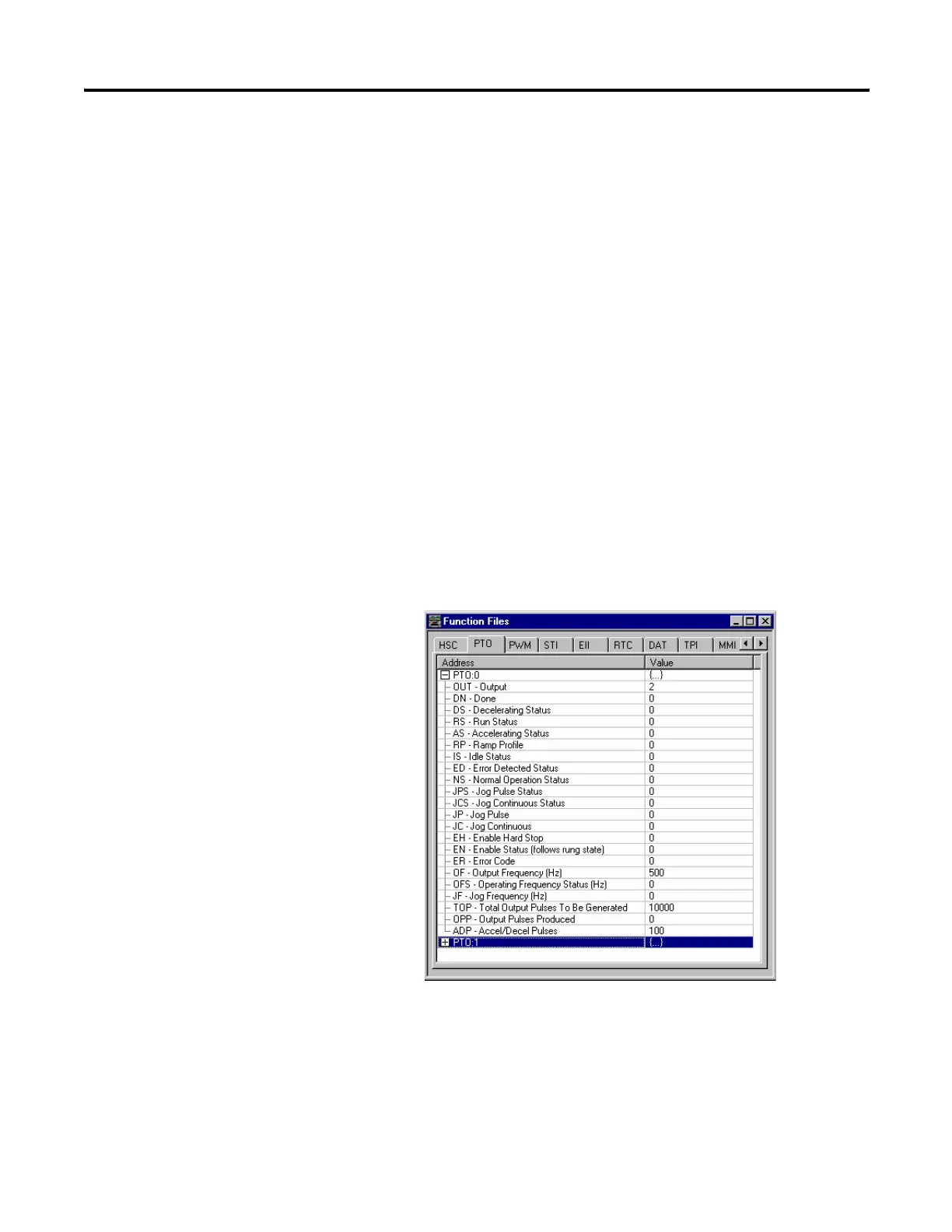

Enter the following parameters as the “Minimum Configuration” required
for the PTO to generate pulses.
Example
The following example will generate 10,000 pulses on Output O:0/2 at a
frequency of 500Hz and 100 pulses will be used for Accelerating and 100
pulses will be used for Decelerating.
PTOX:0.OUT Select Destination Output for pulses: Output O:0/2, O:0/
3 or O:0/4
PTOX:0.OF Output Frequency - Frequency of pulses: 0…100,000 Hz
Data less then zero and greater then 100,000 generates a
PTOX error
PTOX:0.TOP Total Output Pulses - Determines total number of pulses
to be generated by the controller
PTOX:0.ADP Accel/Decel Pulses - How many of the total pulses will
be used for the Accel/Decel component
efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive

Allen-Bradley MicroLogix 1400 Specifications

General

Processor	32-bit
Expansion Modules	Up to 7 expansion I/O modules
Power Supply	24V DC or 120/240V AC
Programming Software	RSLogix 500
Communication Ports	Ethernet, RS-232/RS-485 combo port
Controller Type	Programmable Logic Controller (PLC)
Series	MicroLogix
Digital Outputs	12
Analog Inputs	6 (embedded)
Analog Outputs	2 (embedded)
High-Speed Counter	6 high-speed counters
Pulse Output	2 (embedded)
Ethernet Port	Yes
