Allen-Bradley MicroLogix 1400 - # 17501 Quick Start Selectable Timed Interrupt (STI)

Publication 1766-RM001A-EN-P - October 2008
640 Knowledgebase Quick Starts

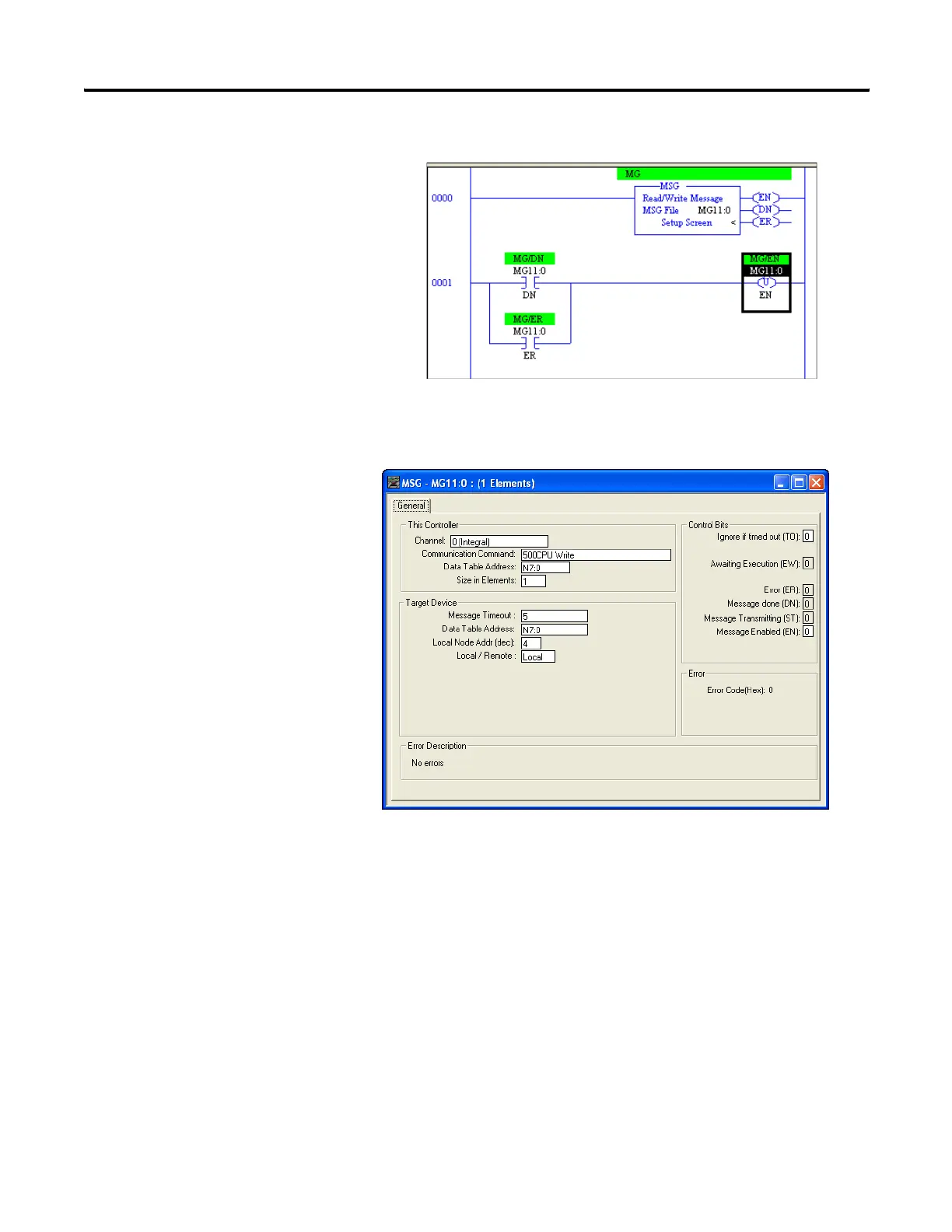

MicroLogix 1400 (Node 1) Ladder Logic
MSG Setup Screen
Micrologix 1000 (Node 4) Ladder Logic
No ladder logic is required in the destination processor, however the
communications channel must be configured to match the source
processor. Since the default settings for the ML1400 communications
channel is DF1 protocol, 19,200 Kbaud the ML1000 must be configured to
match. (See Below)
