220 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017
Chapter 7 Configure Switch Features
You can configure redundant gateways on switches that are either ring
supervisors or ring nodes.
Figure 16 shows two Stratix 5700 switches that are configured as ring
supervisors with redundant gateway:
• One switch is configured as the active ring supervisor and also the active
redundant gateway.
• The other switch is configured as a backup ring supervisor and the
backup redundant gateway.
In this example, the switch acts as a ring supervisor. The switch also manages
redundant gateway switchovers.

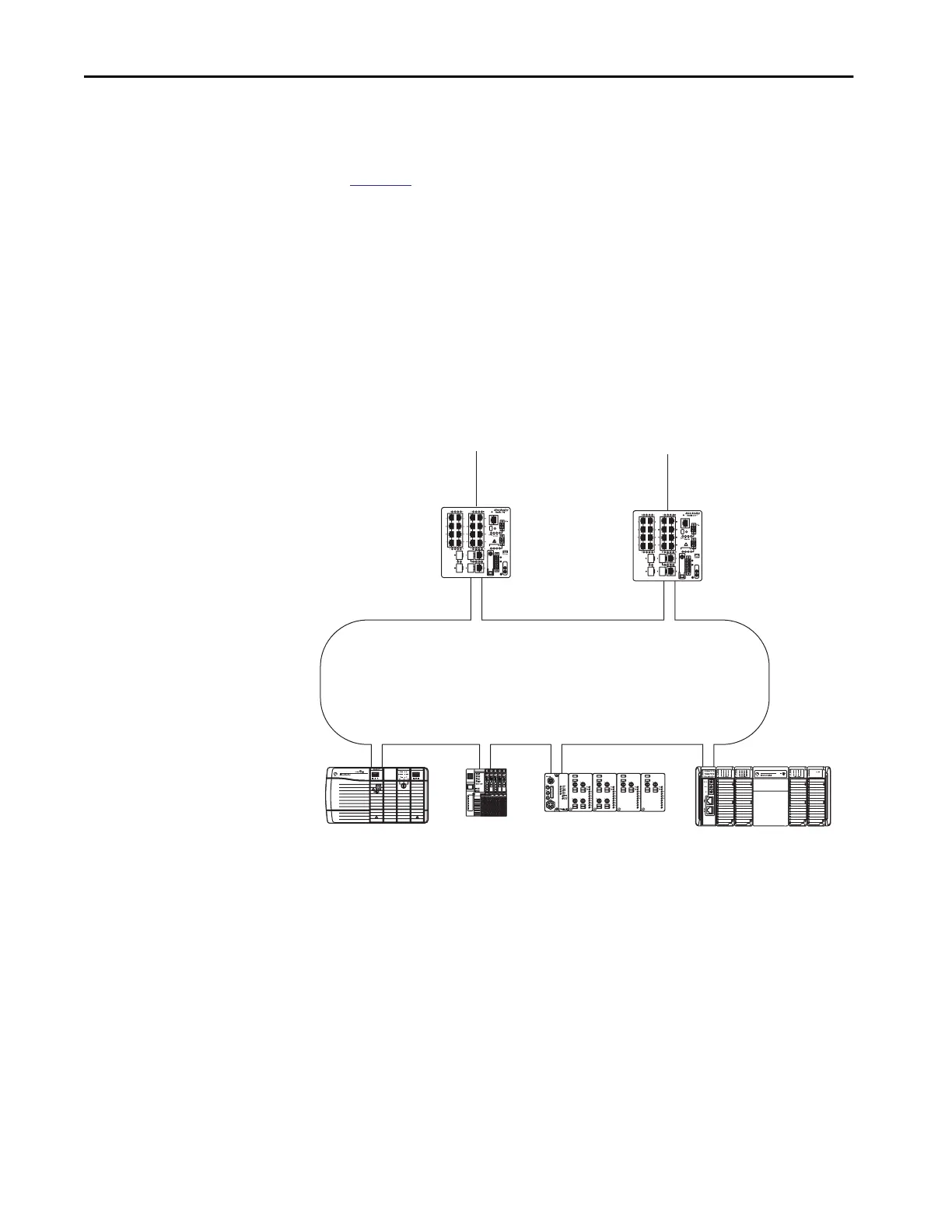

Figure 16 - Ring Supervisor with Redundant Gateway
Com
IN2
Ref
IN1
Alarm
IN1 IN2 OUT
DC+
Pwr A
Express
Setup
Console
DC-
DC+
Pwr B
Com
IN2
Ref
IN1
Alarm
IN1 IN2 OUT
DC+
Pwr A
Express
Setup
Console
DC-
DC+
Pwr B
Stratix 5700 Switch:
• Active Supervisor
• Active Redundant Gateway
Stratix 5700 Switch:
• Backup Supervisor
• Backup Redundant Gateway
Outside Network
Outside Network
Ring Devices Compatible with Redundant Gateway
