Figure 17 shows two Stratix 5700 switches that are configured as ring nodes
with redundant gateway:
• One switch is a ring node and the active redundant gateway.
• The other switch is a ring node and the backup redundant gateway.
In this example, the switch provides redundant gateway functionality, so that
all ring nodes have access to the outside network.

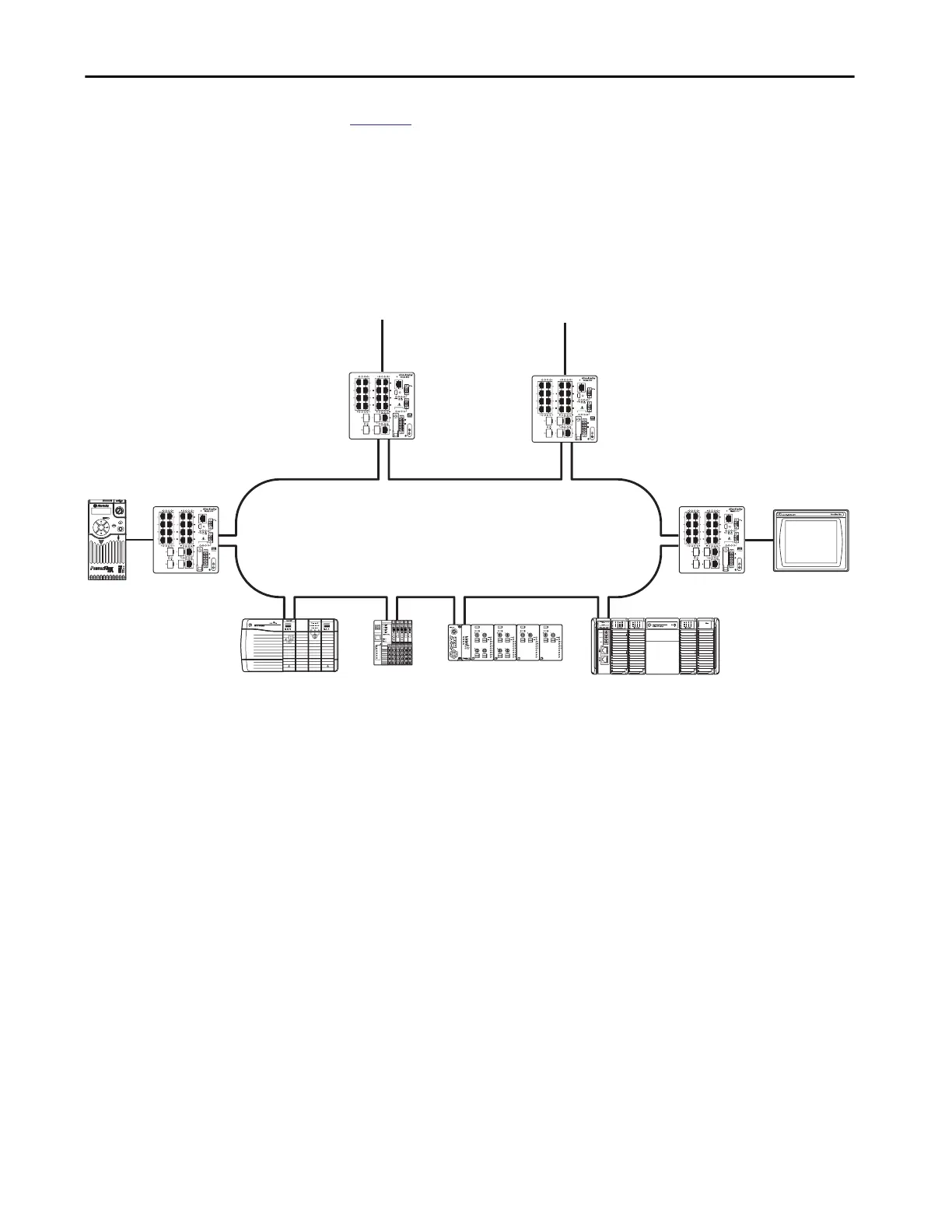

Figure 17 - Ring Node with Redundant Gateway
Com
IN2
Ref
IN1
Alarm
IN1 IN2 OUT
D
C
+
Pwr A
Express
Setup
Console
DC-
DC
+
Pwr B
Com
IN2
Ref
IN1
Alarm
IN1 IN2 OUT
DC+
Pwr A
Express
Setup
Console
DC-
DC+
Pwr B
Com
IN2
Ref
IN1
Alarm
IN1 IN2 OUT
DC+
Pwr A
Express
Setup
Console
DC-
DC+
Pwr B
Com
IN2
Ref
IN1
Alarm
IN1 IN2 OUT
DC+
Pwr A
Express
Setup
Console
DC-
DC+
Pwr B
Esc
Sel
Stratix 5700 Switch:
• Ring Node
• Active Redundant Gateway
Stratix 5700 Switch:
• Ring Node
• Backup Redundant Gateway
Outside Network
Outside Network
Ring Devices Compatible with Redundant Gateway
