Rockwell Automation Publication 1783-UM007G-EN-P - February 2017 383
Monitor the Switch Chapter 8

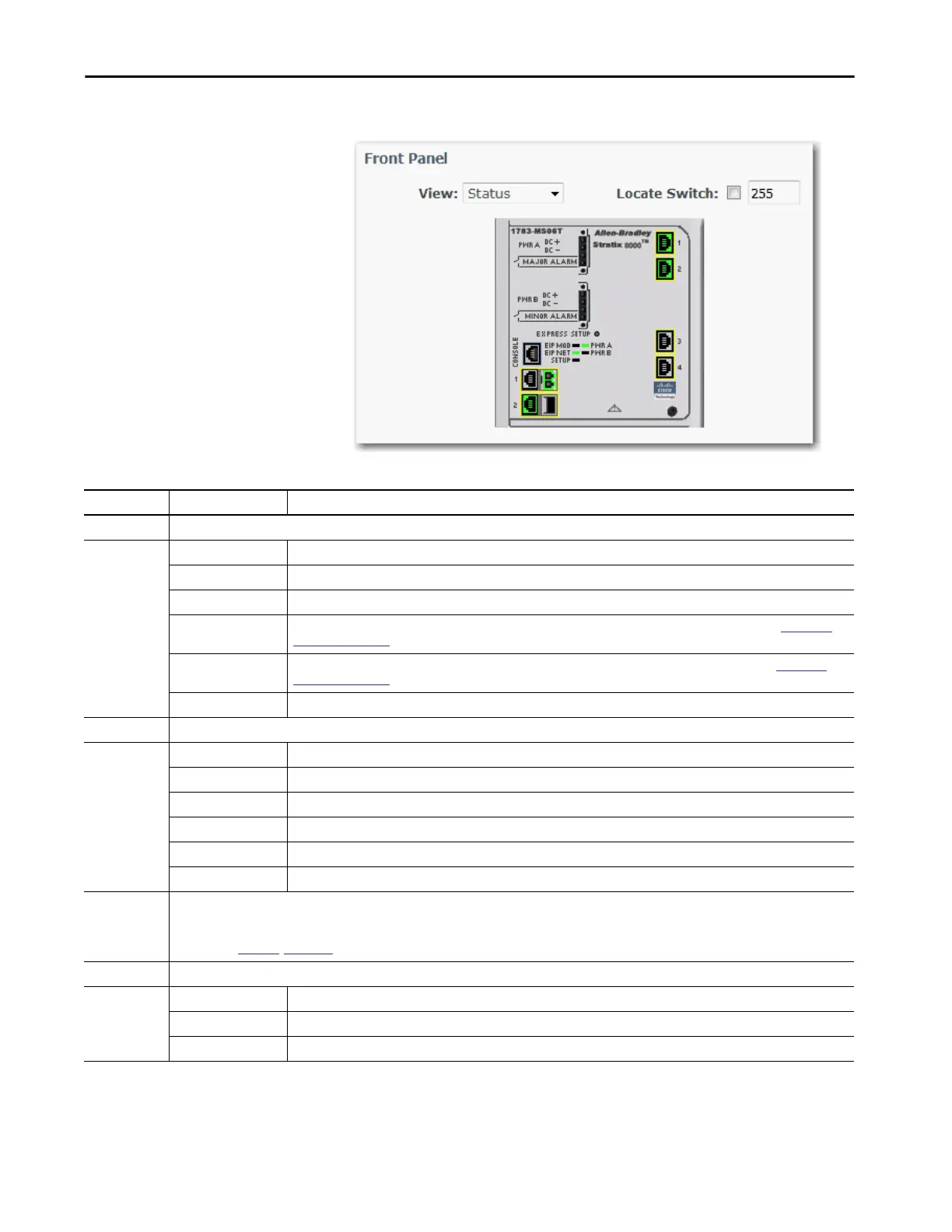

Stratix 8000/8300 Front Panel
Table 101 - Stratix 8000/8300 System Status Indicators
Indicator Status Description
EIP Mod The EIP Mod status indicator shows the status of the switch.
Off Power to the switch is off or is not properly connected.
Solid green The switch is operating properly.
Flashing green The switch is not configured. For example, the switch does not have an IP address configured.
Flashing red The switch has detected a recoverable system fault. Use the system log to see more details about the problem. See
System Log
Messages on page 392.
Solid red The switch has detected a nonrecoverable system. Use the system log to see more details about the problem. See
System Log
Messages on page 392.
Flashing green and red The switch is running its power-on self-test (POST).
EIP Net The EIP Net status indicator shows the network status of the switch.
Off Power to the switch is off or is not properly connected.
Solid green The switch has an established CIP connection to one or more attached devices.
Flashing green The switch has an IP address but the switch does not have an established connection to one or more attached devices.
Flashing red One or more connections to attached devices have timed out.
Solid red The switch has detected that its IP address is already in use by another device in the network.
Flashing green and red The switch is running its power-on self-test (POST).
Setup The Setup status indicator shows the status of the initial setup of the switch.
The behavior of the Setup status indicator varies depending on whether you run single-mode or multi-mode Express Setup. In multi-mode Express Setup, the
behavior varies based on whether you run Short Press, Medium Press, or Long Press mode. For details about the Setup status indicator behavior during Express
Setup, refer to
Chapter 2, Get Started.
Pwr A and Pwr B The Pwr status indicators show the DC power status.
Off Power to the switch is off or is not properly connected.
Solid green Power is present.
Solid red Power to the switch is not present and the power alarm is on.
