CHAPTER 2: INSTALLATION AND SETUP
HF-2500A HIGH FREQUENCY WELD CONTROL
2-8 990-371

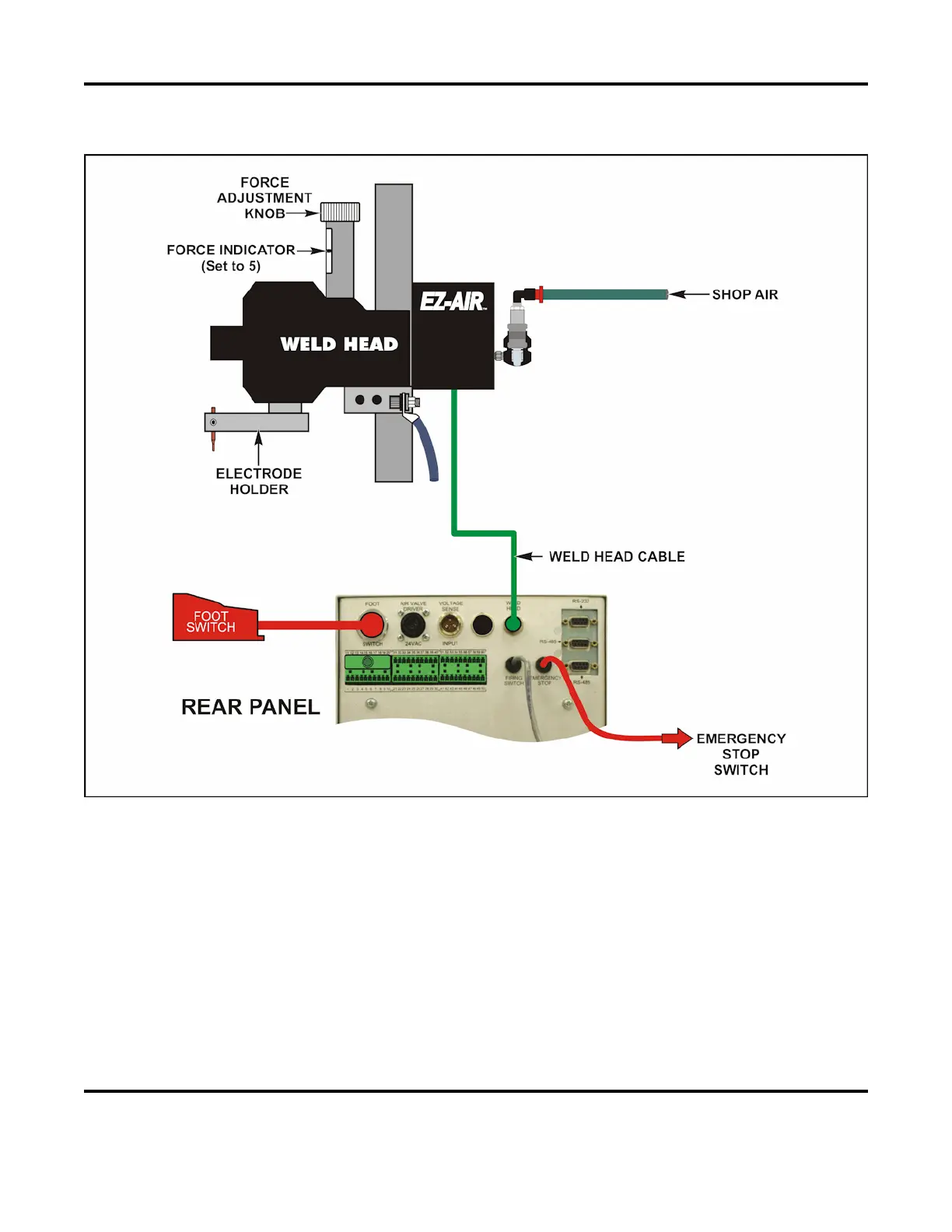

DC EZ-AIR Weld Head Connection
1. Adjust the weld head force adjustment knob to produce 5 units of force, as displayed on the force
indicator index.
2. Connect the weld head firing switch cable connector to the Power Supply firing switch cable
connector.
3. Connect a normally closed, approved, emergency stop switch across the two leads of the operator
emergency stop switch cable. This switch, when operated (open), will immediately stop the weld
cycle and retract the weld head. See Appendix B. Electrical and Data Connections for circuit
details.
4. Connect a Model FS2L or FS1L Foot Switch to the Power Supply FOOT SWITCH connector.
