Amazone DMC 6000-2C - Adjusting the Exact Harrow

Settings
116
Primera BAG0175.3
07.18
8.8 Adjusting the exact harrow

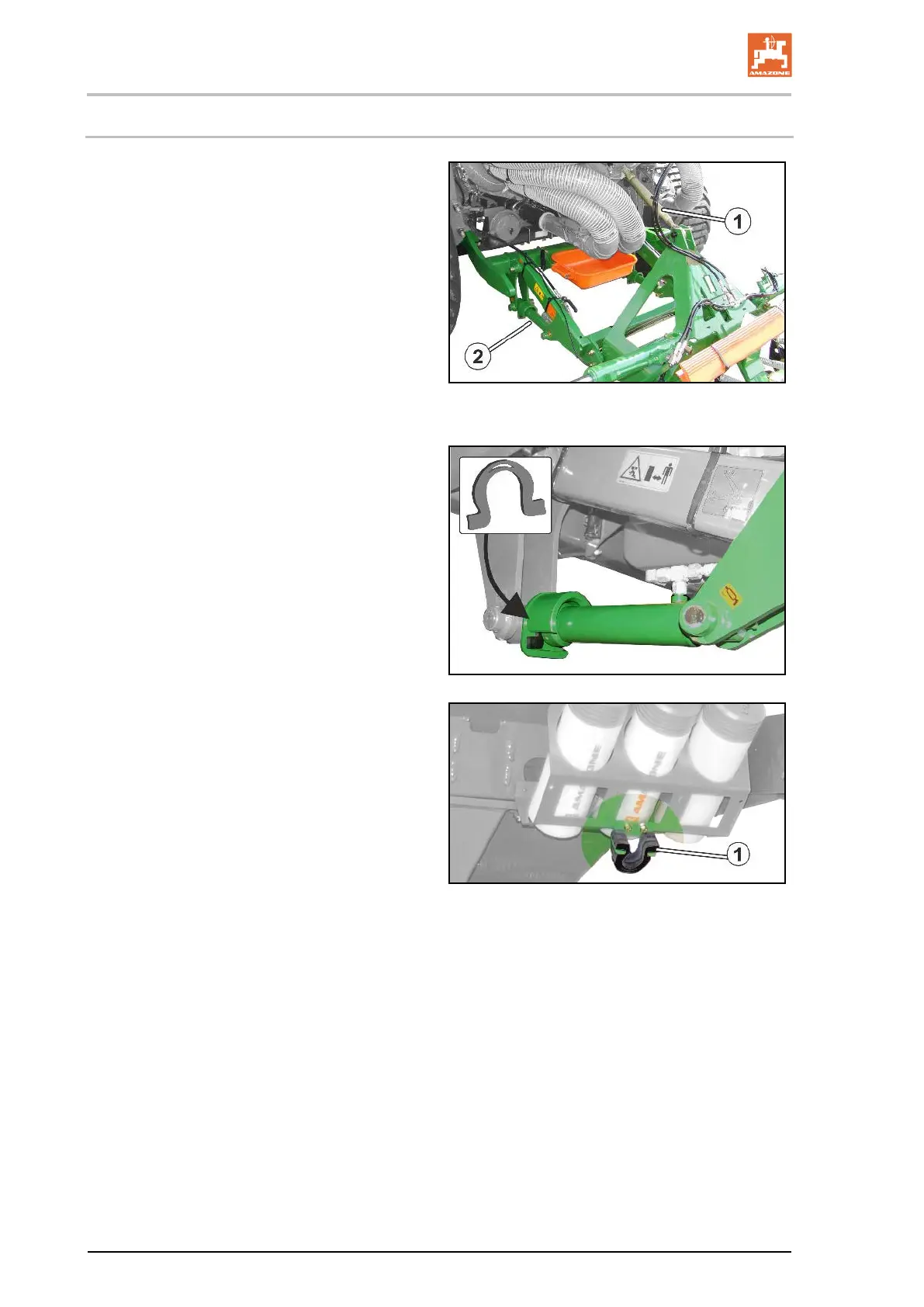

(1) Turnbuckle for tilt adjustment
(2) Spacer elements for depth adjustment (op-
tional)
Tilt adjustment:
1. Move the implement on the field into work-
ing position.
2. Apply the parking brake, switch the tractor
engine off and remove the ignition key.
3. Loosen the lock nut.
4. Adjust the length by turning the turnbuckle.
5. Tighten the lock nuts when the adjustment
is complete.
Fig.
99
Depth adjustment:
1. Activate tractor control unit yellow.
→ Move the implement into headland setting.
2. Use 0 -5 spacer elements on both sides, as
necessary.
Fig. 100
(1) Parking position for spacer elements
Fig. 101
