Primera BAG0175.3
5 Structure and function
The following section provides information on the machine structure
and the functions of the individual components.
5.1 Mode of operation

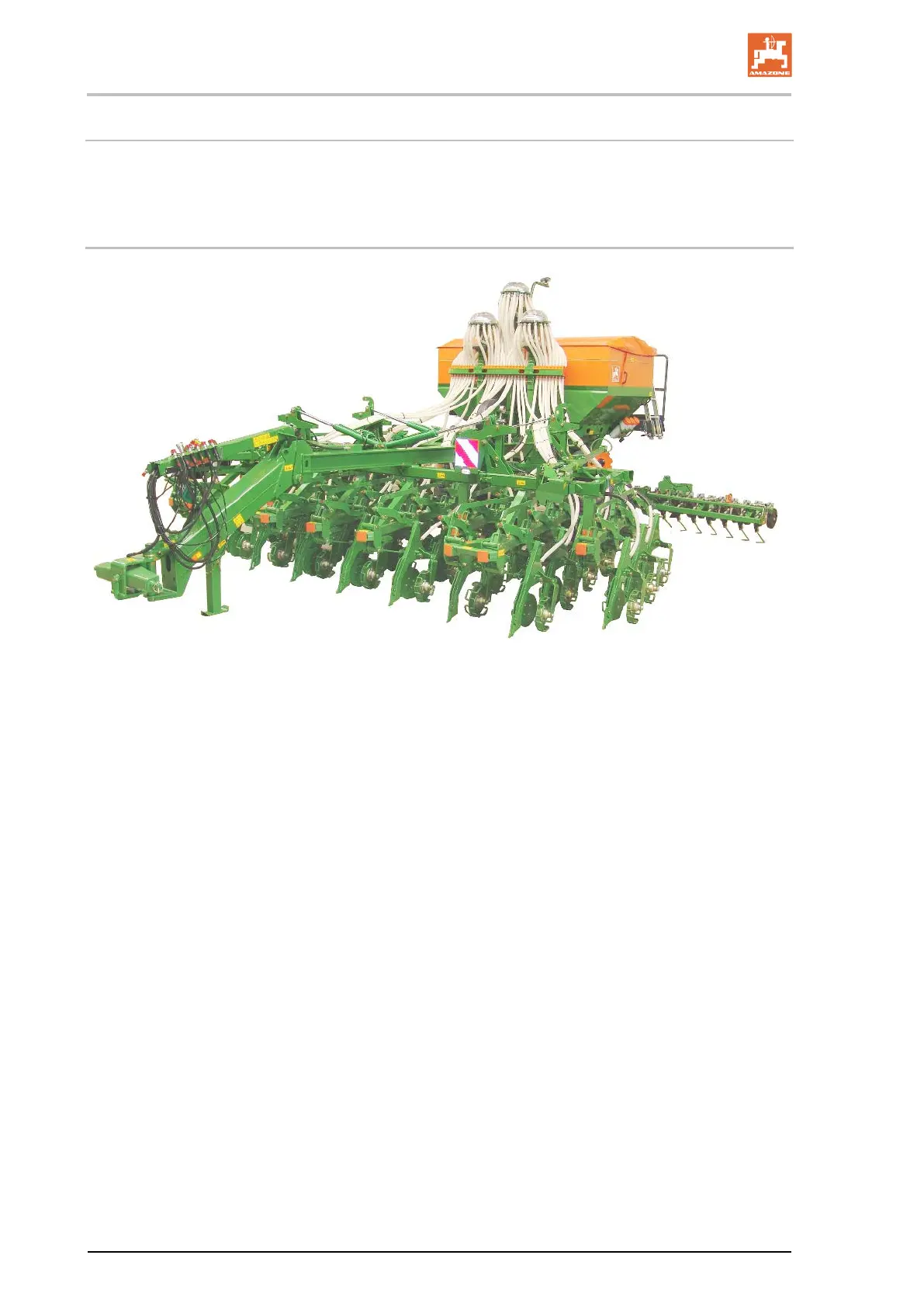

Fig. 10
The DMC facilitates direct sowing via the chisels without prior pro-
cessing of the soil.
At the same time, fertilisation can be carried out (optional)
The seed is carried in the seed hopper. For simultaneous fertilisation,
the hopper is split.
From the dosing unit, which is driven by the drive wheel, the set seed
volume / fertiliser volume enters the air flow created by the blower fan.
The air flow delivers the seed / fertiliser to the distributor head, which
distributes the seed / fertiliser evenly onto the chisel.
The seed is covered by the exact harrow.
The field connection run is marked in the centre of the tractor by the
track markers.
