Amazone DMC 6000-2C - Tramline Marker (Optional)

Structure and function
88
Primera BAG0175.3
07.18

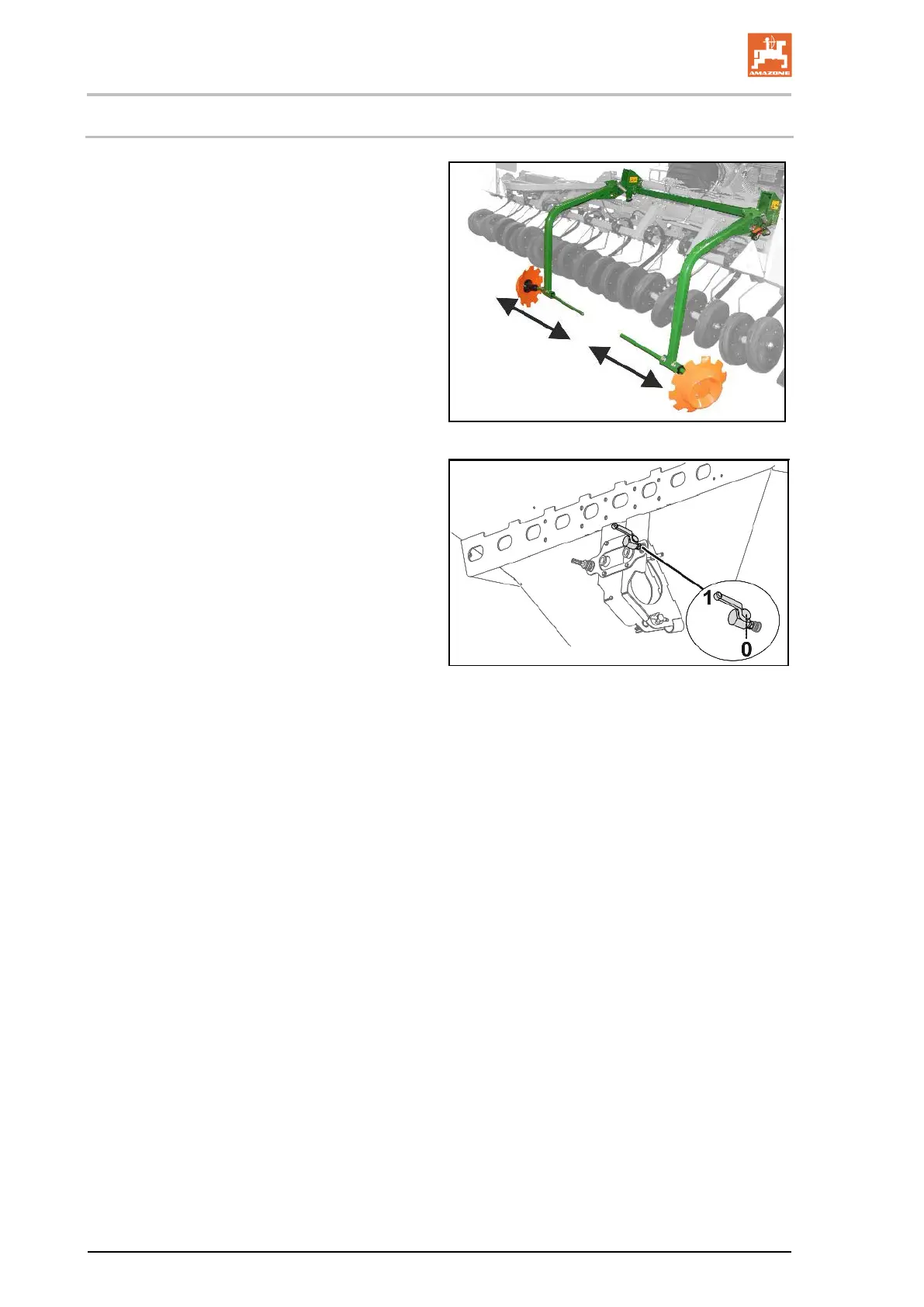

5.30 Tramline marker (optional)
When tramlines are being created, the track
discs lower automatically and mark the tramline
that has just been created. This makes the tram-
lines visible before the seed has germinated.
Fig.
75
The track discs are raised hydraulically if no
tramline is being created.
• The track discs can be moved to adapt to
the track width.
• The intensity of the track discs can be ad-
justed by turning.
Tramline marker stop tap
• Position 0: transport position,
decommissioning (the lifted tramline marker
must be locked)
• Position 1: working position
Fig.
76
