Cleaning, maintenance and repairs
Primera
BAG0175.3 07.18
155
12.11.1 Adjusting the track (activate or deactivate the sliders)
The track of the tramline increases if the number of tramline coulters
arranged next to each other increases.
Six tramline coulters can be connected to one distributor head.
The sliders close the feed lines to the tramline coulters.
Deactivate the sliders (Fig. 145/2) when they are not used. Deactivat-
ed sliders do not close the feed lines to the tramline coulters.
Always activate or deactivate pairs of sliders positioned opposite each
other on the base plate.
WARNING
The distributor head is located at the centre of the machine.
Securing the tractor / machine against unintentional start-
up and
rolling away
Before approaching, clean the path to the distributor head and
the area of the distributor head (danger of slippage).
There is the risk of an accident on the path to the distributor
head and in the area of the distributor head.

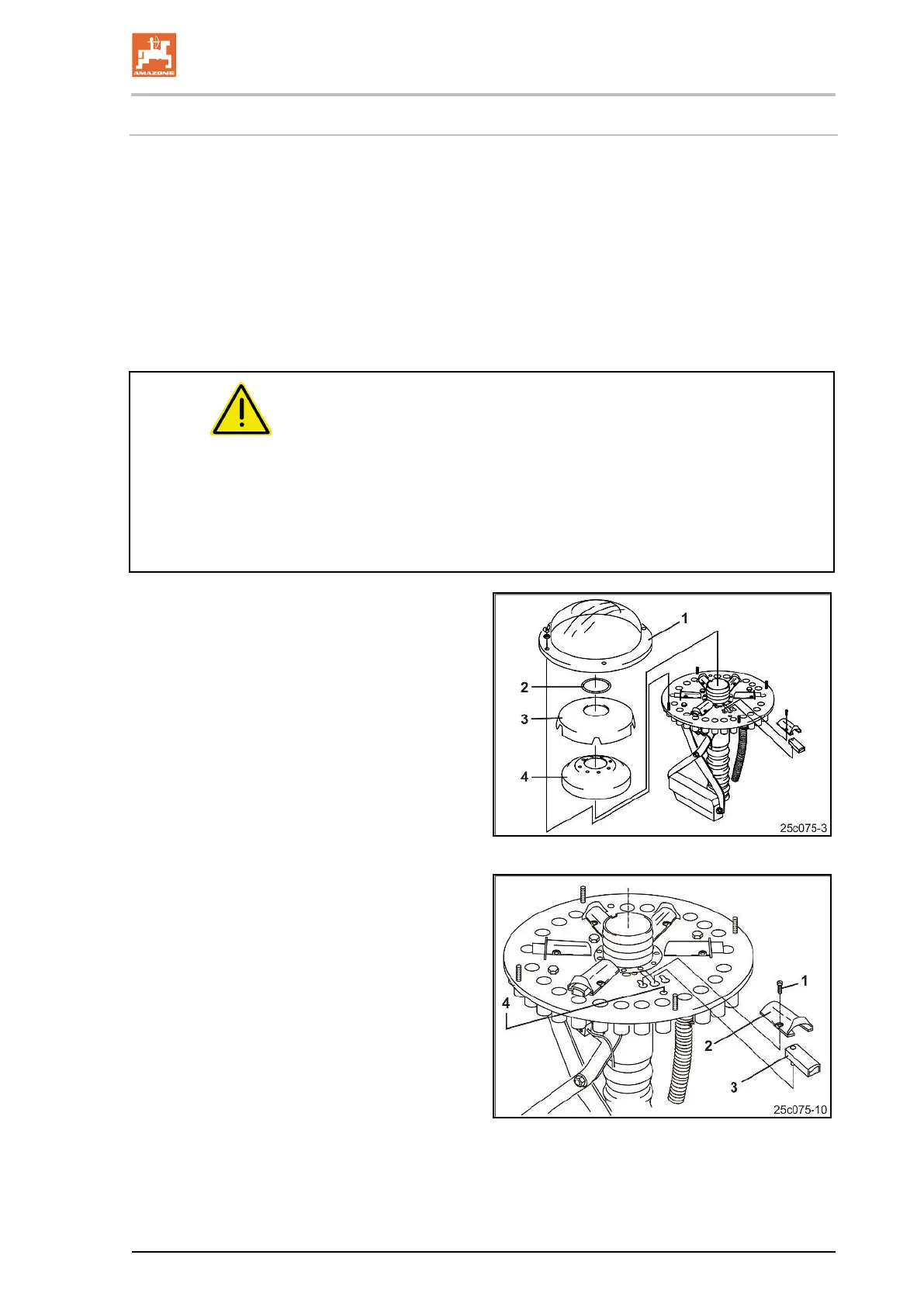

Activating or deactivating sliders:
1. Remove the outer distributor cover (1).
2. Remove the ring (2).
3. Remove the inner distributor cover (3).
4. Remove the foam insert (4).
Fig.
133
5. Slacken the screws (1).
6. Remove the slider tunnel (2).
Activating the sliders:
7. The slider (3) is in the guide, as shown in
the diagram.
Deactivating the sliders:
8. Turn the sliders around (3) and push them
into the drill hole (4).
9. Screw the slider tunnel (2) onto the base
plate.
Fig.
134
