BAG0175.3 07.18

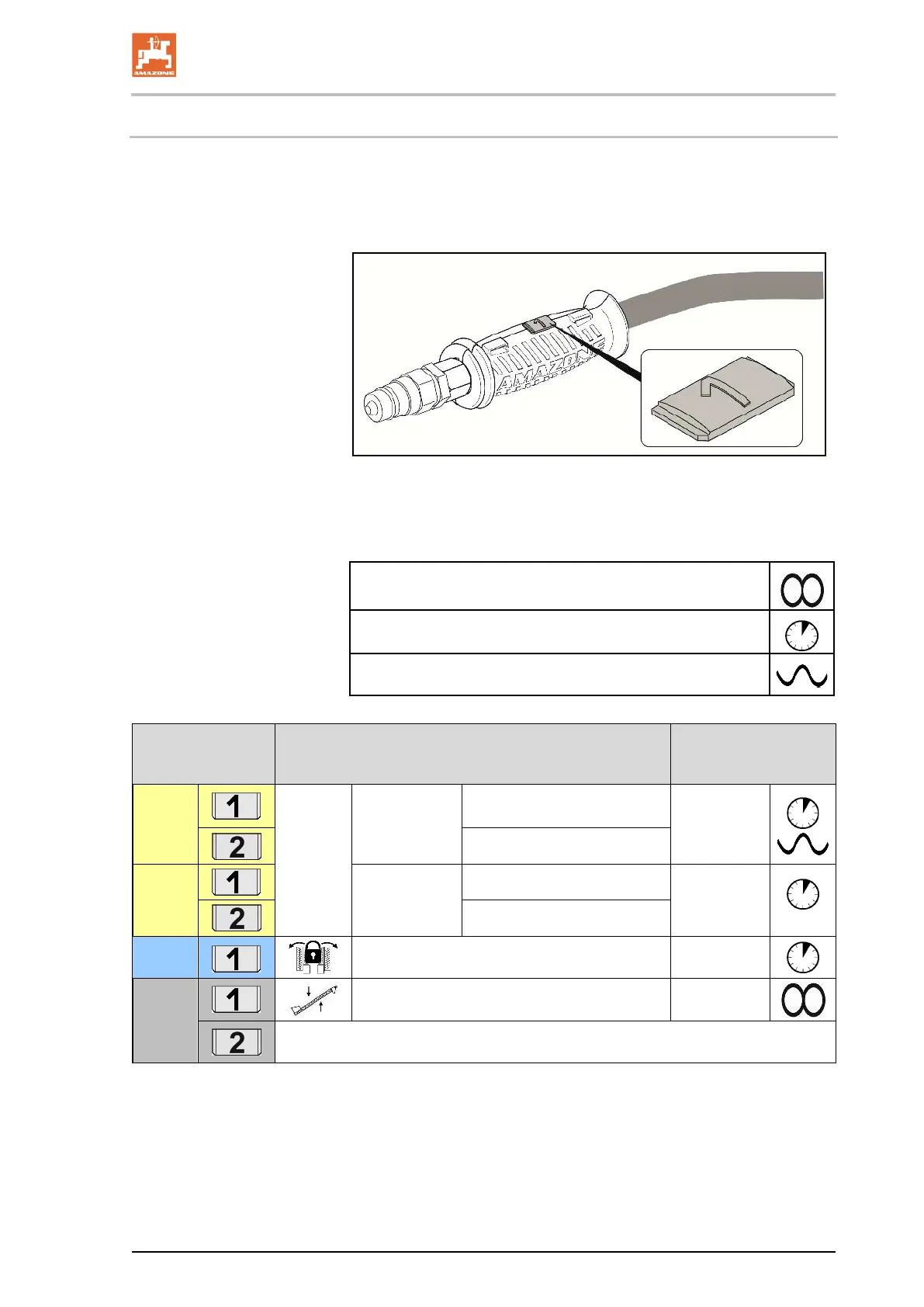

5.2 Hydraulic connections
• All hydraulic hose lines are equipped with grips.
Coloured markings with a code number or code letter have been
applied to the gripping sections in order to assign the respective
hydraulic function to the pressure line of a tractor control unit!
Films are stuck on the implement for the markings that illustrate
the respective hydraulic function.
• The tractor control unit must be used in different types of activa-
tion, depending on the hydraulic function.
Latched, for a permanent oil circulation
Tentative, activate until the action is executed
Float position, free oil flow in the control unit
Folding using
tractor control
Function Hose identification
yellow
Pre-
selection
via
switch
tap
Folding
fold out
Double acting
fold in
yellow
Working positi-
on
Lower / working position
Double acting
raise
blue
Unlock section folding
single acting
natural
Filling auger
Pressure-free return flow
