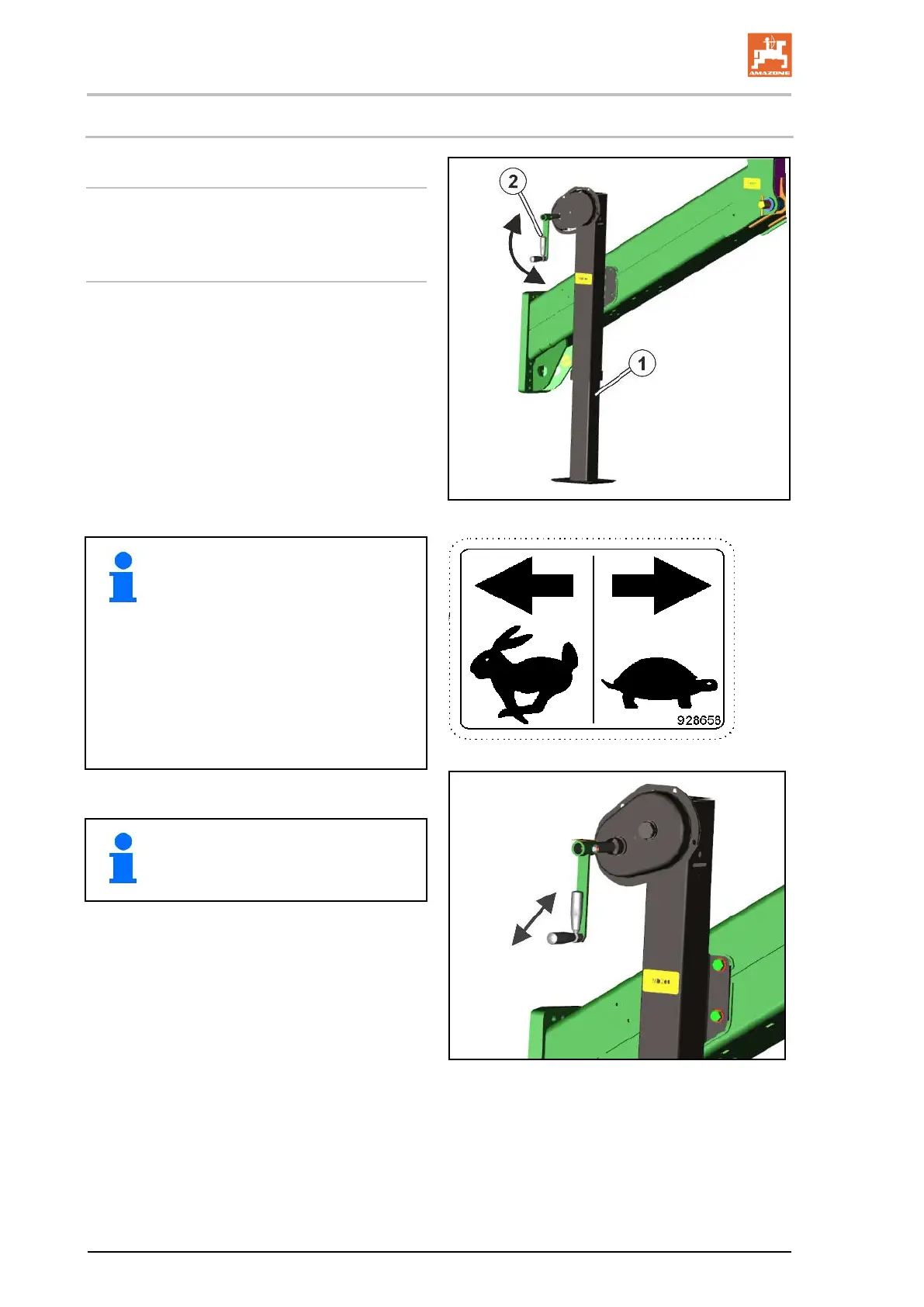

5.23 Jack for the drawbar eye / ball coupling
Lifting the jack after coupling
Raise the jack (Att. 64/1) using the hand crank
(Att. 64/2) up to the stop.
Lowering the jack before uncoupling
Lower the jack (Att. 64/1) using the hand crank
(Att. 64/2) up to the stop until the trailer coupling
is relieved.
Fig.
60
The jack crank has a slow and a fast
gear (Att. 65).
→ Unloaded: use the fast gear!
→ Loaded: use the slow gear;
• Pull out the hand crank –
Fast gear for the jack.
• Push in the hand crank –
Slow gear for the jack (high
loads).
Fig.
61
Fig.
62
After actuating the crank, swivel up
the hand lever as shown in Att. 66!
