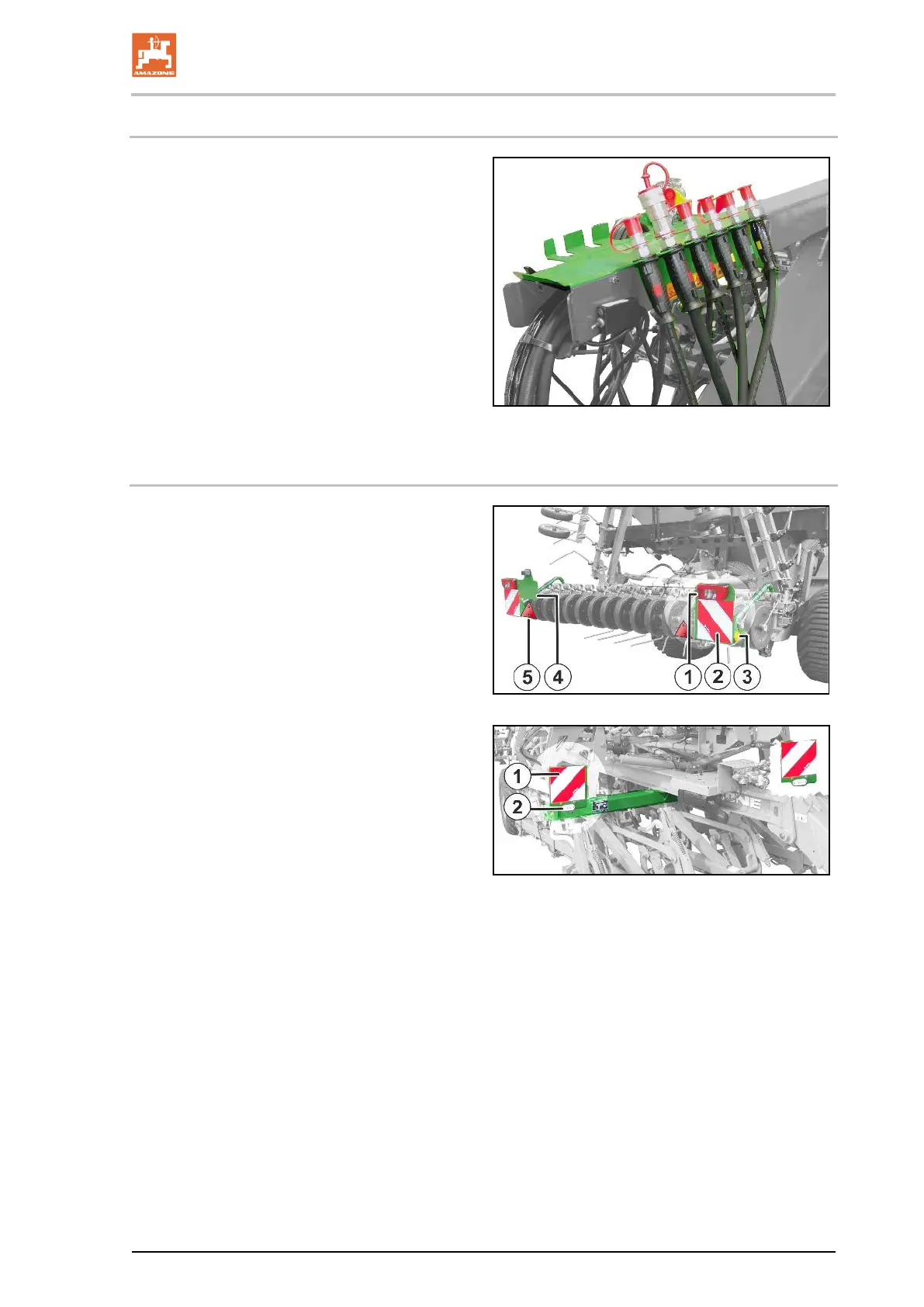

4.3 Overview – Supply lines between the tractor and the machine
Fig. 6, supply hoses in parking position:
• Hydraulic hose lines
• Electric cable for lighting
• Machine cable with machine connector for
connection to on-board computer.
• Connection to hydraulic brake
• Pneumatic brake system
ο Brake line with coupling head (yellow)
ο Supply line with coupling head (red)
Fig.
6
4.4 Transportation equipment
(1) 2 rear lights, 2 brake lights, 2 turn indicators
(2) 2 warning signs (square)
(3) Reflectors, yellow
(at side with max. 3 m spacing)
(4) registration plate holder with lighting
(5) 2 red reflectors (triangular)
Fig.
7
(1) 2 warning signs (square)
(2) 2 limiting lights
Fig.
8
