Amazone DMC 6000-2C - Vario Gearbox; Dosing Unit

Structure and function
54
Primera BAG0175.3
07.18
5.7 Vario gearbox

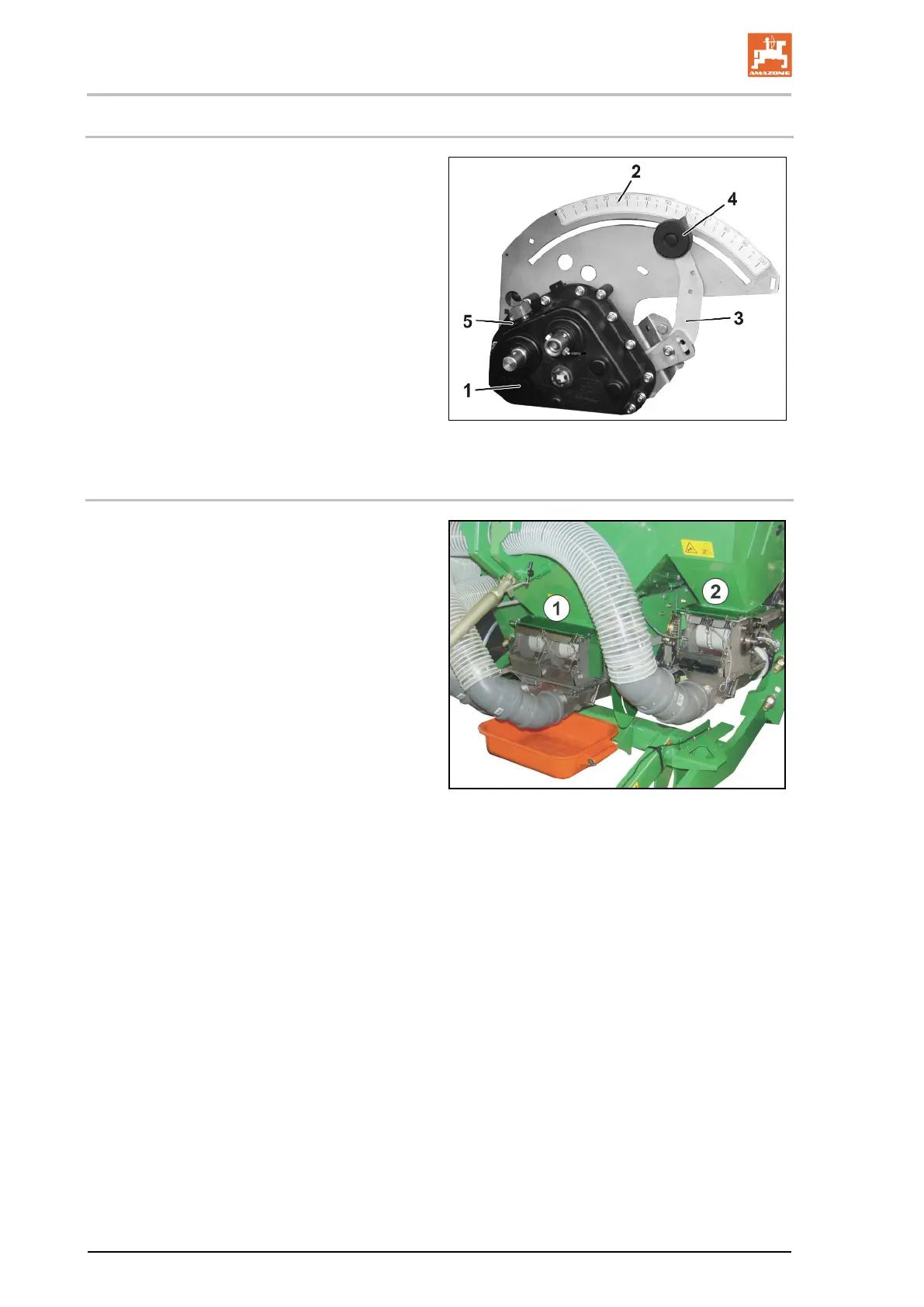

(1) Vario gearbox
(2) Adjustment scale
(3) Adjusting lever with pointer
(4) Locking button
(5) Oil level inspection glass
To adjust the spread rate, adjust the setting lev-
er.
The higher the scale value, the greater the
spread rate.
The spread rate is infinitely adjustable and is
adjusted using the calibration test.
Fig.
23
5.8 Dosing unit
The dosing units dose the volume set at the
Vario gearbox into the injector.
The machine has:
(1) Two seed dosing units
(2) A fertiliser dosing unit, optional
Each dosing unit is fitted with a shutter slide in
order to
• empty the dosing unit
• and replace the dosing rollers when the
hopper is full.
The metering roller ground wheel is being driven.
The seed falls into the injector sluice and is di-
rected by the air flow to the distributor head and
then to the coulters.
Fig.
24
