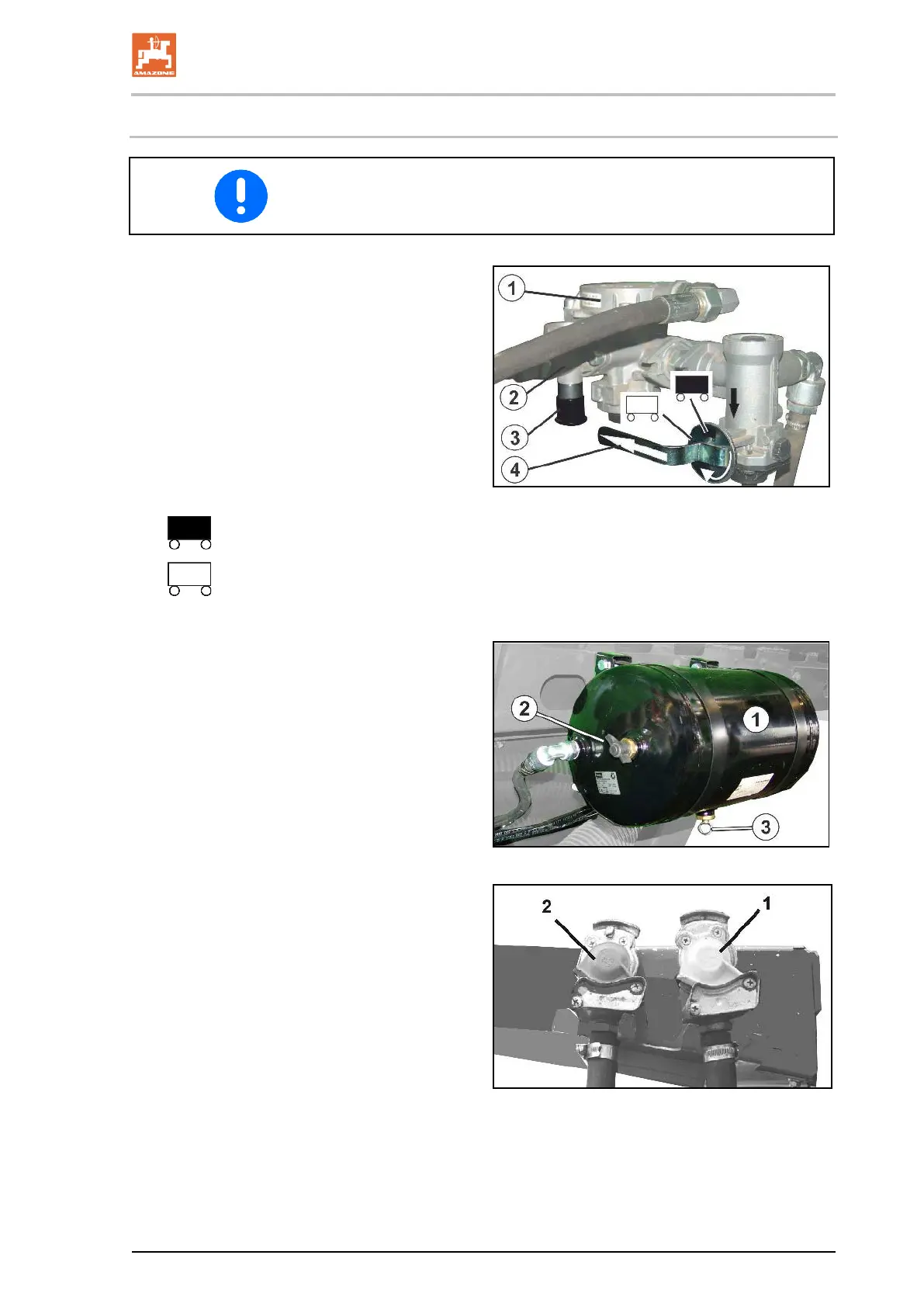

5.4 Dual-circuit service brake system
Compliance with the maintenance intervals is essential for the correct
function of the two-line operating brake system.
(1) Trailer brake valve
(2) Release valve with actuation button (3)
(3) Actuation button;
○ Push in up to the stop and release the
service brake system, e.g. to manoeu-
vre the uncoupled implement.
○ Pull out up to the stop and the imple-
ment is braked again by the supply
pressure coming from the air reservoir.
(4) Hand lever for manual adjustment of the
braking force.
Filled implement
Empty implement
Fig.
15
(1) Compressed air tank
(2) Test connection for pressure gauge
(3) Drain valve
Fig.
16
(1) Brake line coupling head (yellow)
(2) Supply line coupling head (red)
Fig.
17
