Cleaning the line filter
Perform work in an unpressurized state.
Secure the implement against rolling away.
1. Remove the bolt locking compound by
hammering and remove the bolts (1).
2. Unscrew the bolts (2) by a few turns.
3. Lift the plate (3) over the rubber seal (4)
and turn to the side.
The unit is under spring tension.
4. Remove the rubber seal.

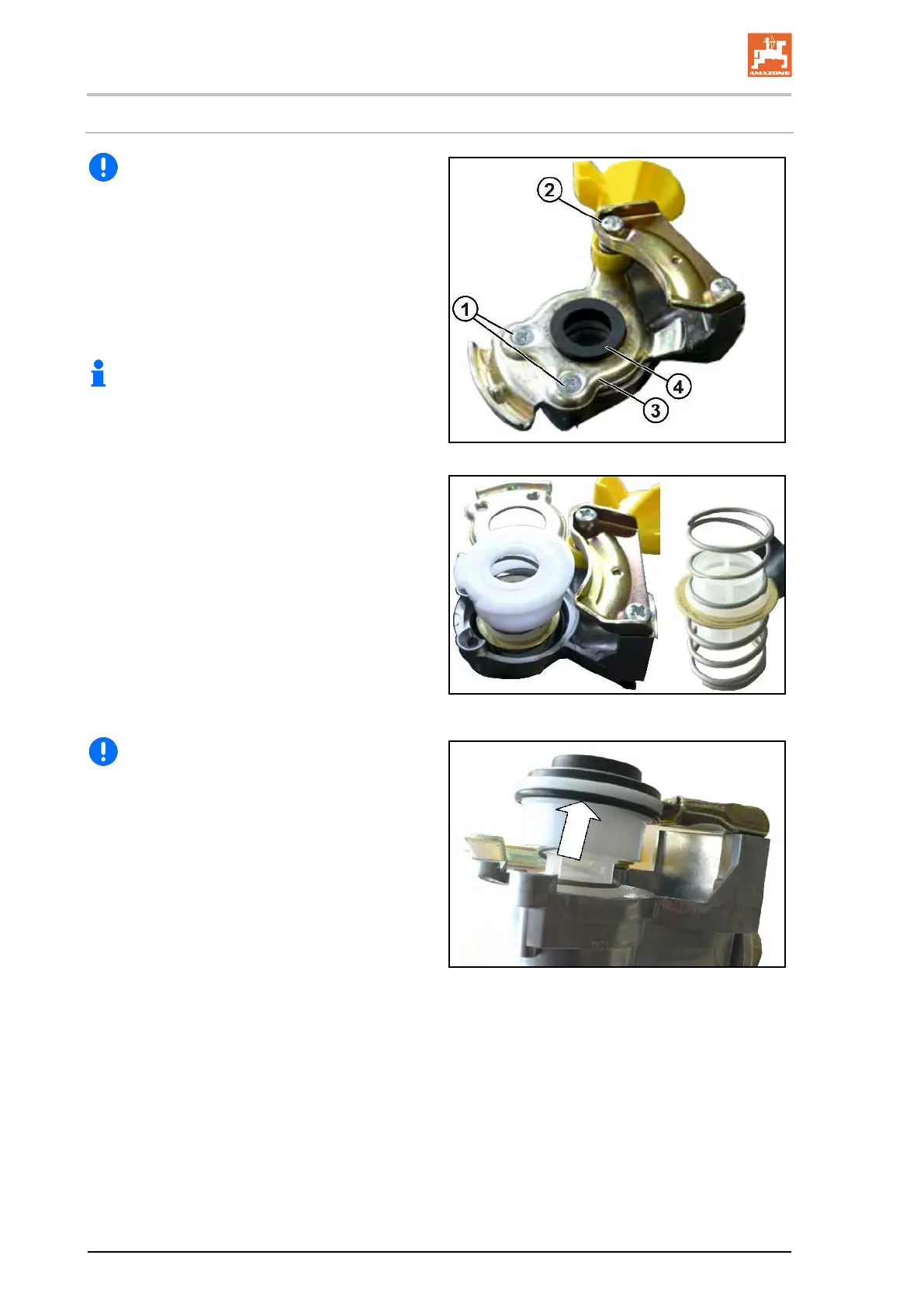

Fig.
123
5. Clean and grease the sealing surfaces, O-
ring and filter.
→ Replace the rubber seal if necessary.
Fig.
124
Correctly position the O-ring on the plastic
ring.
6. Reassemble in the reverse sequence.
• Bolt tightening torque (1): 2.5 Nm
• Bolt tightening torque (2): 7 Nm
Fig.
125
