4.9.7.1 Calibration of tilt adjustment
Hint!
Pre-condition for the flawless functioning of the electric or hy-
draulic tilt adjustment is the correct calibration of the tilt adjust-
ment (tilt adjustment calibration).
Calibrate the tilt adjustment
x at the first operation.
x in case of deviations of the horizontal sprayer boom align-
ment shown in the display and the actual sprayer boom
alignment.
1. Move into the horizontal position. For this
actuate the functional field
or
and align the sprayer boom in horizontal
position to the ground.
2. Determine the horizontal position. For this
actuate functional field .
→ The horizontal position is determined.
3. Move to the right hand stop. For this actu-
ate the functional field
until the right
hand spacer slightly touches the ground.
4. Determine right hand stop. For this actuate
functional field
.
→ Right hand stop is determined.
5. Move to the left hand stop. For this actuate
the functional field
until the left hand
spacer slightly touches the ground.
6. Determine the left hand stop. For this actu-
ate functional field
.
→ The left hand Stop is determined.

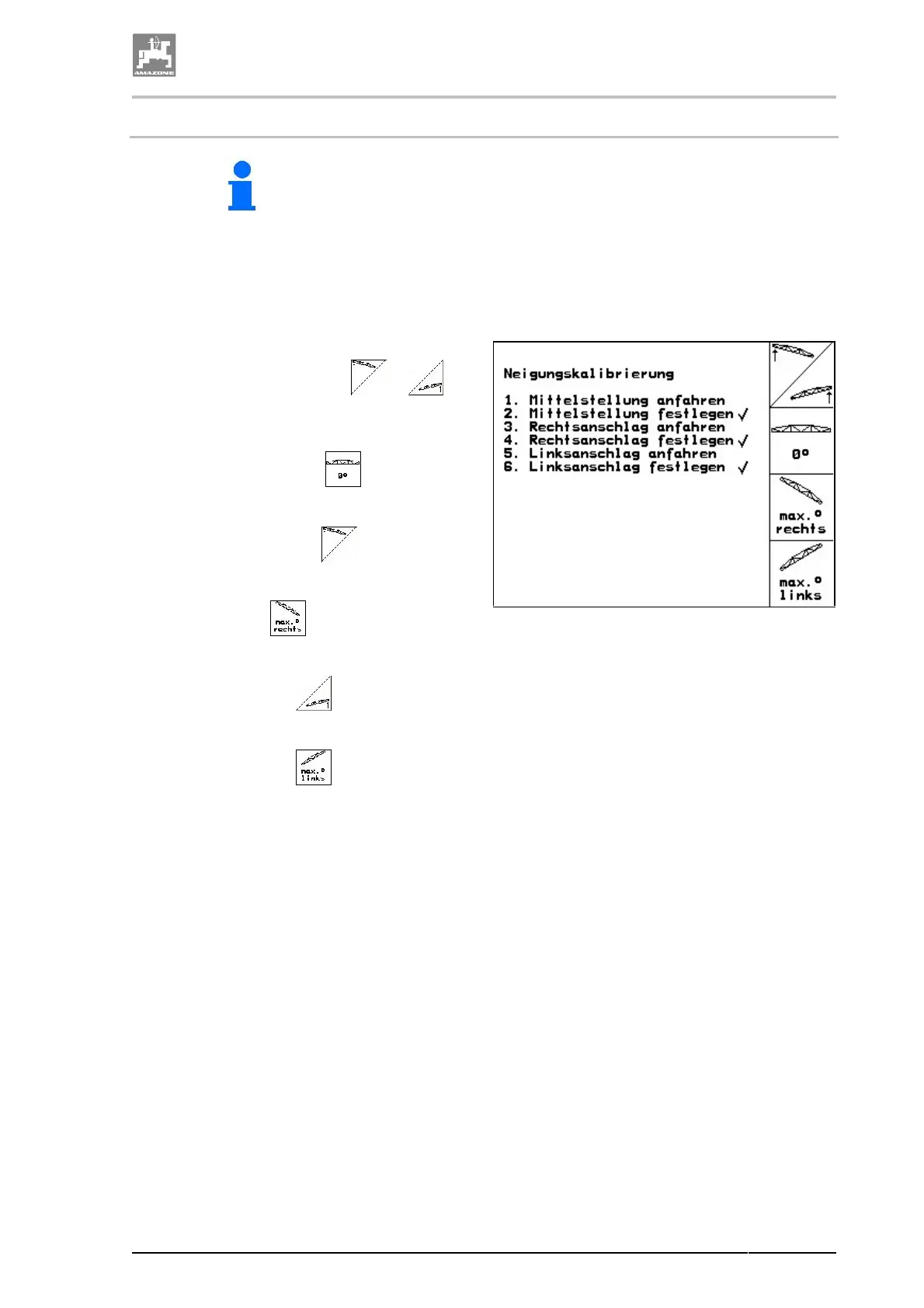

Fig. 46
